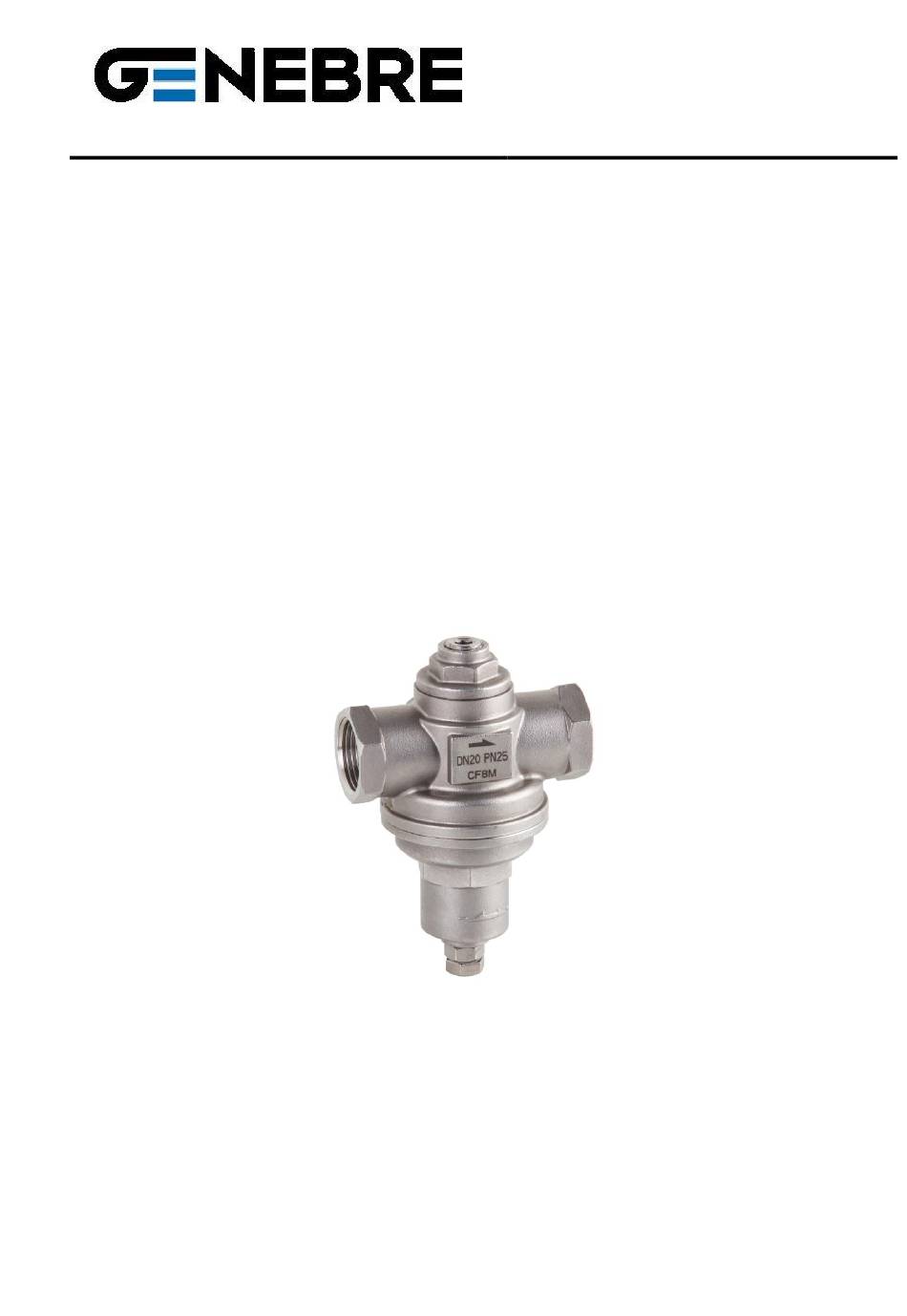

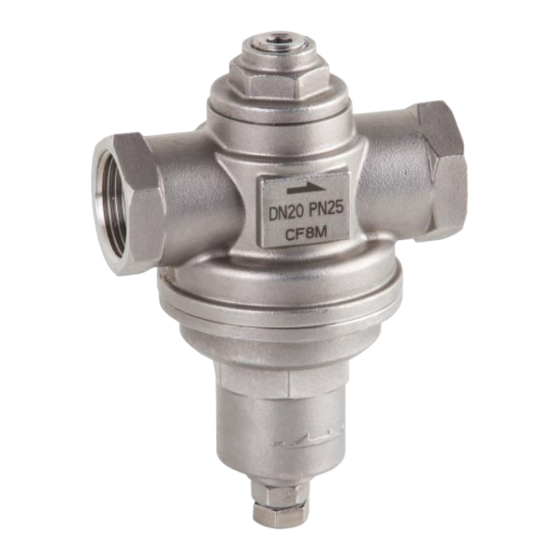

- Page 1 Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es INSTALLATION, OPERATION AND MAINTENANCE MANUAL Pressure Reducing Valve with threaded ends GENEBRE Ref.: 2272 GENEBRE S.A. LAST UPDATE: 30/03/2020 UPDATE NUMBER: 0...
- Page 2 Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es INSTRUCTIONS FOR INSTALLATION, OPERATION & MAINTENANCE MANUAL 1. Product description ............... 3 2. Transport and Storage conditions ……………........3 3. Exploded view ..................4 4.
- Page 3 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es 1. Product description. Genebre, S.A. offers a wide range of valves designed and assembled to handwheel and drive fluids in industrial procedures. The compatibility of materials used to build the valves (see technical specifications) and the application of valves to the different industrial processes is at user's risk.
- Page 4 Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es 3) Exploded view Nº Name Material Surface Treatment Body Stainless Steel 1.4408 Pickling + Blasting Bottom cover Stainless Steel 1.4408 Pickling + Blasting Top cover Stainless Steel 1.4408...
- Page 5 Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es 4. Installation instructions 4.1) Preparation Remove any material remains of the valve wrapping. Serious problems may arise with the installation of a valve in a dirty pipe.
- Page 6 Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es 5. Operating instructions 5.1) Usage Valve materials have to be fully compatible with the fluid circulating through the valve. Otherwise, valve could be seriously damaged.
- Page 7 Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es Zona 1: Cavitation zone: Avoid working within this area. Zona 2: Critical zone: It is recommended not working within this pressure range. Zona 3: Working zone: The pressure reducing valve works in good conditions without cavitation.
- Page 8 Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es Before installing new valve, check if it meets the requirements of the valve being replaced 8. Hygiene and Safety Instructions 8.1) Fluid passing through a valve or accessory can be corrosive, toxic, flammable or pollutant.
