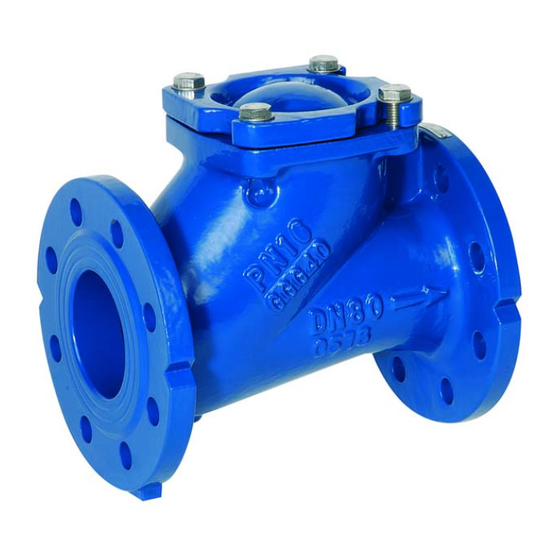

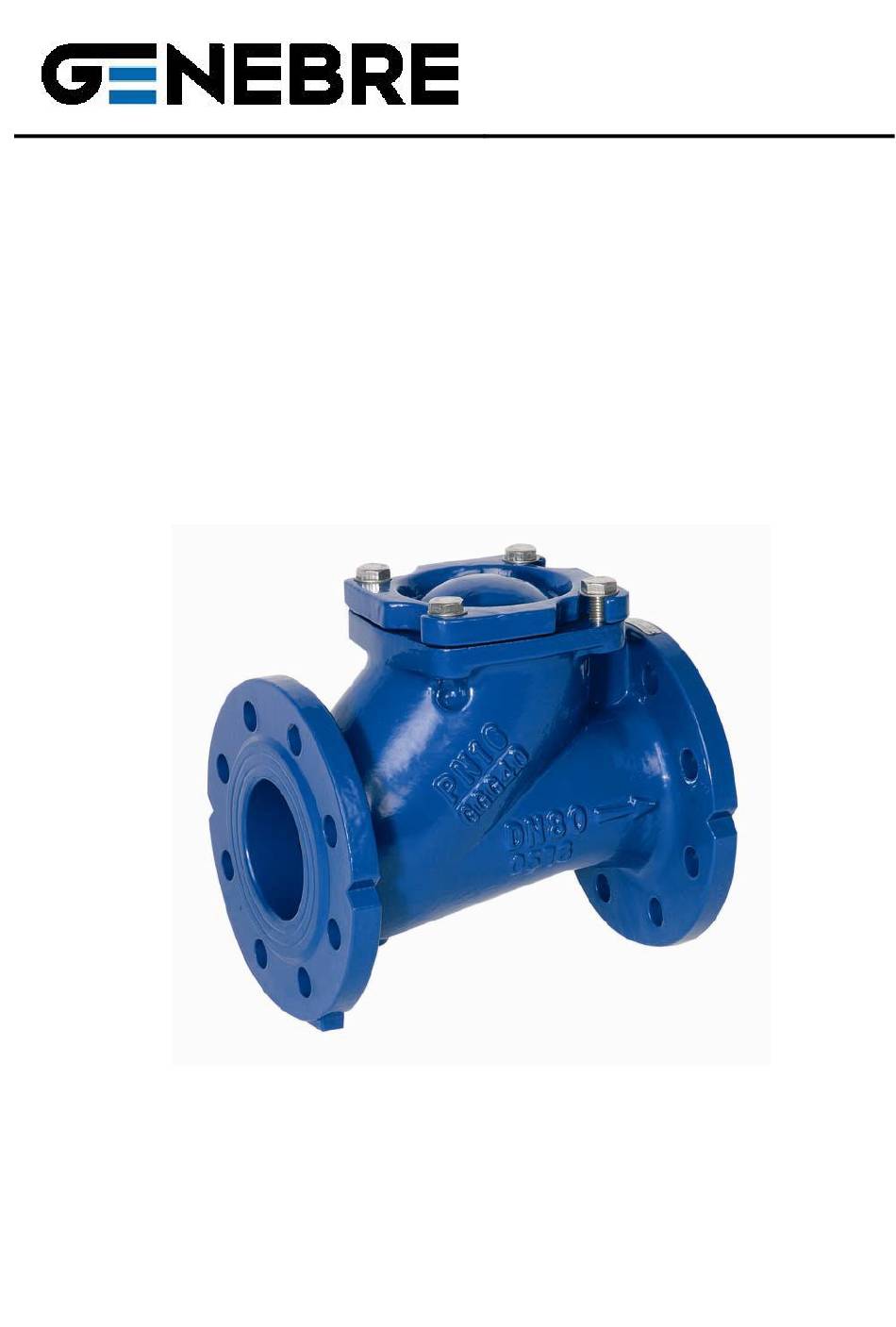

- Page 1 Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es INSTALLATION, OPERATION AND MAINTENANCE MANUAL Check valve ball flanges GENEBRE Reference: 2453 / 2453P GENEBRE S.A. LAST UPDATE: 23/07/2010 UPDATE NUMBER: 0...
- Page 2 Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es Installation, operation and maintenance instructions 1. Breakdown drawing......................3 1.1) List of components......................3 2. Storage ..........................4 3. Installation instructions ......................4 3.1) Preparation ........................4 3.2) Assembling ........................4...
- Page 3 Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es 1) Breakdown drawing. 1.1) List of components Position Description Quant. Material Finishing BODY GGG-40 Epoxi Aluminium+NBR (2"-6") BALL Stainless Steel+NBR (8"-10") COVER GGG-40...
- Page 4 Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es 2) Storage In case valve is not immediately installed, it is recommended to keep it inside the included protective wrapping to avoid damages or dirt accumulation.The wrap must not be removed until valve is to be installed.
- Page 5 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es IMPORTANT: - Check ball valve by Genebre, S.A. (art. 2453) is designed to be assembled between flanges DIN PN16. - Check ball valve by Genebre, S.A. (art. 2453P) is designed to be assembled between flanges DIN PN10.
- Page 6 In this particular case, GENEBRE, S.A. has replacement balls (pos. 2). However, it may occur that (for example in an area difficult to access), due to financial reasons, it is not recommended to repair the valve but directly replace it.
- Page 7 Reinstall the valve between flanges. See Installation instructions on page 4. 7.) Pressure for opening Check ball valve by GENEBRE, S.A. (art.2453/ art.2453P) has been designed to work with minimal operational pressures (to obtain more information, please consult the technical specifications).
