Summary of Contents for Genebre 2231

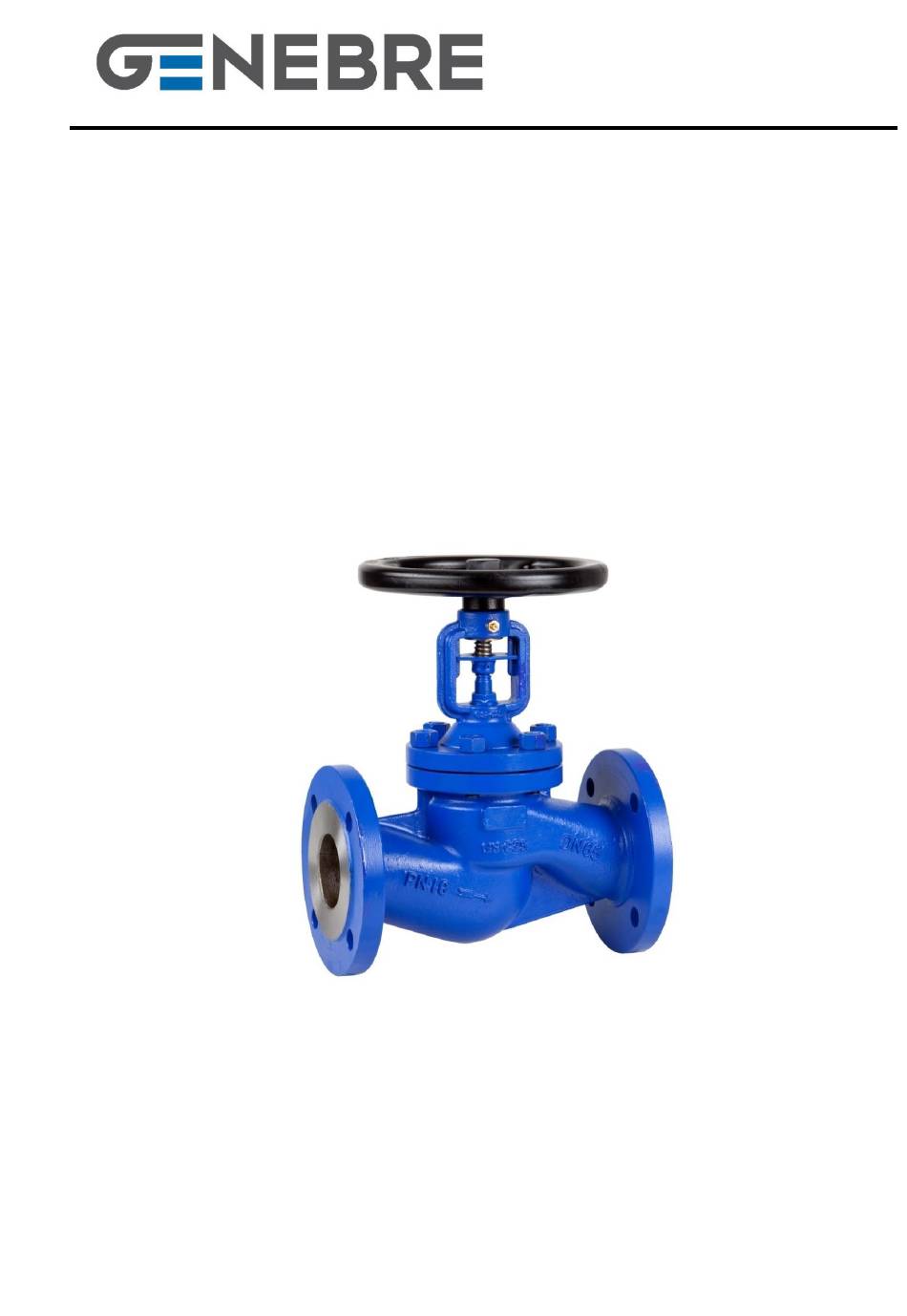

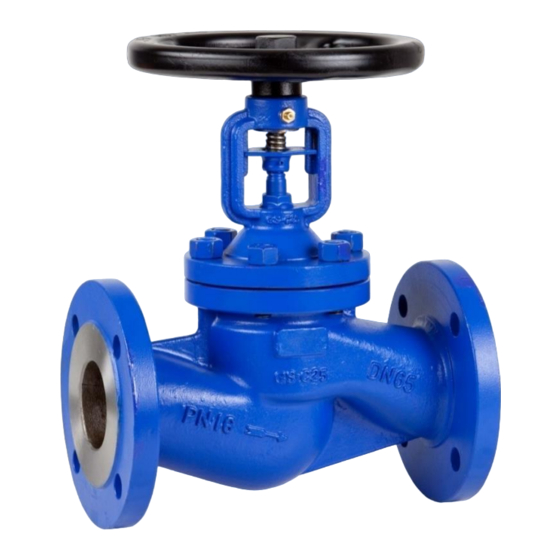

- Page 1 Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es INSTALLATION, OPERATION AND MAINTENANCE MANUAL Stop Valve with Bellows Seal Flanged ends Ref. GENEBRE: 2231 GENEBRE S.A. LAST UPDATE: 09/10/2020 UPDATE NUMBER: 6...
-
Page 2: Table Of Contents
Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es Installation, operation and maintenance instructions 1. Product description ................3 2. Transport and Storage conditions ............3 3. Exploded drawing ................... 4 …….............. 5 4. -
Page 3: Product Description
08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es 1. Product description. Genebre, S.A. offers a wide range of valves designed and assembled to handwheel and drive fluids in industrial procedures. The compatibility of materials used to build the valves (see technical specifications) and the application of valves to the different industrial processes is at user's risk. -
Page 4: Exploded Drawing
Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es User is responsible for the safe use of these products, according to present instructions for use and specific technical documentation of the device. -
Page 5: Installation Instructions
Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es Surface Spare Nº Name Material Treatment Part Code ----- Body Carbon Steel 1.0619 Painting ----- Disc Carbon Steel 1.0460 + 13Cr ------ Stainless Steel AISI 410... -
Page 6: Installation Of Valves With Flanged Ends
Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es In case of vibrations in the pipe it is strongly recommended to mount anti-vibration elements to absorb them. Otherwise, the life of the product could be drastically reduced 4.2) Installation of valves with flanged ends... -
Page 7: Operating Instructions
5. Operating instructions 5.1) Usage GENEBRE valves provide a leakproof lock when used adjusted to the pressure and temperature values for which they have been designed. Valve materials have to be fully compatible with the fluid circulating through the valve. -
Page 8: Reparation Instructions
Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es 6.3) Verify possible leaks through the line (due to closure); this defect is probably caused by deposition of impurities between the disc or needle and the seat, transported by the fluid. - Page 9 Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es f. Remove the Stem (part.13), bellow (part.4) and Disc (part.2) assembly of the Bonnet (part.8). g. Take out the pin (part.3) and remove the Disc (part.2) of the stem (part.13).
-
Page 10: Hygiene And Safety Instructions
Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es 7.3) Tightening torque Screws/ Nuts for joining the valve's different parts: It is required for all body screws to make contact of body metal against cover metal.
