INSTALLATION, OPERATION AND MAINTENANCE
MANUAL

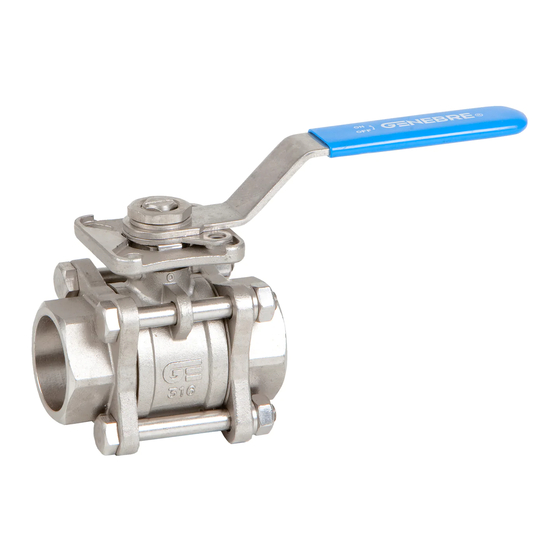

3 piece Full Bore Ball Valve, Direct assembling, Threaded
ends, Butt Weld, Socket Weld and Clamp
GENEBRE Reference: 2025 - 2025N - 2026 - 2027 - 2933
GENEBRE S.A.
LAST UPDATE: 25/06/2010
UPDATE NUMBER: 1
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Genebre 2025
Summary of Contents for Genebre 2025

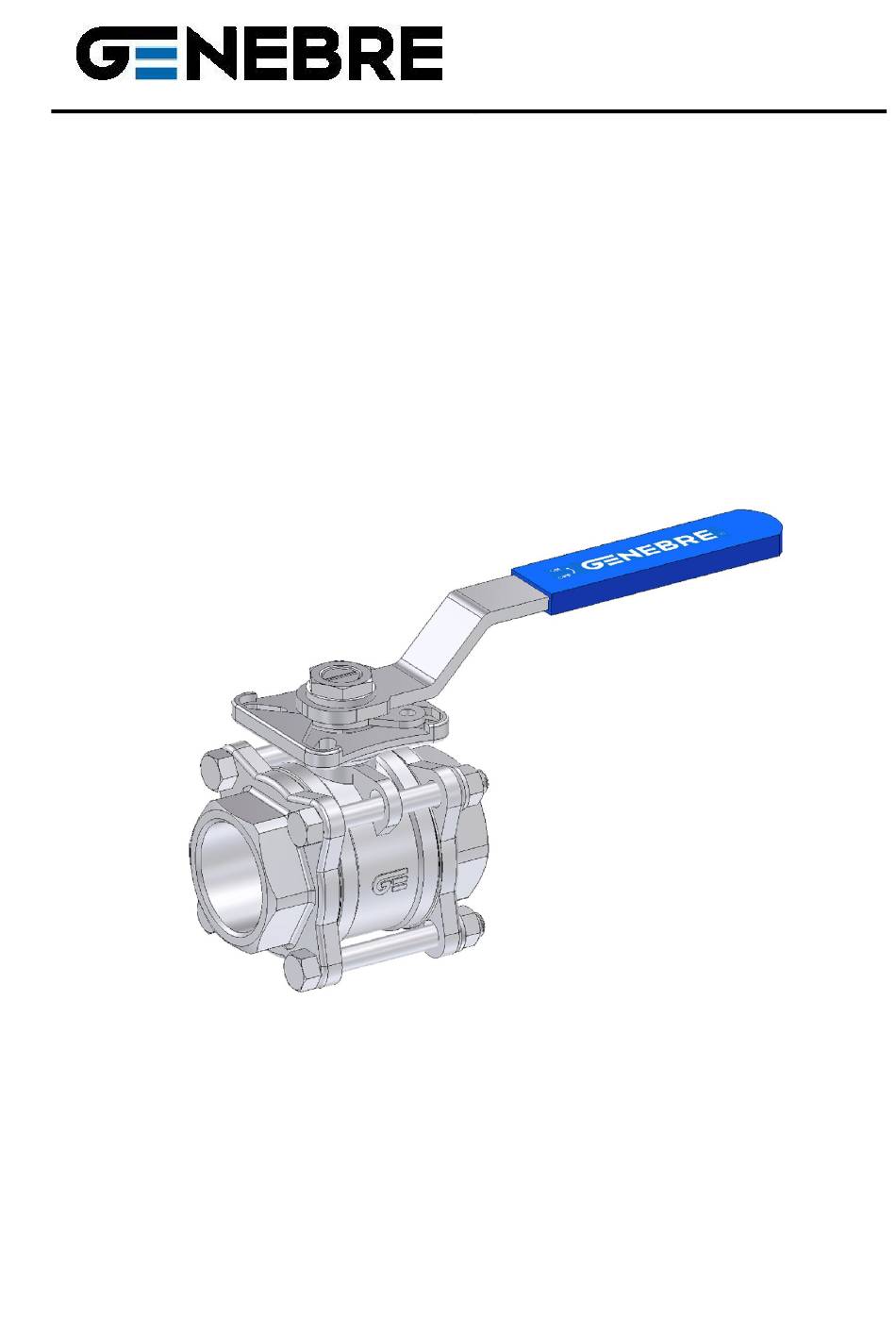

- Page 1 INSTALLATION, OPERATION AND MAINTENANCE MANUAL 3 piece Full Bore Ball Valve, Direct assembling, Threaded ends, Butt Weld, Socket Weld and Clamp GENEBRE Reference: 2025 - 2025N - 2026 - 2027 - 2933 GENEBRE S.A. LAST UPDATE: 25/06/2010 UPDATE NUMBER: 1...
-
Page 2: Table Of Contents
Installation, operation and maintenance instructions 1. Product description.....................3 2. Transport and Storage conditions ................3 3. Valve breakdown......................4 3.1 Drawing and Components (Art. 2025 / 2025N / 2026 / 2027........4 3.2 Drawing and Components (Art. 2933) ..............5 4. Installation instructions ....................6 4.1) Preparation......................6 4.2) Assembling......................7... -
Page 3: Product Description
- www.genebre.es 1. Product description. Genebre, S.A. offers a wide range of ball valves (90º turn), designed and assembled to handle and drive fluids in industrial procedures. The compatibility of materials used to build the valves (see technical specifications) and the application of valves to the different industrial processes is at user's risk. -
Page 4: Valve Breakdown
User is responsible for the safe use of these products, as established in present instructions for use and in the specific technical documentation of the supplied device. 3. Valve breakdown 3.1 Drawing and Components (Art. 2025 / 2025N / 2026 / 2027) GENEBRE S.A. LAST UPDATE: 25/06/2010 UPDATE NUMBER: 1... -
Page 5: Drawing And Components (Art. 2933)
Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es Spare part Part Nr. Description Quant. Material (kit ref.) BODY AISI 316 COVER AISI 316 BALL AISI 316 2907 STEM AISI 316 2905... -
Page 6: Installation Instructions
Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es Part. Description Quant. Material Spare part (ref.) Body CF8M ---- Cover CF8M ---- Ball ---- Seat PTFE 2912 Screw A193-B7 ---- Stem ----... -
Page 7: Assembling
08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es 4.2) Assembling - Art. 2025 / 2025N (threaded ends valve) Do not disassemble the valves to install them. Make sure the valve's pipe and thread ends are clean and are compatible one with another. -
Page 8: Operating Instructions
Make sure the pipe’s clamp and the cover (part.2) clamp are clean. Place the silicone joints (art. 2987-Genebre) between the clamp ends to keep them tight and join them together with a quick locking binding clamp (art. 2986-Genebre). There is a different joint and binding for each valve size. -
Page 9: Manual Operation
(opened or closed). 5.3) Remote operation When automation of 3 piece valves is required, GENEBRE S.A. can provide a great variety of pneumatic actuators, electric actuators, electropneumatic and electronic positioners to cover a large range of operations. -
Page 10: Line Leaks (Through Seats)
Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es 6.3) Line leaks (through seats). Check if the valve is in a completely closed position. If this is the case, leak is due to a seat or locking surface being damaged and it will be necessary to disassemble the valve for repairing it. - Page 11 (part. 4 / part. 6 Art.2933), remove the following elements: Name Art. 2025 / 2025N / 2026 / 2027 Art. 2933 Handle nut Part.12 Part.17 Dividing washer Part.16...
-
Page 12: Reassembling
Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es All locking surfaces in the ball, seats, joints and sides have to be checked for corrosion, erosion, metallic inlays in the seats and marks. If they were damaged or in case of doubt, they will need to be replaced. -
Page 13: Torques Table
Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es It is really important that all pieces, such as covers (part. 2), ball (part. 3) and seats (part. 5 / part. 4 Art.2933) are completely aligned inside. -
Page 14: Hygiene And Safety Instructions
Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es 8.3) Tightening torque Screws/ Nuts for joining the valve's different parts: It is required for all body screws to make contact of body metal against cover metal.
