INSTALLATION, OPERATION
& MAINTENANCE MANUAL

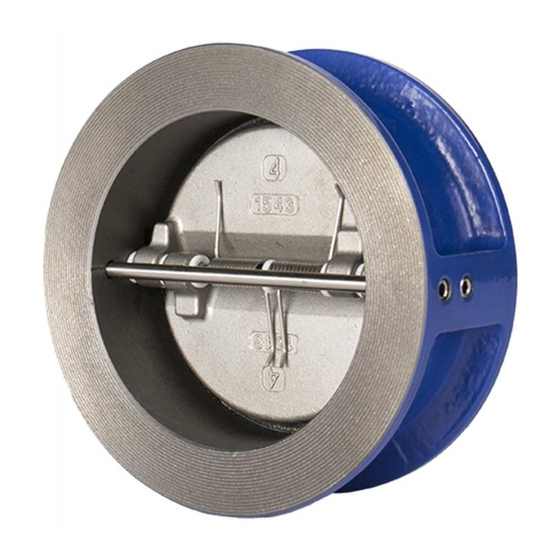

Double Disk Check Valve
Ref. GENEBRE: 2401
Ref. GENEBRE: 2402
GENEBRE S.A.
FECHA DE REVISIÓN: 09/03/2010
NUMERO DE REVISIÓN: 0
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2402 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Genebre 2402

Summary of Contents for Genebre 2402

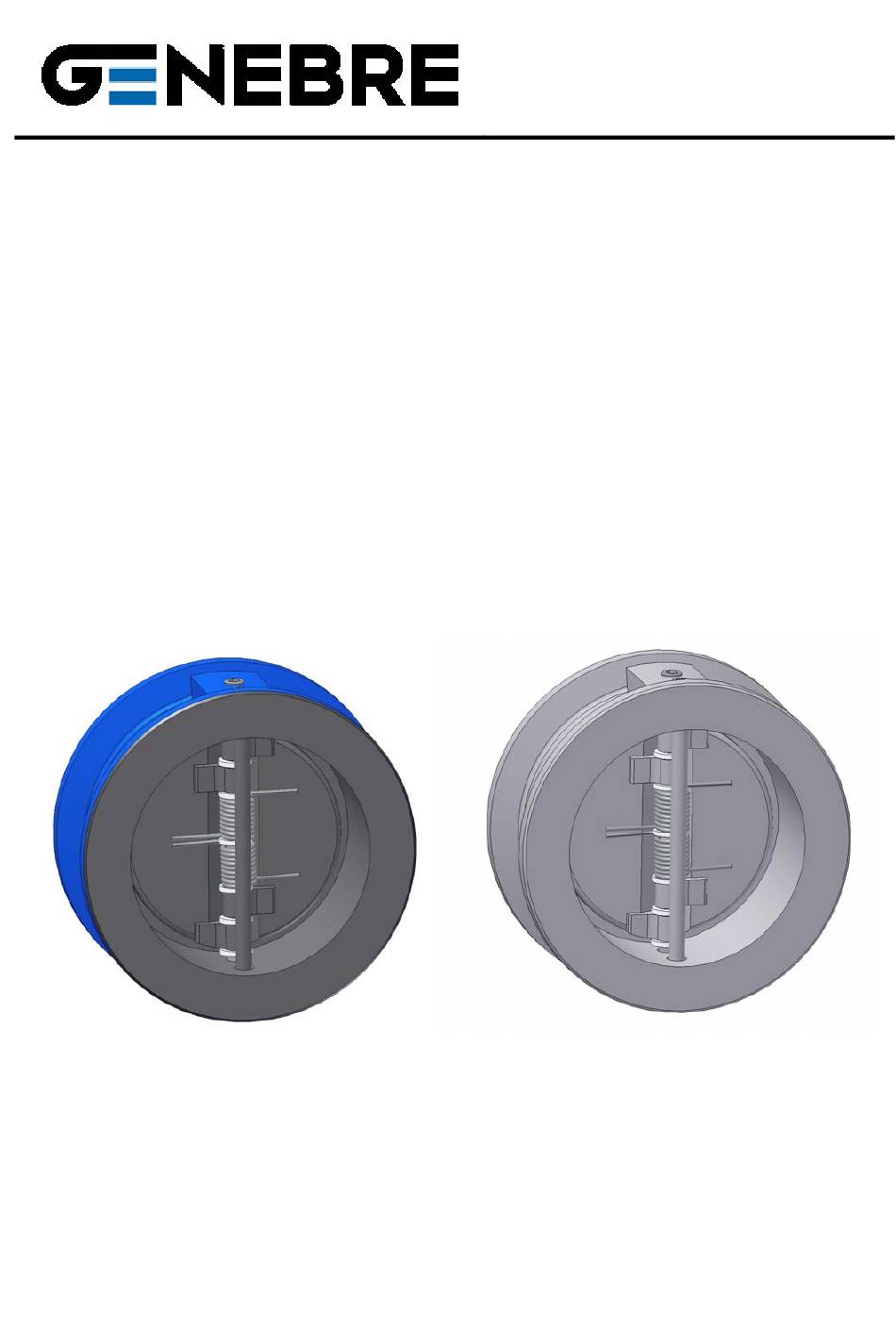

  • Page 1 Edificio Genebre. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es INSTALLATION, OPERATION & MAINTENANCE MANUAL Double Disk Check Valve Ref. GENEBRE: 2401 Ref. GENEBRE: 2402 GENEBRE S.A. FECHA DE REVISIÓN: 09/03/2010 NUMERO DE REVISIÓN: 0...

  • Page 2: Table Of Contents

    Edificio Genebre. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es INSTRUCTIONS FOR INSTALLATION, OPERATION & MAINTENANCE MANUAL 1. Spare parts ....................3 1.1 Parts list ......................4 2. Storage ......................4 3. Installation Instructions ................4 3.1 Preparation...

  • Page 3: Spare Parts

    Edificio Genebre. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es 1) Spare Parts. GENEBRE S.A. FECHA DE REVISIÓN: 09/03/2010 NUMERO DE REVISIÓN: 0...

  • Page 4: Parts List

    Edificio Genebre. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es 1.1) Parts List 2) Storage In case that the valve is not installed immediately, keep it with protective packaging to prevent strokes or accumulation of dirt (it should not be removed until the valve is going to be installed).

  • Page 5: Installation

    - Genebre double disk check valves are designed for mounting between flanges DIN PN16 (art. 2401), DIN PN25 (art. 2402) and ANSI 150 (art. 2401 / art. 2402). - Take the precaution of centring the valve with the axis of the pipe in order to ensure sealing between body and flange.

  • Page 6: Operating Instructions

    In both cases it will be necessary to take off the valve for repair. In this case Genebre, S.A. have springs available (part. 5) for replacement. However, it could be the case (for ex. In remote areas) where, for economical reasons, it is not advisable a valve repair, it is better to change the valve.

  • Page 7: Assembly

    - Reinstall the valve between flanges. See Installation Instructions on page 4. 7) Opening Pressure The double disk check valve (art. 2401 / art. 2402) has been designed to work with minimum opening pressure (for details see technical data sheet of the product).

  • Page 8: Safety Instructions

    Edificio Genebre. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es 8) Safety Instructions 8.1) The fluids pass through a valve can be corrosive, toxic, flammable or pollutant. When handling valves shall be taken necessary security measures and it is advisable to use personal protective equipment: 1) Wear eye protection.
