3.3 Breakout Pads

Most pins of the EZR32 are routed from the radio board to breakout pads at the top and bottom edges of the Wireless STK Mainboard.
A 2.54 mm pitch pin header can be soldered on for easy access to the pins. The figure below shows you how the pins of the EZR32
maps to the pin numbers printed on the breakout pads. To see the available functions on each, please refer to the data sheet for
EZR32HG320F64R68G.
silabs.com | Building a more connected world.
VMCU
GND
LED1 / PF2 / EXP3 / P0
LED0 / PF4 / EXP5 / P2
BTN0 / PC9 / EXP7 / P4
BTN1 / PC10 / EXP9 / P6
PB11 / EXP11 / P8
NC / EXP13 / P10
I2C_SCL / PD7 / EXP15 / P12
DISP_CS / PA0 / P14
NC / P16
NC / P18
DBG_TCK_SWCLK / PF0 / P20
DISP_EXTCOMIN / PF3 / P22
GND
VRF
J102
5V
GND
NC / P24
NC / P26
NC / P28
PTI_DATA / RF_GPIO0 / P30
RF_GPIO2 / P32
NC / P34
NC / P36
NC / P38
NC / P40
NC / P42
NC / P44
NC
GND
3V3

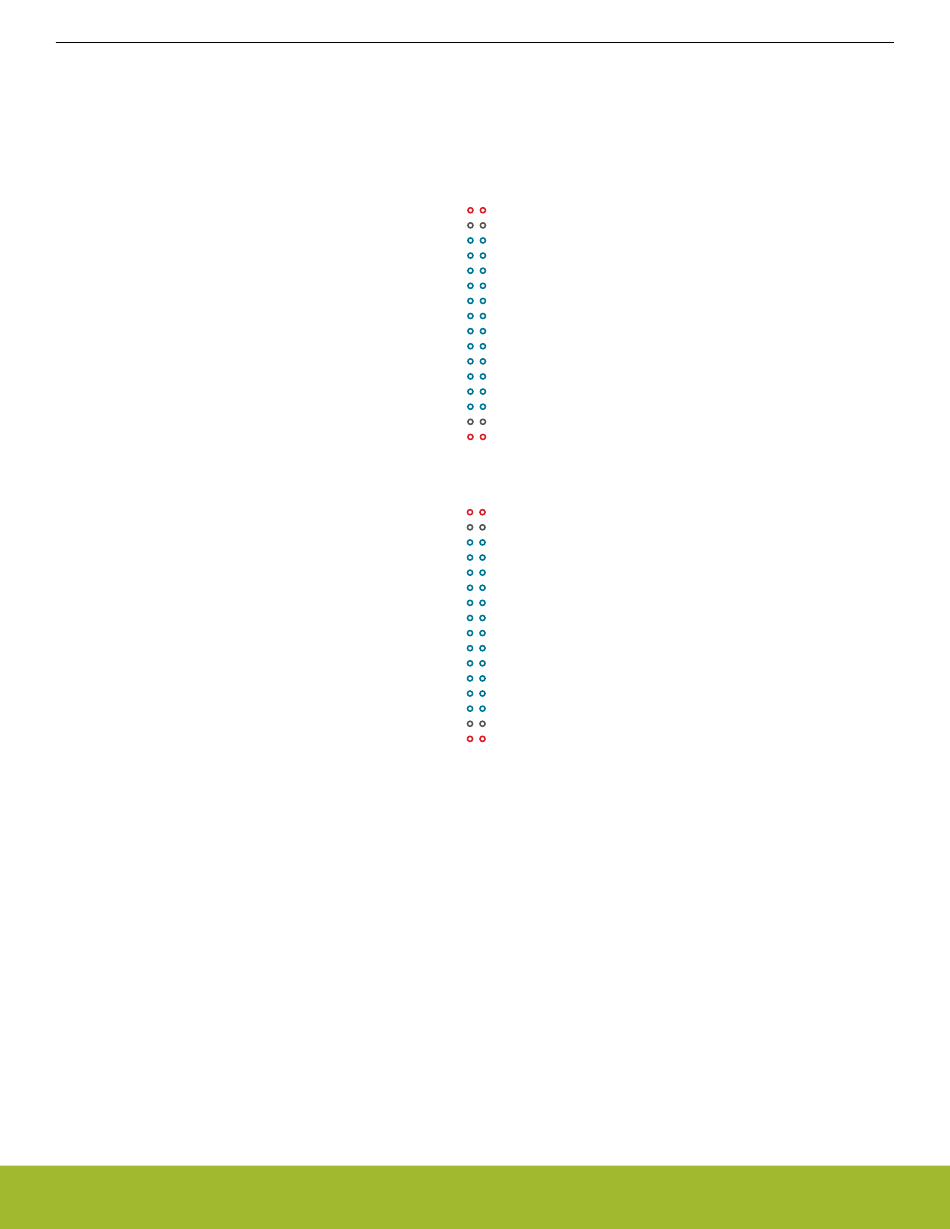

Figure 3.2. Radio Board Pin Mapping on Breakout Pads
UG192: EZR32HG 915 MHz 20 dBm Wireless Starter Kit User's Guide
J101
VMCU
GND
P1 / EXP4 / PE10 / DISP_SI
P3 / EXP6 / PE11
P5 / EXP8 / PE12 / DISP_SCLK
P7 / EXP10 / PE13
P9 / EXP12 / PD4 / VCOM_TX
P11 / EXP14 / PD5 / VCOM_RX
P13 / EXP16 / PD6 / I2C_SDA
P15 / PA1 / DISP_ENABLE
P17 / NC
P19 / PC8 / VCOM_ENABLE
P21 / DBG_TMS_SWDIO / PF1
P23 / NC
GND
VRF
5V
GND
P25 / NC
P27 / NC
P29 / NC
P31 / RF_GPIO1 / PTI_FRAME
P33 / RF_GPIO3
P35 / NC
P37 / Tied High / SENSOR_ENABLE
P39 / NC
P41 / NC
P43 / NC
P45 / NC
NC
GND
3V3
Connectors
