Table of Contents

H-1200, H-2862

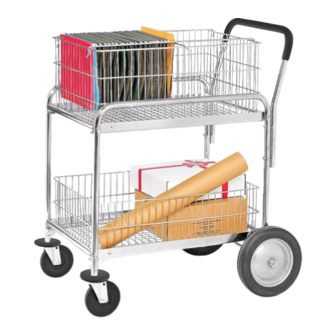

MAIL CART
TOOLS NEEDED
Phillips
Screwdriver
NOTE: Hardware comes preassembled on the cart. Additional hardware pack also included.
2" Bolt x 4
Axle Rod Stem x 2
Donut Bumper x 2
PAGE 1 OF 6
1-800-295-5510
uline.com
Adjustable
Allen Wrench
Wrench
(included)
1/2" Bolt x 4
Cart Assembly x 1
Upper Basket x 1
PARTS
1⁄" Bolt x 4
Handle x 1
5" Swivel Caster x 2
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
5/16" Nut x 4
1/2" Nut x 8
Collar x 2
Axle x 1
Washer x 2
Guide Rod x 3
Lower Basket x 1
10" Rigid Caster x 2
0823 IH-1200

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-1200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for U-Line H-1200

Summary of Contents for U-Line H-1200

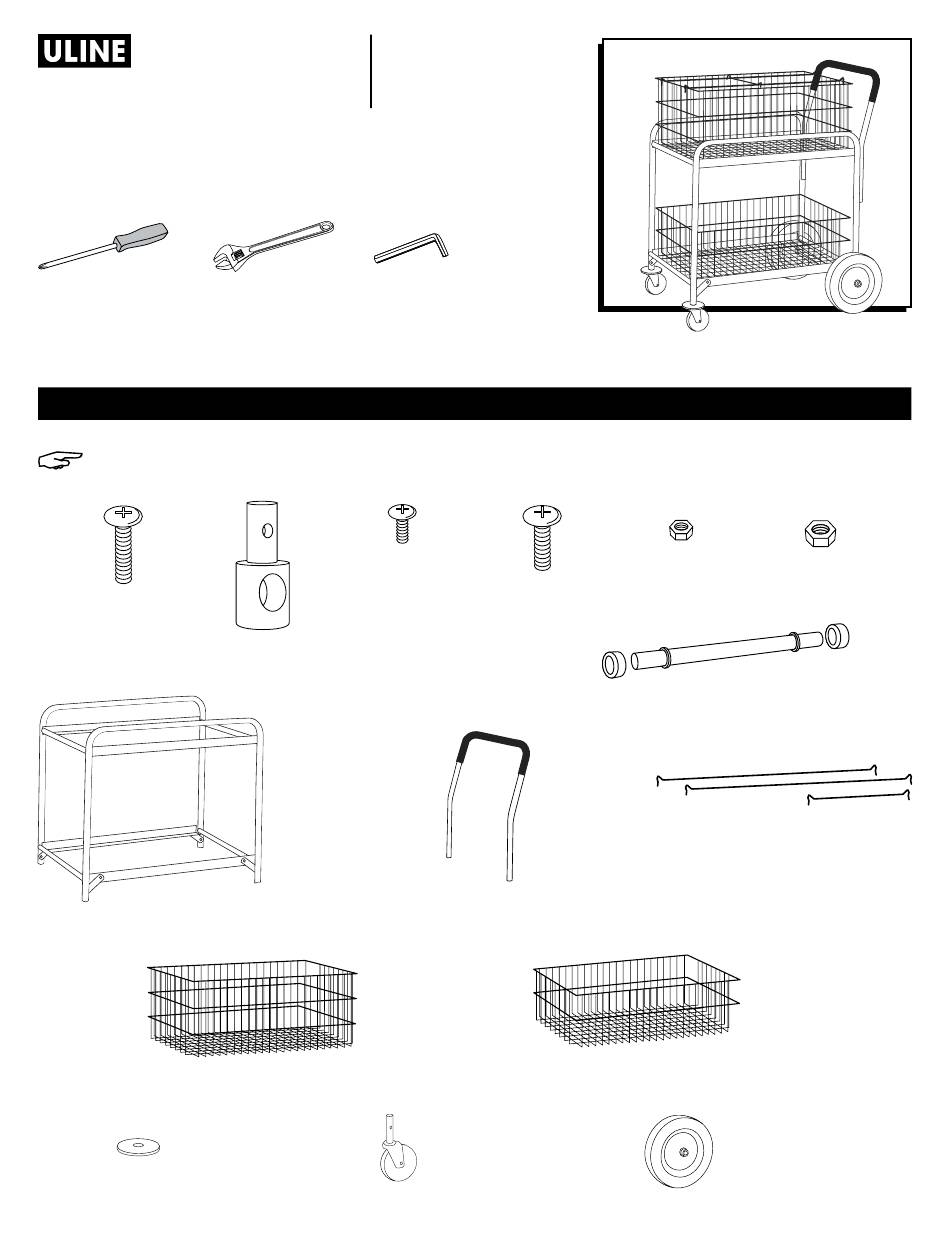

  • Page 1 Para Español, vea páginas 3-4. Pour le français, consulter les pages 5-6. H-1200, H-2862 1-800-295-5510 uline.com MAIL CART TOOLS NEEDED Phillips Adjustable Allen Wrench Screwdriver Wrench (included) PARTS NOTE: Hardware comes preassembled on the cart. Additional hardware pack also included.
