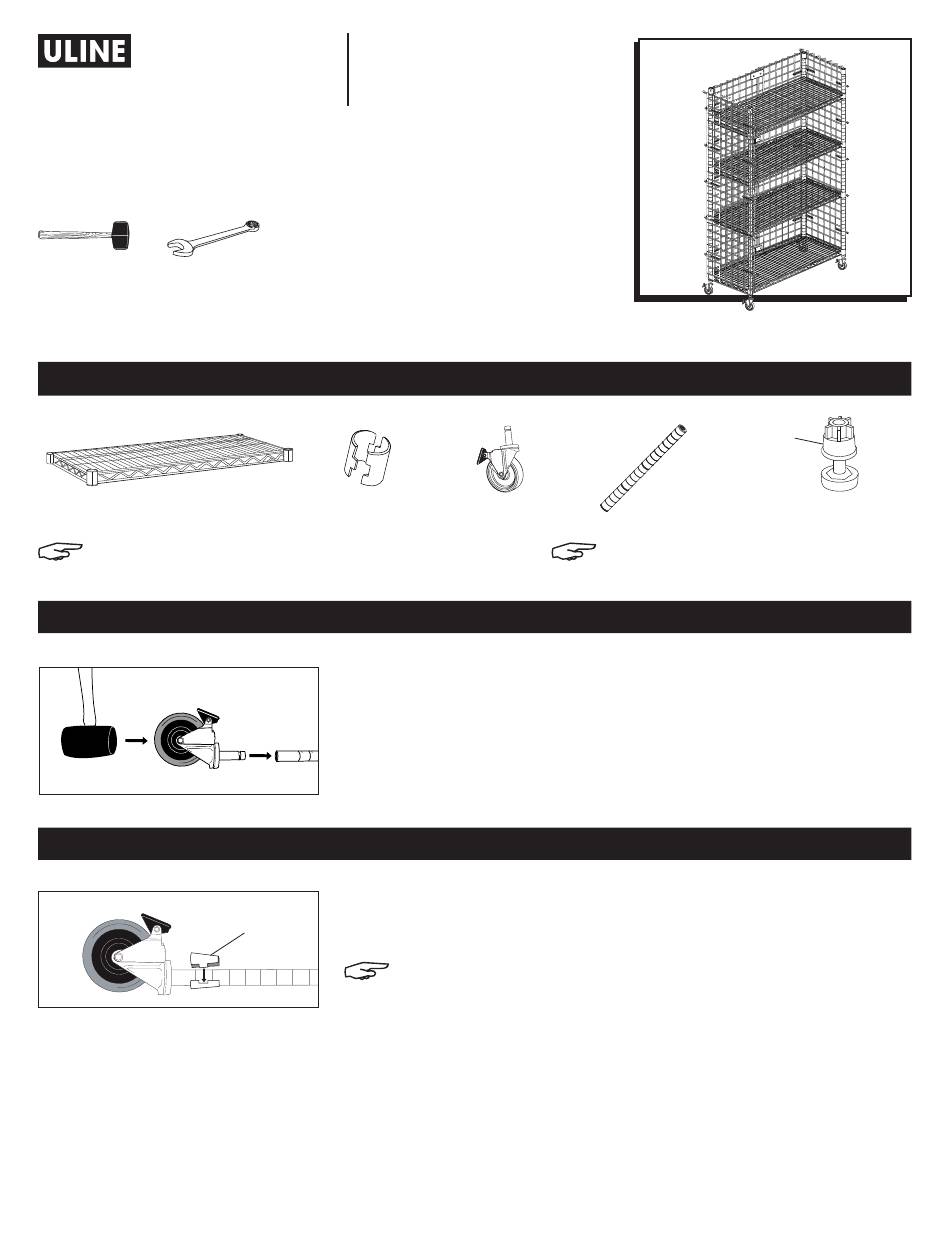

STOCK PICKER CARTS
TOOLS NEEDED
Rubber Mallet
7/16" Wrench
Shelf x 4
NOTE: Shelf supports are included
in shelf box.
Figure 1
Figure 2
Shelf Support
PAGE 1 OF 12
1-800-295-5510
uline.com
SHELVING PARTS
Shelf Support x 16 Sets
Caster x 4
INSTALLATION OF CASTERS
1.
Make sure post is positioned as shown. (See Figure 1)
1.
Engage the wheel brakes to keep casters from rolling during
assembly. Use a rubber mallet to tap caster stems into posts.
(See Figure 1)
SHELVING ASSEMBLY
1.
Start with the lowest shelf. Snap the interlocking pieces of a shelf
support (wide end down) around the post at the lowest groove where
shelf is to be located. (See Figure 2)
NOTE: Two ridges are on the inside of each shelf support. The
bottom shelf support ridge should be aligned with the lowest
groove on the post.
2. Slide the shelf support up or down until it snaps into the groove. Add
shelf supports to the same place on the remaining posts.
Para Español, vea páginas 5-8.
Pour le français, consulter les pages 9-12.
Metal Insert
Post x 4
Self-Leveling Foot x 4
NOTE: Self-leveling feet are included
in post box. See Page 3 for installation.
0221 IH-1789
