H-1199

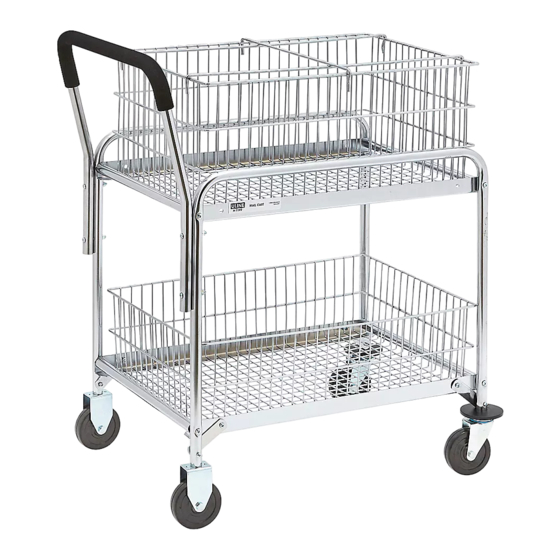

MAIL CART
TOOLS NEEDED
Phillips Screwdriver
Hardware comes preassembled on the cart. Additional hardware pack also included.
1⁄" Bolt x 4
Donut Bumper x 2
PAGE 1 OF 6
1-800-295-5510
uline.com
Adjustable Wrench
PARTS
1" Bolt x 4
1/4" Bolt x 4
Cart Assembly x 1
Upper Basket x 1
4" Swivel Caster x 2
Pour le français, consulter les page 5-6.
1/8" Nut x 8
Handle x 1
Para Español, vea páginas 3-4.
3/4" Nut x 4
Guide Rod x 3
Lower Basket x 1
4" Rigid Caster x 2
0221 IH-1199
Advertisement
Table of Contents
Related Manuals for U-Line H-1199
Summary of Contents for U-Line H-1199
- Page 1 Para Español, vea páginas 3-4. Pour le français, consulter les page 5-6. H-1199 1-800-295-5510 uline.com MAIL CART TOOLS NEEDED Phillips Screwdriver Adjustable Wrench PARTS Hardware comes preassembled on the cart. Additional hardware pack also included. 1⁄" Bolt x 4 1" Bolt x 4 1/4"...
- Page 2 ASSEMBLY GETTING STARTED Flat Donut Swivel Brace Bumper Caster 1. Remove all components from box. Cart 2. Set cart assembly upside down (with open ends Assembly pointing upward). Tube INSTALLING FRONT CASTERS Locate front of cart assembly. Figure 1 NOTE: The front of the cart assembly is the end with no handle mounting holes.
- Page 3 H-1199 800-295-5510 uline.mx CARRITO PARA CORREO HERRAMIENTAS NECESARIAS Desarmador de Cruz Llave Ajustable PARTES La tornillería viene ya ensamblada en el carrito. También se incluye un paquete de tornillería adicional. 4 Pernos de 1⁄" 4 Pernos de 1" 4 Pernos de 1/4"...
- Page 4 ENSAMBLE INICIO Rueda Soporte Tope en Forma Giratoria de Rosca Plano 1. Saque todos los componentes de la caja. Tubo del 2. Coloque el ensamble del carrito boca abajo (con Ensamble los extremos abiertos apuntando hacia arriba). del Carrito COLOCAR LAS RUEDAS DELANTERAS Ubique la parte delantera del ensamble del carrito.
- Page 5 H-1199 1-800-295-5510 uline.ca CHARIOT POUR LE COURRIER OUTILS REQUIS Tournevis cruciforme Clé à molette PIÈCES Le matériel est préassemblé sur le chariot. Du matériel supplémentaire est également fourni. Boulon de 1 ½ po x 4 Boulon de 1 po x 4 Boulon de 1/4 po x 4...
- Page 6 MONTAGE AVANT DE COMMENCER Barre Pare-chocs Roulette de renfort de roulette pivotante 1. Retirez tous les composants de la boîte. plate Tube de 2. Placez la structure du chariot à l'envers la structure (les extrémités ouvertes orientées vers le haut). du chariot INSTALLATION DES ROULETTES AVANT Repérez le devant de la structure du chariot.
