U-Line H-10923 Manual

H-10923, H-10924
H-10925, H-10926

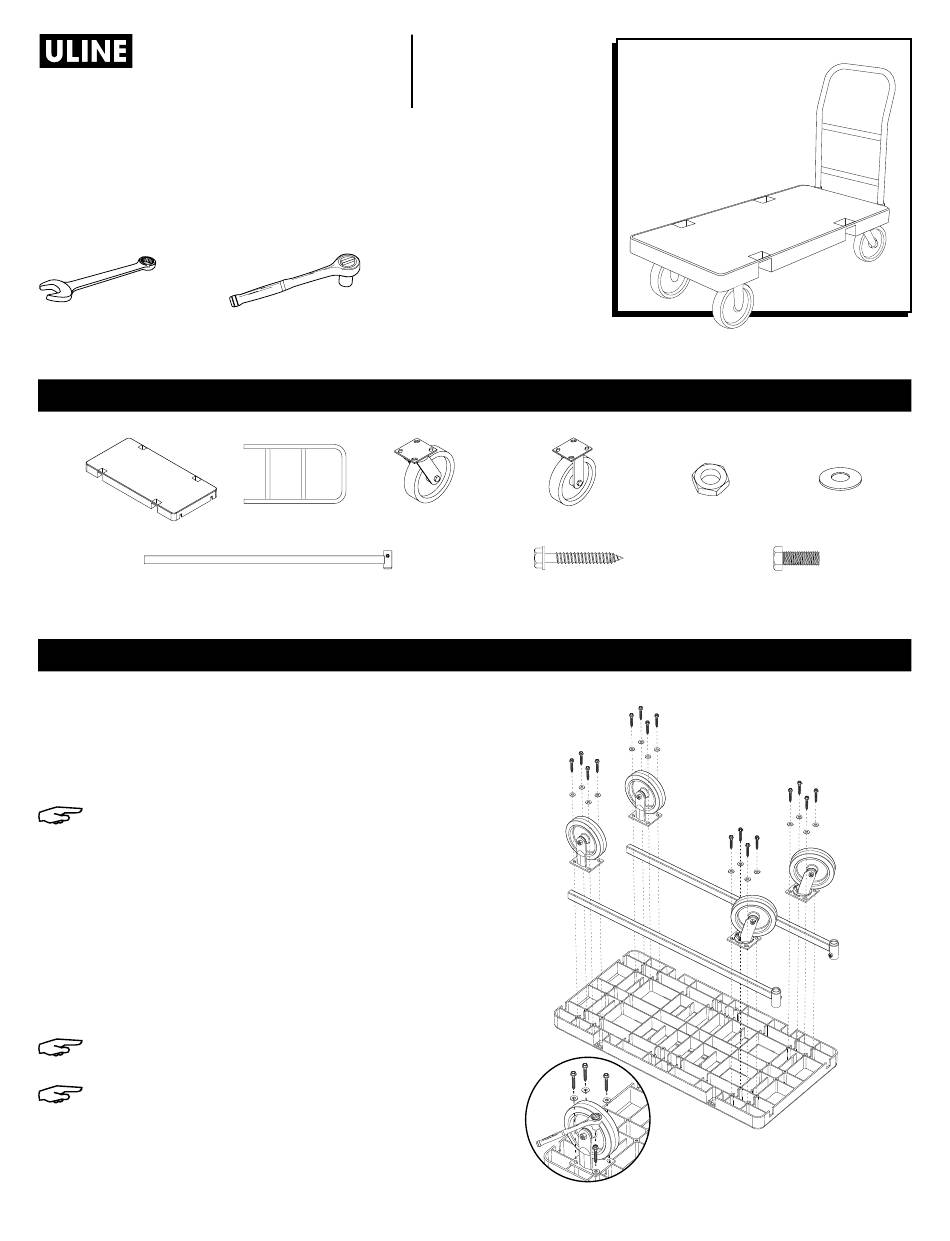

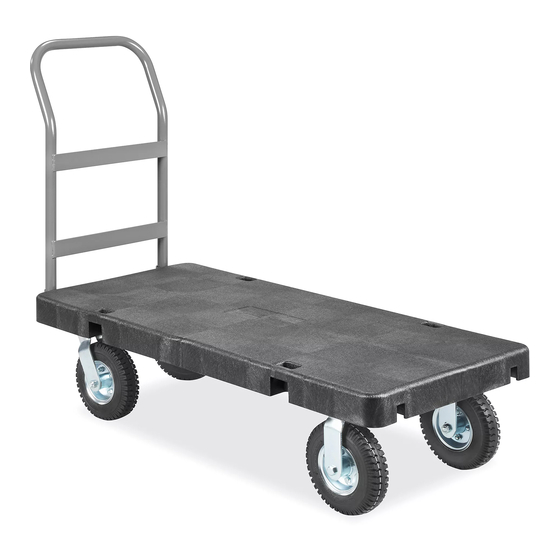

PLASTIC PLATFORM TRUCKS

TOOLS NEEDED

9⁄16" Wrench
Deck x 1
Socket Stiffeners with Welded Nut x 2
1. Place deck upside down on a smooth non-marring
surface.
2. Fit socket stiffeners into groove in deck. Face the
welded nuts toward the middle of the deck.
NOTE: A nut is welded to each socket.
3. Place the swivel casters on the deck, at the socket
end.
4. Place the rigid casters at the opposite end.
5. The top plate of each caster is centered over the
socket stiffener tube and lined up with the four
caster holes in the deck.
6. Secure casters to deck using washers, long screws
and 9/16" socket wrench.
NOTE: Four long screws and four washers are
required per caster.
NOTE: Do not fully tighten long screws.
PAGE 1 OF 6
1-800-295-5510
uline.com
9⁄16" Socket Wrench
Handle x 1 Swivel Caster x 2

ASSEMBLY

PARTS

Rigid Caster x 2
Long Screw x 16
5
6
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
Nut x 2 Washer x 16
Bolt x 2
4
3
5
2
1
0823 IH-10923
