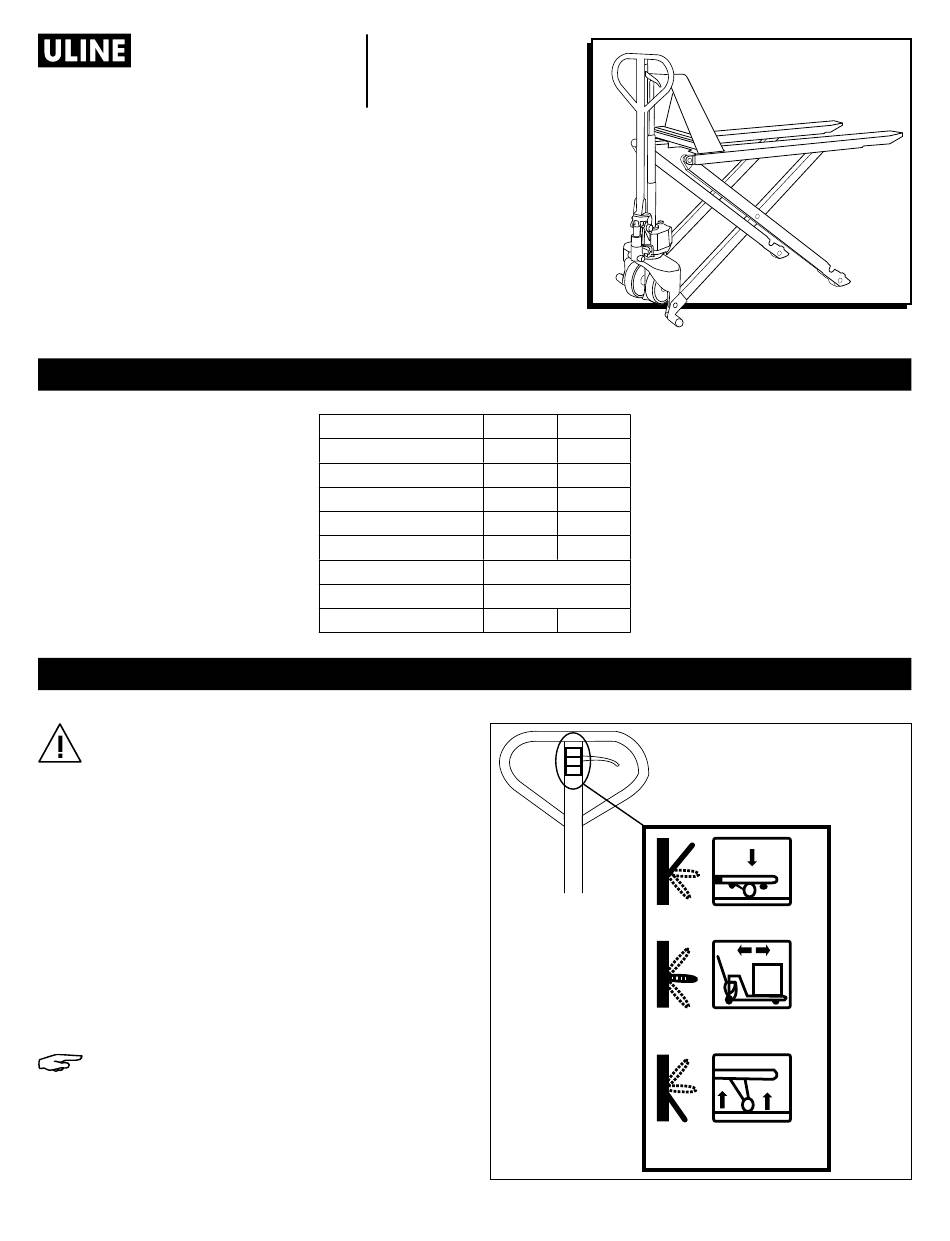

H-1785, H-2507
SCISSOR LIFT TRUCK
WARNING! Read and understand instructions
here and on truck prior to use.
The control lever on the handle of the truck can be set in
three positions. (See Figure 1)
LOWER = to lower the forks
SLOW LIFT = slowly raise the forks (use when moving load)
QUICK LIFT = quickly raise the forks
1.
If the forks do not lift or lower while in the QUICK LIFT
position, turn the setting screw counter-clockwise until
the forks elevate while pumping in the QUICK LIFT
position.
2. If the forks do not lower, turn the setting screw
clockwise until raising the control lever lowers the forks.
NOTE: When viewing the truck from the handle
side, the setting screw is located on the right side
of the pump above the right wheel. The truck will
lower faster or slower depending on how far in or
out the screw is adjusted. (See Figure 2)
PAGE 1 OF 9
1-800-295-5510
uline.com
TECHNICAL DATA
MODEL
H-1785
Capacity
2,200 lbs.
Min. Fork Height
Max. Fork Height
Fork Length
Overall Fork Width
Fork Wheel Diameter
Steering Wheel Diameter
Net Weight
242 lbs.
OPERATION
Pour le français, consulter les pages 7-9.
H-2507
2,200 lbs.
3½"
3½"
31½"
31½"
45"
45"
27"
21"
3" Polyurethane
7" Polyurethane
232 lbs.
Para Español, vea páginas 4-6.
Figure 1
LOWER
SLOW LIFT
FAST LIFT
0325 IH-1785

Advertisement

loading
Need help?

Need help?

Do you have a question about the H-1785 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for U-Line H-1785

  • Page 1 Para Español, vea páginas 4-6. Pour le français, consulter les pages 7-9. H-1785, H-2507 1-800-295-5510 uline.com SCISSOR LIFT TRUCK TECHNICAL DATA MODEL H-1785 H-2507 Capacity 2,200 lbs. 2,200 lbs. Min. Fork Height 3½" 3½" Max. Fork Height 31½" 31½" Fork Length 45"...
  • Page 2: Maintenance

    MAINTENANCE HOW TO EXPEL AIR FROM THE PUMP UNIT Figure 2 Air may enter the unit over time or when the seals are replaced. Air can be expelled in two ways: Remove guide screw and slowly pump the handle until oil overflows. Stop pumping the handle and Guide Screw tighten the guide screw.
  • Page 3: Troubleshooting

    TROUBLESHOOTING OPERATING ISSUE CAUSES RECOMMENDATIONS The forks do not raise. The setting screw is not in the correct Adjust the setting screw. position. (See Operation) Air in the hydraulic oil. Expel the air. (See Maintenance) The forks do not descend. The rod and/or cylinder are deformed Replace the rod and/or cylinder.
  • Page 4: Información Técnica

    H-1785, H-2507 800-295-5510 uline.mx PATÍN HIDRÁULICO DE ELEVACIÓN DE TIJERA INFORMACIÓN TÉCNICA MODELO H-1785 H-2507 Capacidad 997 kg (2,200 lbs.) 997 kg (2,200 lbs.) Altura Mín. de Horquilla 8.9 cm (3½") 8.9 cm (3½") Altura Máx. de Horquilla 80 cm (31½") 80 cm (31½")
  • Page 5: Mantenimiento

    MANTENIMIENTO CÓMO EXPULSAR AIRE DE LA UNIDAD DE Diagrama 2 BOMBEO Puede entrar aire a la unidad con el tiempo o cuando se reemplazan los empaques. El aire se puede expulsar de dos formas: Tornillo Guía 1. Quite el tornillo guía y bombee lentamente el asa hasta que el aceite se desborde.
  • Page 6: Solución De Problemas

    SOLUCIÓN DE PROBLEMAS PROBLEMA DE FUNCIONAMIENTO CAUSAS RECOMENDACIONES Las horquillas no se elevan. El tornillo de ajuste no está en la posición Reajuste el tornillo de ajuste. correcta. (Vea Funcionamiento) Aire en el aceite hidráulico. Expulse el aire. (Vea Mantenimiento) Las horquillas no bajan.
  • Page 7: Données Techniques

    H-1785, H-2507 1 800 295-5510 uline.ca TRANSPALETTE ÉLÉVATEUR À CISEAUX DONNÉES TECHNIQUES MODÈLE H-1785 H-2507 Capacité 997,9 kg (2 200 lb) 997,9 kg (2 200 lb) Hauteur min. de la fourche 8,9 cm (3 ½ po) 8,9 cm (3 ½ po) Hauteur max.
  • Page 8 ENTRETIEN COMMENT PURGER L'AIR DE LA POMPE Figure 2 De l'air peut pénétrer dans la pompe au fil du temps ou lors du remplacement des joints d'huile. L'air peut être expulsé de deux façons : Retirez la vis-guide et pompez lentement la poignée jusqu'à...
  • Page 9: Dépannage

    DÉPANNAGE PROBLÈME DE FONCTIONNEMENT CAUSES RECOMMANDATIONS Les fourches ne se soulèvent pas. La vis de réglage n'est pas à la position Réglez la vis de réglage. appropriée. (Voir Fonctionnement) Il y a de l'air dans l'huile hydraulique. Purgez l'air. (Voir Entretien) Les fourches ne descendent pas.
