π
H-1200, H-2862

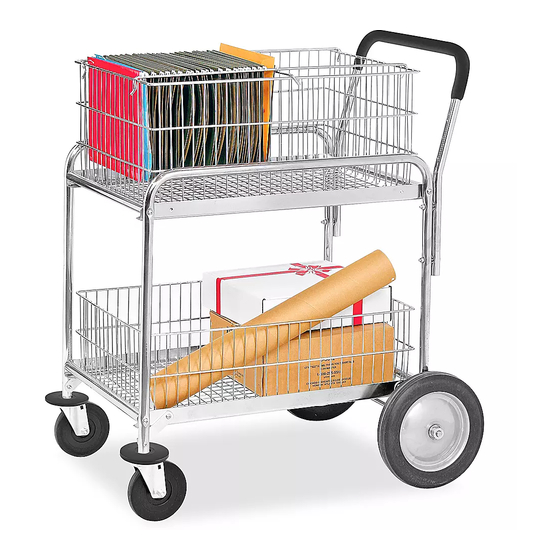

MAIL CART
TOOLS NEEDED
Hardware comes preassembled on the cart. Additional hardware pack also included.
2" Bolt x 4
PAGE 1 OF 2
Phillips Screwdriver
Adjustable Wrench
Allen Wrench
(included)
1/2" Bolt x 4
Axle Rod Stem x 2
Cart Assembly x 1
Upper Basket x 1
5" Swivel Caster x 2
1-800-295-5510
uline.com
PARTS
1⁄" Bolt x 4
Handle x 1
5/16" Nut x 4
1/2" Nut x 8
Axle x 1
Guide Rod x 3
Lower Basket x 1
10" Rigid Caster x 2
Collar x 2
0614 IH-1200
Advertisement
Table of Contents
Related Manuals for U-Line H-1200
Summary of Contents for U-Line H-1200
- Page 1 π H-1200, H-2862 1-800-295-5510 uline.com MAIL CART TOOLS NEEDED Phillips Screwdriver Adjustable Wrench Allen Wrench (included) PARTS Hardware comes preassembled on the cart. Additional hardware pack also included. 5/16" Nut x 4 1/2" Bolt x 4 1/2" Nut x 8 1⁄"...
- Page 2 ASSEMBLY GETTING STARTED 1. Remove all components from box. Cart Assembly 2. Set Cart Assembly upside down (with open ends up). Tube INSTALLING FRONT CASTERS Locate front of Cart Assembly. Figure 1 NOTE: The front of the Cart Assembly is the end with no handle mounting holes.
