H-1234, H-7103
H-7740

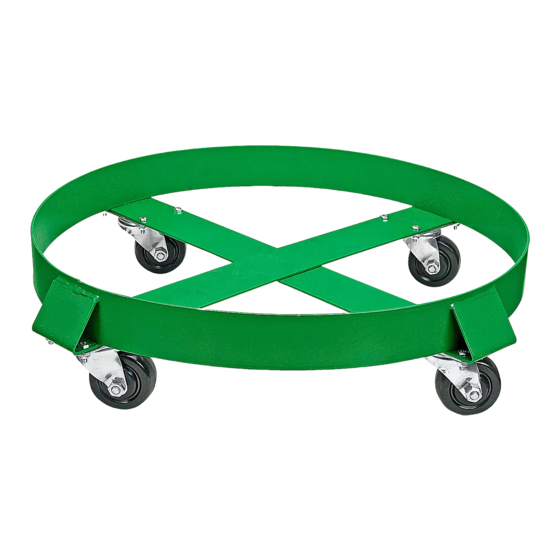

DRUM DOLLY
TOOL NEEDED
9⁄16" Wrench
Caster x 4
Washer x 16
INSTALL CASTERS
1. Turn drum dolly frame upside down.
2. Align caster with bolt holes. Insert bolt, washer, lock
washer and attach with nut. (See Figure 1)
3. Tighten nuts with a 9⁄16" wrench.
4. Repeat for remaining casters.
PAGE 1 OF 3
1-800-295-5510
uline.com
PARTS
Lock Washer x 16
Nut x 16
ASSEMBLY
Pour le français, consulter les page 3.
Caster
Nut
Lock Washer
Washer
Bolt
Figure 1
Para Español, vea página 2.
Bolt x 16
Drum Dolly Frame x 1
Drum Dolly
Frame
0221 IH-1234
