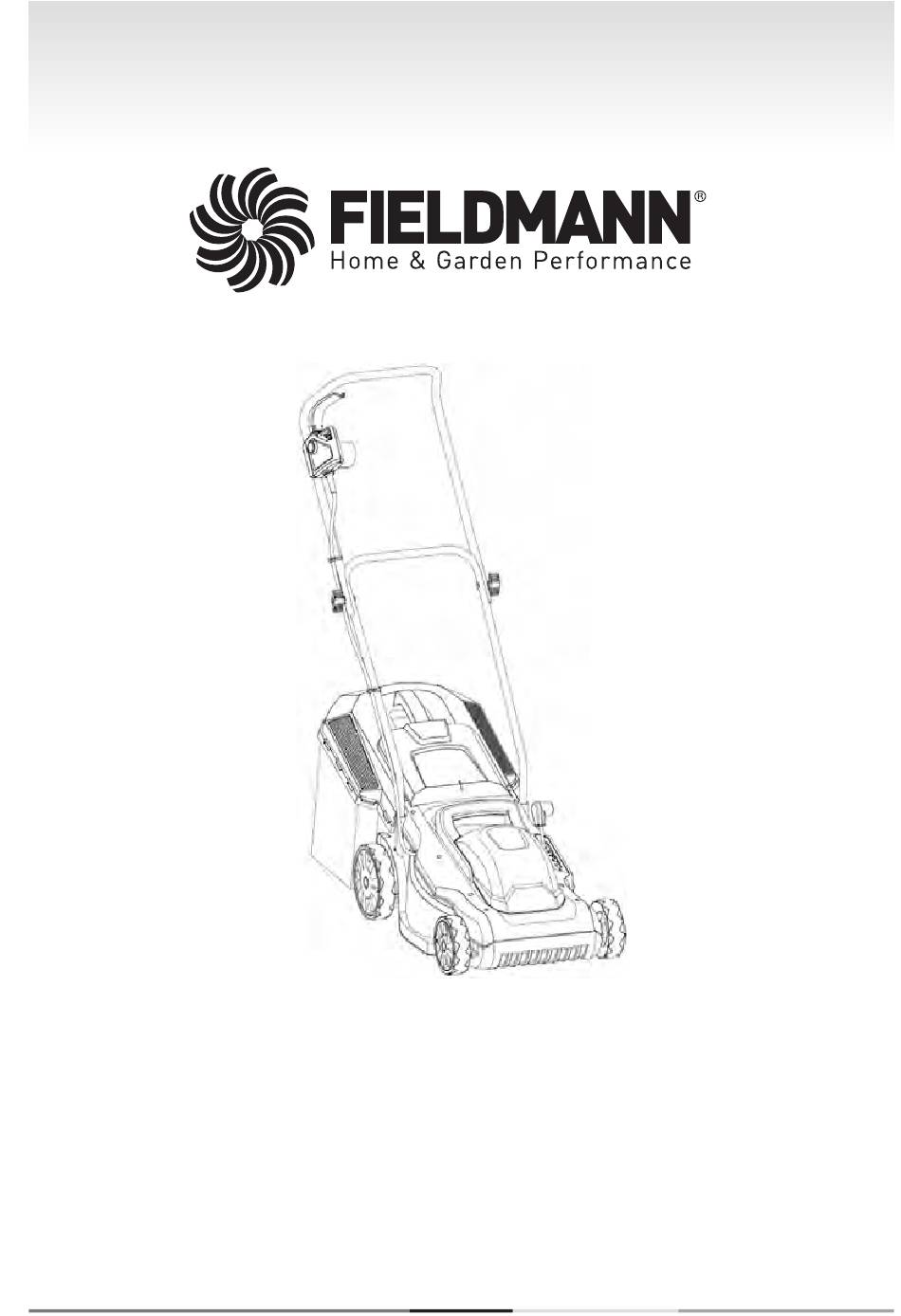

- Page 1 FZR 2035 E...
- Page 2 English ........................................1 - 18 Čeština........................................19 - 34 Slovenština ......................................35 - 50 Magyarul ......................................51 - 66 Polski .........................................67 - 84 FZR 2035 E...
-
Page 3: Table Of Contents
Table of Contents Electric Lawn mower USER MANUAL Thank you for purchasing this rotary electric lawn mower. Before you start using it, please read this user manual carefully and save it for future use. TABLE OF CONTENTS 1. GENERAL SAFETY REGULATIONS ..........................4 Important safety information ..........................4 Packaging ..................................4 User Manual ...................................4... -
Page 4: General Safety Regulations
User manual. The User manual also contains operating, maintenance, and repair instructions. The manufacturer takes no responsibility for accidents or damage from not following the instructions in this manual. FZR 2035 E... -
Page 5: Symbols
Symbols 2. SYMBOLS Read the manual with the instructions before using this machine. Bystanders must be at a safe distance. Be careful of the sharp blade edges. The blades continue to rotate even after the motor is turned off. Before carrying out maintenance or if the power cable is damaged, disconnect the plug from the mains. -
Page 6: Description
Description 3. DESCRIPTION 1. Top Handle 2. Handle connection screw 3. Lower handle 4. Grass catcher 5. Grass catcher cover / rear deflector 6. Mowing height adjustment lever 7. Start/stop trigger safety lock 8. Start/stop trigger FZR 2035 E... -
Page 7: Basic Work Safety
Basics of work safety 4. BASIC WORK SAFETY Never use the machine if the power cable is damaged or visibly worn. If the lawn mower is connected to a power source using a damaged power cable and the place that is not insulated is touched before the lawn mower is disconnected from the power source, you risk being electrocuted. -
Page 8: Before You Start Using The Lawn Mower
The following general rules apply for work with the lawn mower: When mowing on a slope, do not move up and down but always along the contours, i.e. horizontally perpendicular to the incline of the slope. Be very careful when changing direction on a slope. Never use the lawn mower on extremely steep slopes. FZR 2035 E... -
Page 9: Maintenance And Storage
Basics of work safety If you need to pull the lawn mower towards you while it is running or if you need to move backwards with the lawn mower, be very careful. Always stop the blades from turning when transporting the machine or moving over an ungrassed area. Never use the machine if any covers are damaged or if any of its safety elements are missing such as deflectors or grass catchers. -
Page 10: Assembly
Mount the lower part of the handle into the mower and fasten it with the attached bolts. See Fig. 2. Connect the upper part to the lower handle by the attached bolts with fly nuts. See Fig. 3. Note: When the fly nuts are released, the handle can be folded or transported. FZR 2035 E... -
Page 11: Assembling And Mounting The Lawn Mower
Assembly 5.2 ASSEMBLING AND MOUNTING THE COLLECTING BASKET Insert the handle into the grass catcher cover. See Fig. 4. Fix the frame to the upper plastic cover with the 4 attached bolts and washers,. See Fig. 5. Mount the textile part on the cap of the catcher and the frame. See Fig. 6. ELECTRIC LAWN MOWER USER MANUAL... -
Page 12: Extension Cable / Securing The Power Cable
The grass lined up in the following way behind the lawn mower. 5.3 EXTENSION CABLE / SECURING THE POWER CABLE Insert the lawn mower plug into the socket on the power cable. To prevent the power cable from disconnecting during operation, guide it through the power cable holder. FZR 2035 E... -
Page 13: Operation
Operation 6. OPERATION 6.1 SETTING THE MOWING HEIGHT ! Before setting the mowing height, always make sure the lawn mower is turned off and the blade is not moving. ATTENTION: The blade will rotate for several seconds after the lawn mower is turned off. A rotating blade can cause injuries. -
Page 14: Turning The Lawn Stated Mower On/Off
6.3.2 Turning it off : Release the starting lever (Fig. 9, point 2). ATTENTION: The blade will rotate for several seconds after the lawn mower is turned off. ATTENTION: Do not turn the lawn mower off and on in quick succession. FZR 2035 E... -
Page 15: Technical Specifications
Technical specifications 7. TECHNICAL SPECIFICATIONS Model FZR 2035 E Power source 230–240 V, 50 Hz Power input 1600 W Idling speed 3,300 ± 10 % 1/min Coverage width (blade length): 380 mm Mowing heights 20–70 mm (5 positions) Grass catcher volume... -
Page 16: Maintenance
Before using the machine, carry out all necessary repairs and maintenance. If, despite regular maintenance, the machine does not work, please contact our customer service, the repair should be carried out by our contractual partner in one of the specialised Fieldmann workshops. 8.1 BLADE REPLACEMENT Contact an authorised service centre. -
Page 17: Disposal
CE Conformity Declaration 9. DISPOSAL INSTRUCTIONS AND INFORMATION ON DISPOSING OF USED PACKAGING MATERIALS Dispose of used packaging material at a waste site in your municipality. DISPOSING OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT This symbol on products or original documents means that used electric or electronic products must not be added to ordinary municipal waste. - Page 18 Disposal FZR 2035 E...
