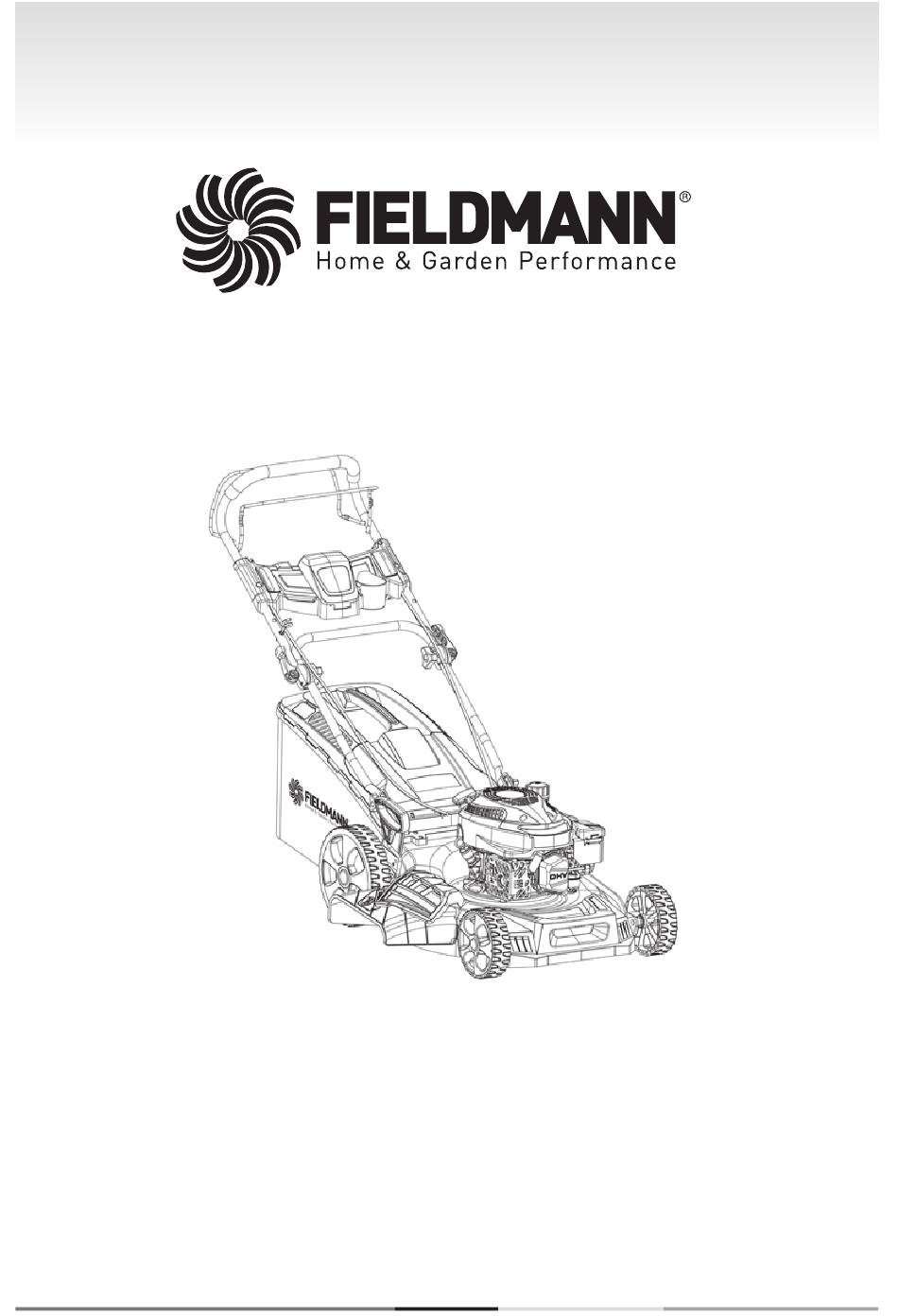

  • Page 1 FZR 5114-170 BV...
  • Page 2 English ....................................3–20 Čeština ................................... 21–38 Slovenština ................................... 39–56 Magyarul ..................................57–74 Polski ....................................75–92 FZR 5114-170 BV...

  • Page 3: Table Of Contents

    Table of Contents Petrol Lawnmower INSTRUCTIONS FOR USE Thank you for purchasing this rotary petrol lawnmower. Before you start using it, please, carefully read this user's manual and save it for possible future use. TABLE OF CONTENTS 1. GENERAL SAFETY REGULATIONS ..........................4 2.

  • Page 4: General Safety Regulations

    User manual. The User manual also contains operating, maintenance, and repair instructions. The manufacturer assumes no responsibility for accidents or damages arising from failure to comply with these instructions. FZR 5114-170 BV...

  • Page 5: Explanation Of The Instruction Labels On The Machine

    Explanation of instruction labels on the power tool 2. EXPLANATION OF THE INSTRUCTION LABELS ON THE MACHINE Before putting into operation, please carefully read the user's manual. Keep other persons away from the work area. Attention, rotating blades! Protect yourself against the danger of injury to limbs.
  • Page 6 Always maintain a distance from moving parts. Travel along the slope on contours, not up and down. Conforms to all relevant European directives. Petrol is extremely flammable and therefore allow the engine to cool down for 2 minutes before adding more fuel. FZR 5114-170 BV...

  • Page 7: Description Of The Lawnmower (Fig. 1)

    Description of the lawnmower | Assembly/Preparation 3. DESCRIPTION OF THE LAWNMOWER (Fig. 1) 1. Travel lever Fig. 1 2. Start / brake lever 3. Motor speed setting lever 4. Screws with quick couplers 5. Bottom part of the handle 6. Fuel tank cap 7.

  • Page 8: Assembling The Lawnmower

    IMPORTANT: After loosening the quick coupler, it is possible to comfortably adjust the height of the handle and to select the most comfortable work position. Fig. 2 2. INSTALLING THE HANDLE PANEL Attach the plastic handle panel using the included screws (Fig. 3). Fig. 3 FZR 5114-170 BV...

  • Page 9: Before Starting The Lawnmower

    Assembling the lawnmower | Before starting the lawnmower 3. ASSEMBLING THE GRASS CATCHER Secure the plastic hooks at the end of the textile part of the grass catcher into the steel frame (Fig. 4). Fig. 4 IMPORTANT: The grass catcher is equipped with a full indicator. It is a plastic flap at the rear of the grass catcher.

  • Page 10: Controlling And Operating The Lawnmower

    This is completely normal and does not constitute a problem. Caution! This engine is equipped with an automatic choke. Therefore, no special operations are required even in the case of a cold engine start. FZR 5114-170 BV...
  • Page 11 Controlling and operating the lawnmower CONTROLLING TRAVEL The travel is controlled using the travel lever (Fig. 7, point 1). When the lever is pulled to the handle, the lawnmower will start moving. To stop, release the lever. The lawnmower is equipped a travel speed control. You can change the travel speed with the lever on the handle panel (Fig.
  • Page 12 CHANGING THE MOTOR OIL Caution! For this task, we recommend that you contact an authorised service centre. Start up the lawnmower motor for a short while to warm up the oil. Then extract oil with the FZR 9050 oil extractor. FZR 5114-170 BV...

  • Page 13: Safety Instructions

    Controlling and operating the lawnmower | Safety instructions Add type SAE30 or 15W-40 oil into the oil tank. Fig. 11 When the oil dipstick is inserted into the hole and screwed in, the oil level should be between the Min and Max marks (Fig.

  • Page 14: Maintenance

    When the leaves are cut off completely, the lawn is damaged and the renewal of growth will be much more difficult. The following instructions generally apply: – excessively low mowing causes disruption to the roots and subsequently "spotty" appearance; – in summer, mowing must be higher to prevent the soil from drying out; FZR 5114-170 BV...
  • Page 15 Maintenance – mowing wet grass may result in a lower efficiency of the blade due to grass catching on the blade and grass being ripped out of the ground; – in the event of exceptionally tall grass it is appropriate to perform the first mow at the maximum permitted mowing height of the machine and then mow again only after two or three days.
  • Page 16 Screw out the spark plug and pour a small amount of motor oil into the socket. Gently pull the pull cord 2 to 3 times. Use a clean cloth to clean the exterior surfaces. Store the machine in a clean dry location. FZR 5114-170 BV...

  • Page 17: Technical Specifications

    Technical specifications 10. TECHNICAL SPECIFICATIONS Engine type RATO RV 170-S Rated power 2.8kW Engine rpm 3000 rpm Displacement 170 cm Starting Pull cord Fuel tank volume 1.5 liter Recommended fuel Petrol - lead-free, at least 95 octane Oil tank volume 0.6 l Recommended oil SAE30, 15W-40...

  • Page 18: Disposal

    This appliance meets all the basic requirements of the EU directives. Changes in the text, design and technical specifications may be made without prior notice and we reserve the right to make these changes. User manual in the original language. FZR 5114-170 BV...

  • Page 19: Declaration Of Conformity

    Declaration of conformity 12. DECLARATION OF CONFORMITY EU Declaration of Conformity Product/ brand: Gasoline powered lawnmower FIELDMANN Type/ model: FZR 5114-170BV as factory model HG51SML-RV170 170,1 cm ; 2,8kW/ 2800 min ; Cutting width 510mm; L = 86,6dB; L = 98dB Manufacturer: FAST ČR, a.s.
  • Page 20 Notes FZR 5114-170 BV...
  • Page 22 Záruční podmínky Záručné podmienky Conditions of guarantee Prodávající poskytuje kupují c ímu na výrobek zá­ Predávajúci poskytuje kupujúcemu na výrobok This product is warranted for the period of 24 mon­ ruku trvání 24 měsíců od převzetí výrobku kupu­ 24 mesiacov záruku od jeho prevzatia kupujúcim. ths from the date of purchase to the end-user.
  • Page 23 Jótállási jegy A termék gyártója: FAST ČR, a.s. (U Sanitasu elállásnak nincs helye. A fogyasztó a választott A 151/2003. (IX.22.) Korm.rendeletben meg- 1621, Říčany u Prahy 251 01, Csehország) határozott tartós fogyasztási cikk meghibáso- jogáról másikra térhet át. Az áttéréssel okozott A FAST Hungary Kft.
  • Page 24 A kereskedő tölti ki Megnevezés:................................Típus:................ Gyártási szám: ……………………………………………. A termék azonosításra alkalmas részeinek meghatározása (ha alkalmazható):…………………………………… Vásárlást igazoló bizonylat száma:………………………………………………………………………………. A vásárlás (üzembe helyezés) időpontja: 20......hó.....nap. Kereskedő bélyegzője: Kereskedő aláírása: ………………………………… Kereskedő címe: ……………………………………………… Javítás esetén alkalmazandó A kereskedő vagy szerviznél történő közvetlen bejelentés esetén a szerviz tölti ki A jótállási igény bejelentésének időpontja: ……………………………………………………………………….
