Parallel, execute save and restore Single, the Recall voltage value of the
two channels is the Parallel voltage value, and the current is half of the Par-
allel mode.
The detailed connection method and operation steps are as follows.
1. Set the two channels of the power supply to Parallel mode.
a. Press the [Shift]+[Display] (System) key to enter the system menu.
b. Press the left and right direction keys or rotate the knob, select "Con-
nect", and press [Enter] to enter the edit mode.
c. Rotate the knob to select "Parallel" and press [Enter] to confirm.
2. After the parameter setting is completed, the instrument will restart automati-
cally. After restarting, the device will enter the 2-channel parallel combination
mode.

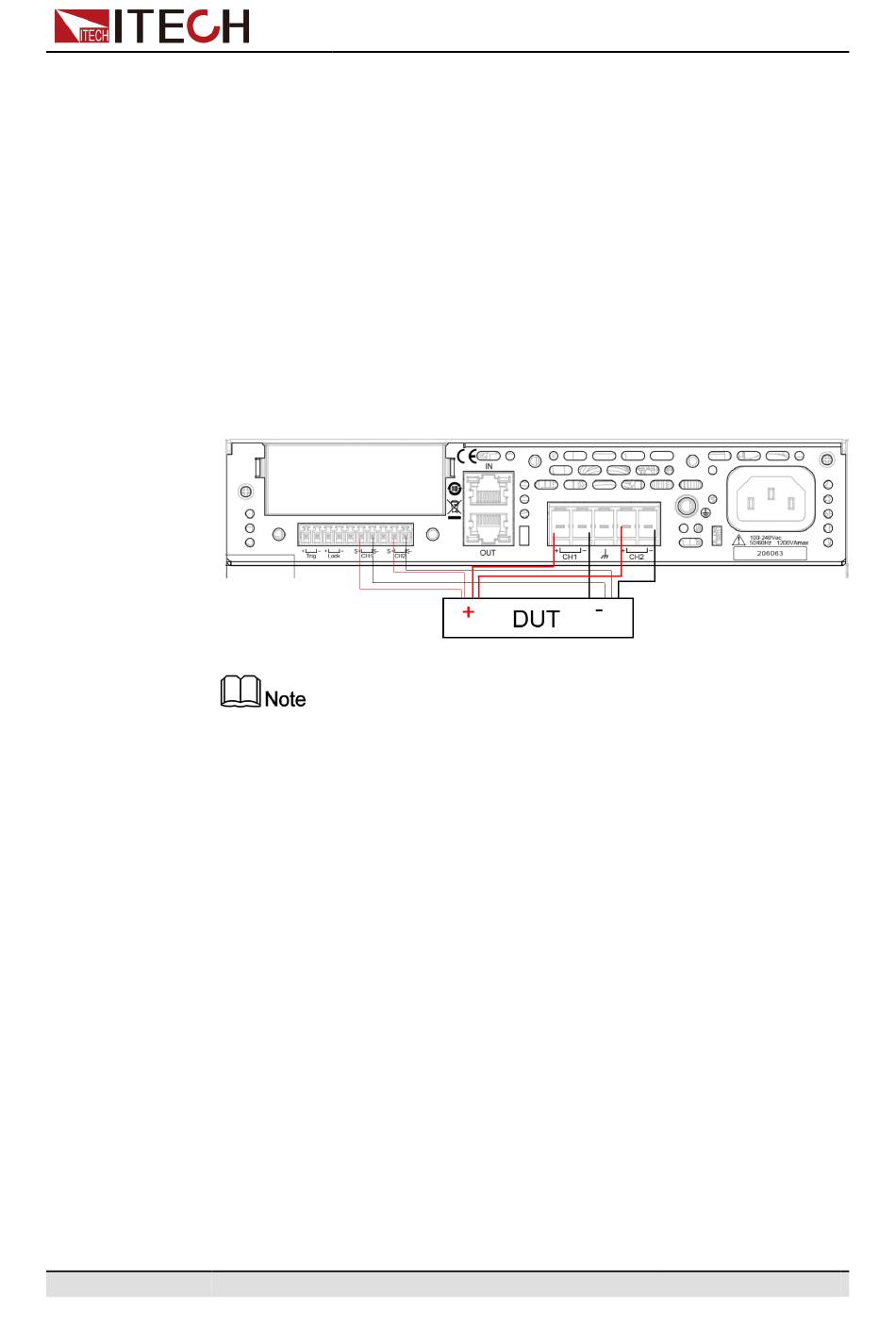

3. Refer to the figure below to connect the DUT, and live wiring is prohibited.
The connection method shown in the figure above is the wiring method
when the Sense is turned on, that is, the Sense terminals of the two chan-
nels are respectively connected to the DUT.
If you want to change the parallel combination mode to the single mode,
perform the following steps:
1. Switch the instrument to Single mode.
a. Press the [Shift]+[Display] (System) key to enter the system menu.
b. Press the left and right direction keys or rotate the knob, select "Con-
nect", and press [Enter] to enter the edit mode.
c. Rotate the knob, select Single, and press [Enter] to confirm.
2. After the parameter setting is completed, the instrument will restart automati-
cally. After restarting, the device will enter the 2-channel independent mode.
