2.2 Instrument Size Introduction

The instrument should be installed at well-ventilated and rational-sized space.
Please select appropriate space for installation based on the power supply size.

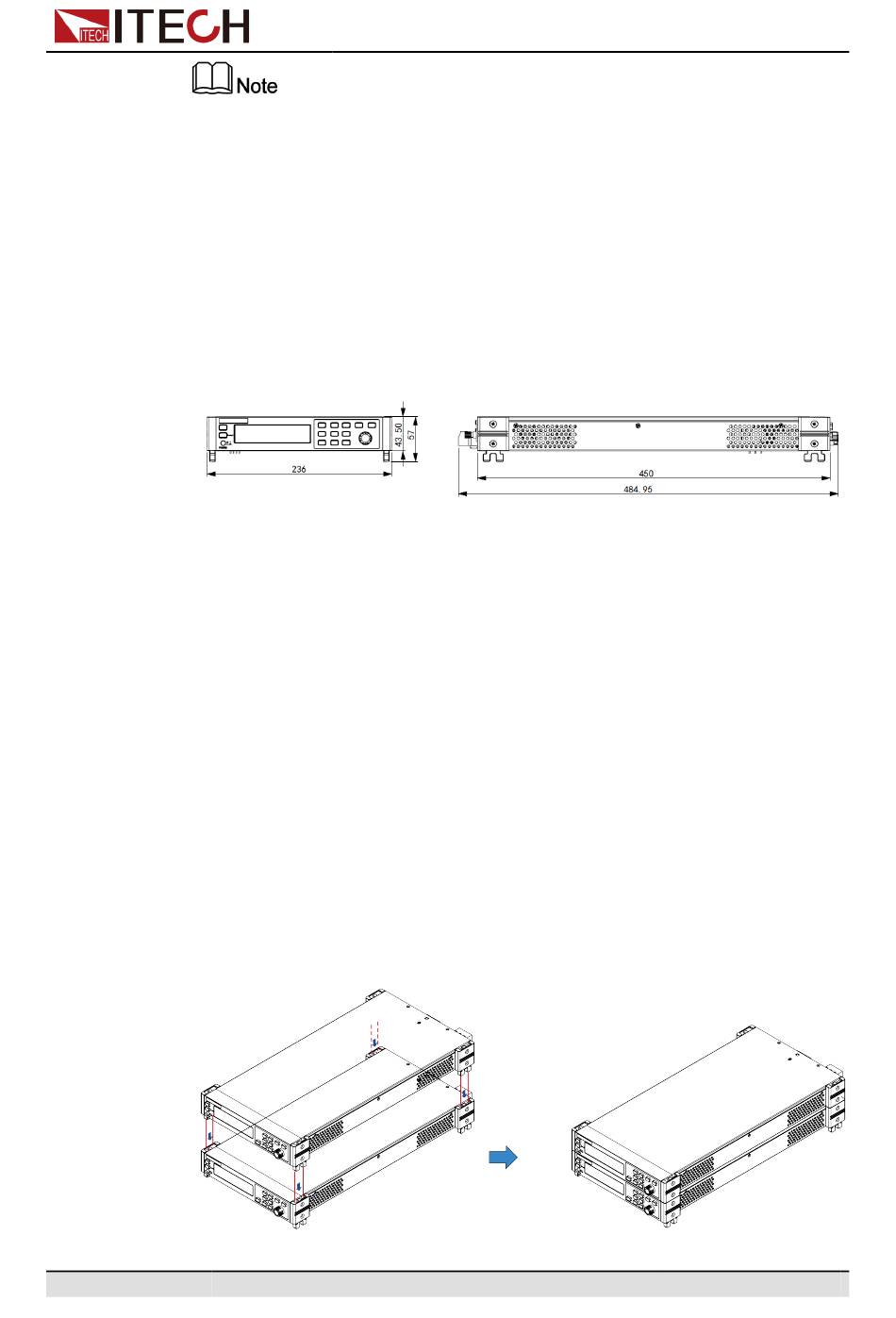

The detailed sizes are shown as below.

2.3 Rack Mounting

This instrument can be installed on standard 19-inch rack. ITECH provides user
with optional mount kit IT-E154. The detailed operation please refer to the IT-
E154 User Manual of your mount kit.

2.4 Stacking Instruments

This series power supply adopts patented appearance design with a side venti-
lation structure. Thanks to the flexible modular architecture, the instruments can
be directly and easily stacked on the desk without purchasing any accessories.
A maximum of 10 instruments can be stacked. The stacking schematic diagram
is as shown below.
Upon verification of the shipment, keep the package and relevant contents
thereof in a safe place. When returning the instrument for warranty service or
repair, the specified packing requirements shall be met.
