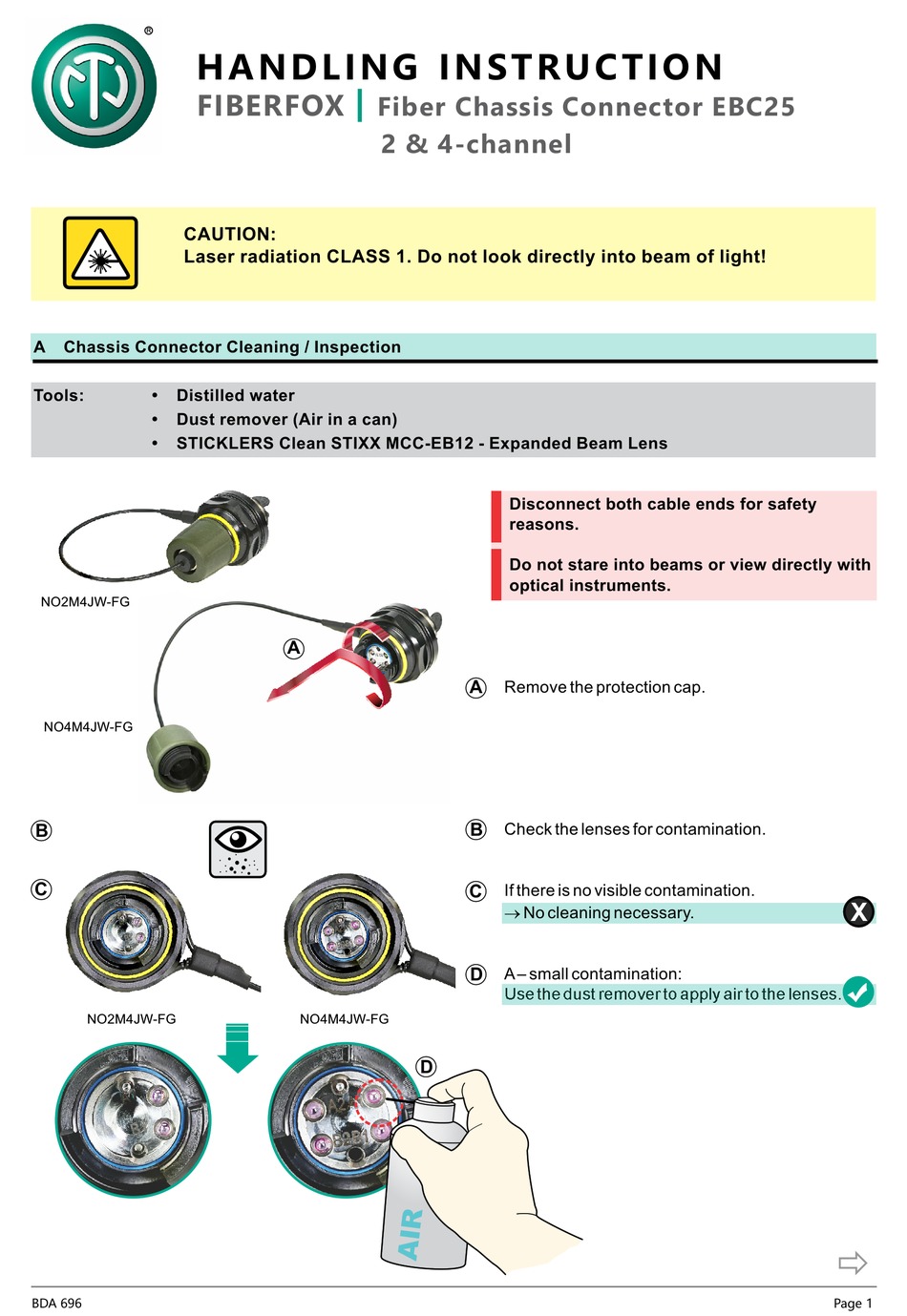

NEUTRIK FIBERFOX EBC25 Handling Instruction

R
H A N D L I N G I N S T R U C T I O N
FIBERFOX
CAUTION:
Laser radiation CLASS 1. Do not look directly into beam of light!
A Chassis Connector Cleaning
Ÿ
Tools: Distilled water
Ÿ
Dust remover (Air in a can)
Ÿ
STICKLERS Clean STIXX MCC-EB12 - Expanded Beam Lens
NO2M4JW-FG
NO4M4JW-FG
B
C
NO M4JW-FG 2
BDA 696
|

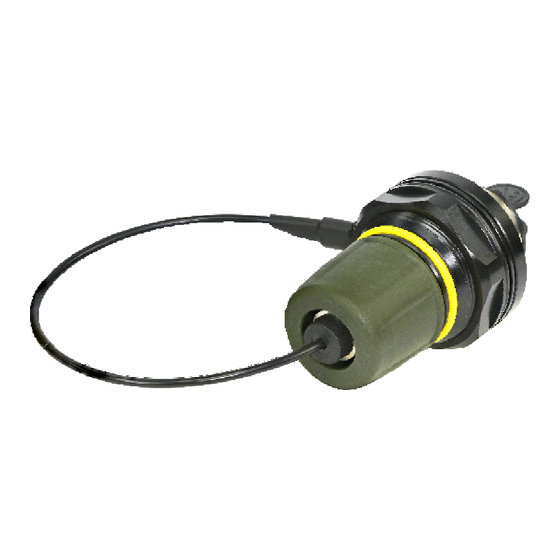

Fiber Chassis Connector EBC25
2 & 4-channel
/ Inspection
A
NO4M4JW-FG
D
Disconnect both cable ends for safety
reasons.
Do not stare into beams or view directly with
optical instruments.
A
Remove the protection cap.
B Check the lenses for contamination.
If there is no visible contamination.
C
® No cleaning necessary.
A – small contamination:
D
Use the dust remover to apply air to the lenses.
X
ð
Page 1
