R

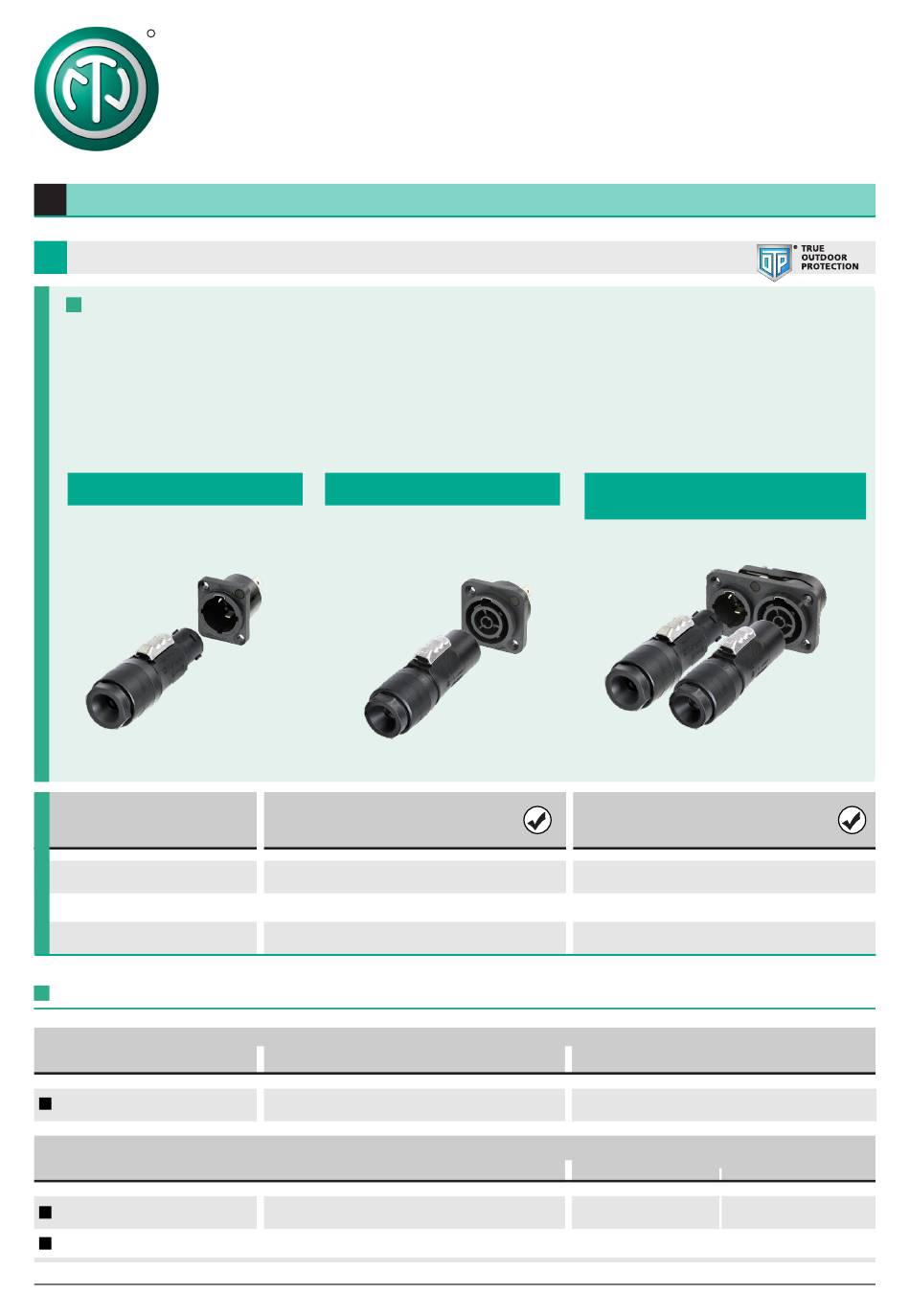

PRODUCT MANUAL

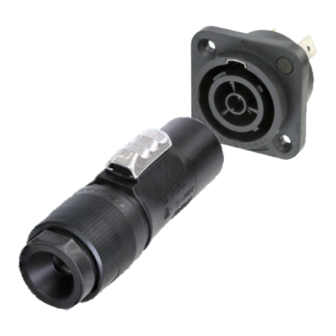

powerCON TRUE1 TOP NAC3FX-W-TOP-L
1
APPLICATION INSTRUCTION
P
IP 65 RATED
APPLICATION:
The powerCON TRUE1 system is certified as appliance couplers with breaking capacity according to
®
·
IEC 60320-1, EN IEC 60320-1, UL 60320-1, CSA C22.2 No. 60320-1.
It serves to supply power to an appliance and from an appliance to other equipment.
·
To be installed by qualified person only.
·
Appliance couplers acc. to IEC 60320-1 are suitable to be used in cord sets and interconnection cord
·
sets acc. to IEC 60799
POWER IN
APPLIANCE INLET
NAC3MPX-TOP
NAC3MPX-WOT-TOP
CONNECTOR
NAC3FX-W-TOP-L
Products are in
compliance with:
Ratings:
Conductor cross section:
Cable O.D.:
CABLE LIST
CABLE LIST
Cable:
IEC/EN 60320-1
H07RN-F
Cable:
UL 60320-1, CAN/CSA-C22.2 No. 60320-1
SOOW
SJOOW
BDA 624 V5
®
®
POWER OUT
APPLIANCE OUTLET
NAC3FPX-TOP
NAC3FPX-WOT-TOP
NAC3FPX-ST-TOP
PLUG CONNECTOR
NAC3MX-W-TOP-L
IEC 60320-1
EN IEC 60320-1
16A 250V AC
2
2.5 mm
10.0 - 16.0 mm (0.39 - 0.63")
3 x 2.5 mm
ü
-
-
|
®
POWER IN / POWER OUT
u
Combination
APPLIANCE INLET / APPLIANCE OUTLET
NAC3PX-TOP
CONNECTOR
NAC3FX-W-TOP-L
UL 60320-1
CSA C22.2 No. 60320-1
20A 250V AC
14 - 12 AWG
10.0 - 16.0 mm (0.39 - 0.63")
2
14/3 AWG
PLUG CONNECTOR
NAC3MX-W-TOP-L
-
12/3 AWG
ü
ü
ü
-
ð
Page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for NEUTRIK powerCON TRUE1 TOP
Summary of Contents for NEUTRIK powerCON TRUE1 TOP
- Page 1 PRODUCT MANUAL powerCON TRUE1 TOP NAC3FX-W-TOP-L ® ® APPLICATION INSTRUCTION IP 65 RATED APPLICATION: The powerCON TRUE1 system is certified as appliance couplers with breaking capacity according to ® ® · IEC 60320-1, EN IEC 60320-1, UL 60320-1, CSA C22.2 No. 60320-1.
- Page 2 PRODUCT MANUAL - powerCON TRUE1 NAC3FX-W-TOP-L ® ® ASSEMBLY INFORMATION Place the bushing (1) and chuck (2) over the cable. Important: Chuck and Bushing cannot be placed over the cable after the assembly of the insert. (3) For easier assembly please use a cable lubricante.
- Page 3 Neutrik HTLACA Torque Value 2.5 Nm (22 inch pound / 1.8 lb-ft) Hold the connector with the NEUTRIK tool (5) and tighten bushing with the NEUTRIK tool (6) as shown. For an exact mounting position use a torque wrench with 27 mm (1 1/8 inch) hex bit (7) and tighten it with 2.5 Nm (22 inch pound / 1.8 lb-ft).
- Page 4 Before plugging in, check the contact area for dry surfaces. Product surfaces may cause burns at elevated ambient temperatures. Ensure the use of appropriate protective equipment. Neutrik products should only be combined with products from Neutrik Group brands. Cleaning Clean only with dry and lint-free materials or compressed air.
