R

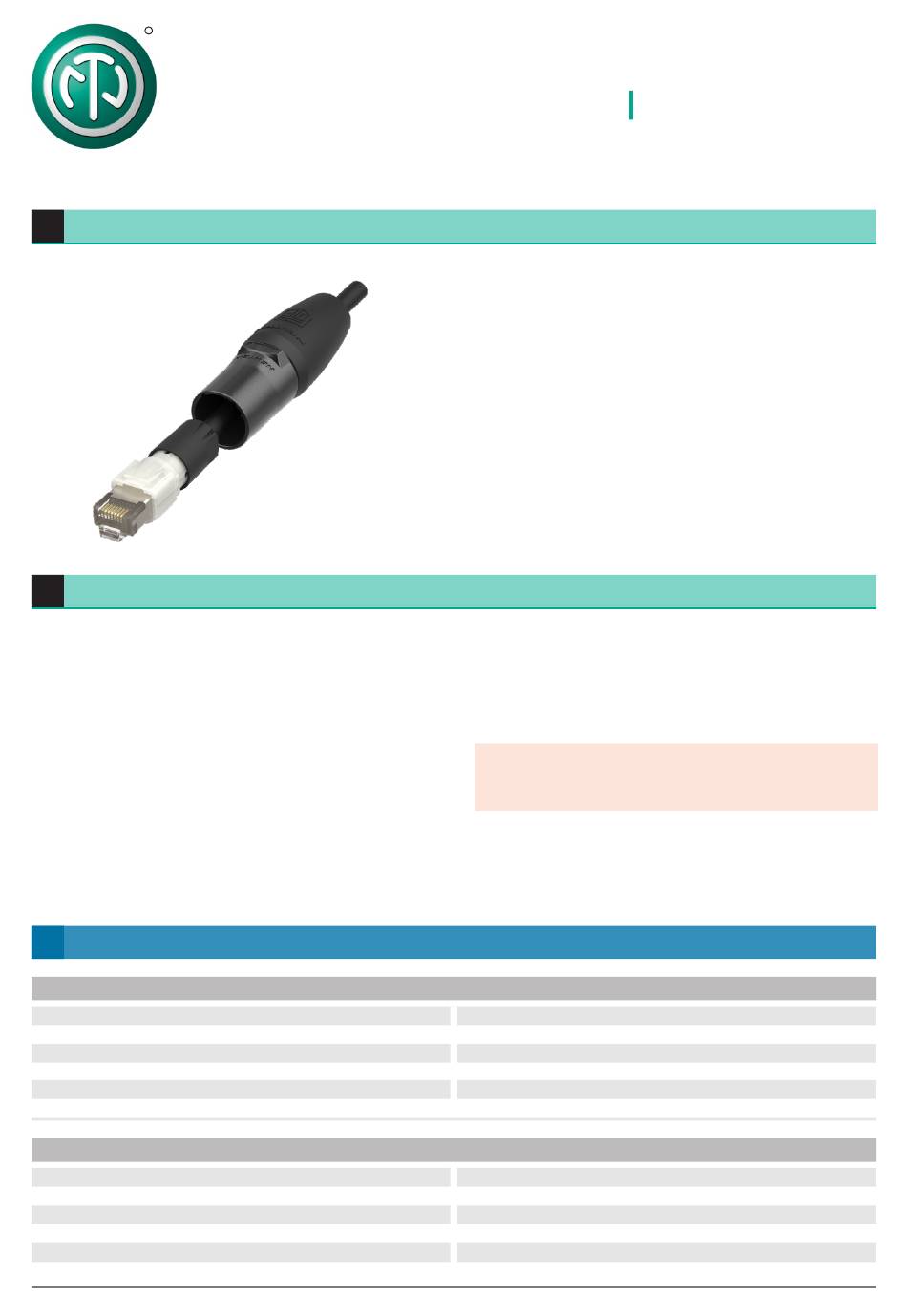

PRODUCT MANUAL
etherCON TOP Cable Connector
1

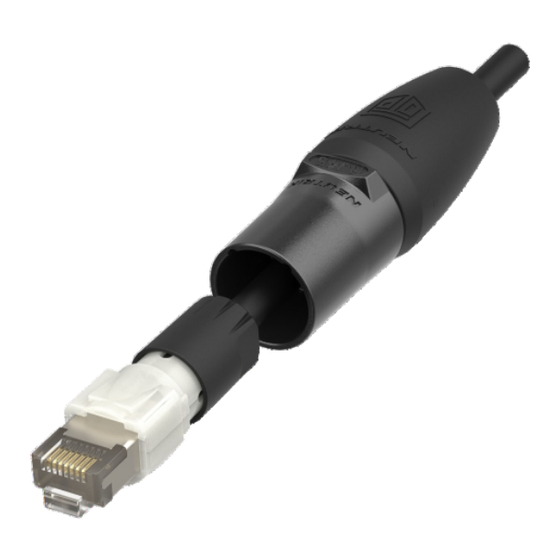

PRODUCT EXAMPLE
2
GENERAL
Introducing the latest innovation in ethernet
connectivity, expanding the NEUTRIK etherCON
TOP portfolio. Designed to withstand the harshest
outdoor conditions, this connector combines
d u r a b i l i t y w i t h v e r s a t i l i t y, e n s u r i n g r e l i a b l e
performance in any environment and application.
With this unique design, the TOP connector allows
for the first time to easily retract its shell, providing
compatibility with standard RJ45 receptacles. This
feature allows flexible and universal usage in
various applications.
A
TECHNICAL DATA
Product
Title
Product family
Connection type
Gender
IMPORTANT
Mechanical
Cable O.D.
Insertion force
Withdrawal force
Lifetime
BDA 712 V2
®
NE8MXR-B-TOP
The product is a rugged RJ45 carrier cable
connector with locking feature (receptacle side)
for outdoor use.
It offers easy retracting of the shell to set free the
RJ45 plug to allow connectivity with commodity
RJ45 receptacles.
Please note that the RJ45 carrier cable connector
does not include an RJ45 plug.
It is designed for use with non pre-assembled
cables only.
ATTENTION:
Does not intermate with the CAT6 receptacle
NE8FDY-C6 and NE8FDY-C6-B.
NE8MXR-B-TOP
etherCON
RJ45 carrier cable connector
male
Cable connectors do not include RJ45 plug.
RJ 45 cable assembly must be provided by end user!
5.5 - 8.0 mm
≤ 30 N
≤ 30 N
min. 1`000 mating cycles
min. 100 retracting cycles
NE8MXR-B-TOP
®
Page 1
Advertisement
Related Manuals for NEUTRIK etherCON NE8MXR-B-TOP
Summary of Contents for NEUTRIK etherCON NE8MXR-B-TOP
- Page 1 GENERAL Introducing the latest innovation in ethernet Please note that the RJ45 carrier cable connector connectivity, expanding the NEUTRIK etherCON does not include an RJ45 plug. TOP portfolio. Designed to withstand the harshest It is designed for use with non pre-assembled outdoor conditions, this connector combines cables only.
-
Page 2: Assembly Instruction
etherCON TOP Cable Connector NE8MXR-B-TOP Material Boot Thermoplastic elastomer (TPE) Shell Zinc diecast (ZnAl4Cu1) Strain relief Polyketon (PK) Sleeve 'Polyamid (PA6, Gf15%) Environmetal Protection class IP65 (mated) IP65 (closed sealing cap) Temperature range -30 °C to +80 °C Read the operating instructions carefully, and observe the safety instructions in particular. If you do not follow the safety instructions and the information on proper handling in this operating manual, we accept no liability for any resulting personal injury or damage to property. - Page 3 etherCON TOP Cable Connector NE8MXR-B-TOP Step 3 ASSEMBLE THE CHUCK Slide the clamping sleeve over the cable. Make sure the clamping sleeve is in the correct position. See picture. Step 4 ASSEMBLE RJ45 PLUG Assembl the RJ45 plug on the cable. Step 5 ASSEMBLE CHUCK Position the chuck onto the RJ 45.
- Page 4 Ensure the use of appropriate personal protective equipment during the assembly and processing of the product. Neutrik components must only be assembled with designated and specified parts. Replacement parts are suitable only when used in combination with the designated components.
- Page 5 Product surfaces may cause burns at elevated ambient temperatures. Ensure the use of appropriate protective equipment. Neutrik products and components should only be combined with designated Neutrik Group brands and components. To ensure IP65 protection in the unconnected state, use the designated accessories.
