Easycon
Assembly Instructions
Female
#2
1
2.
1.
15
15
#3
#3
1
SNAP
XLR Cable Connector

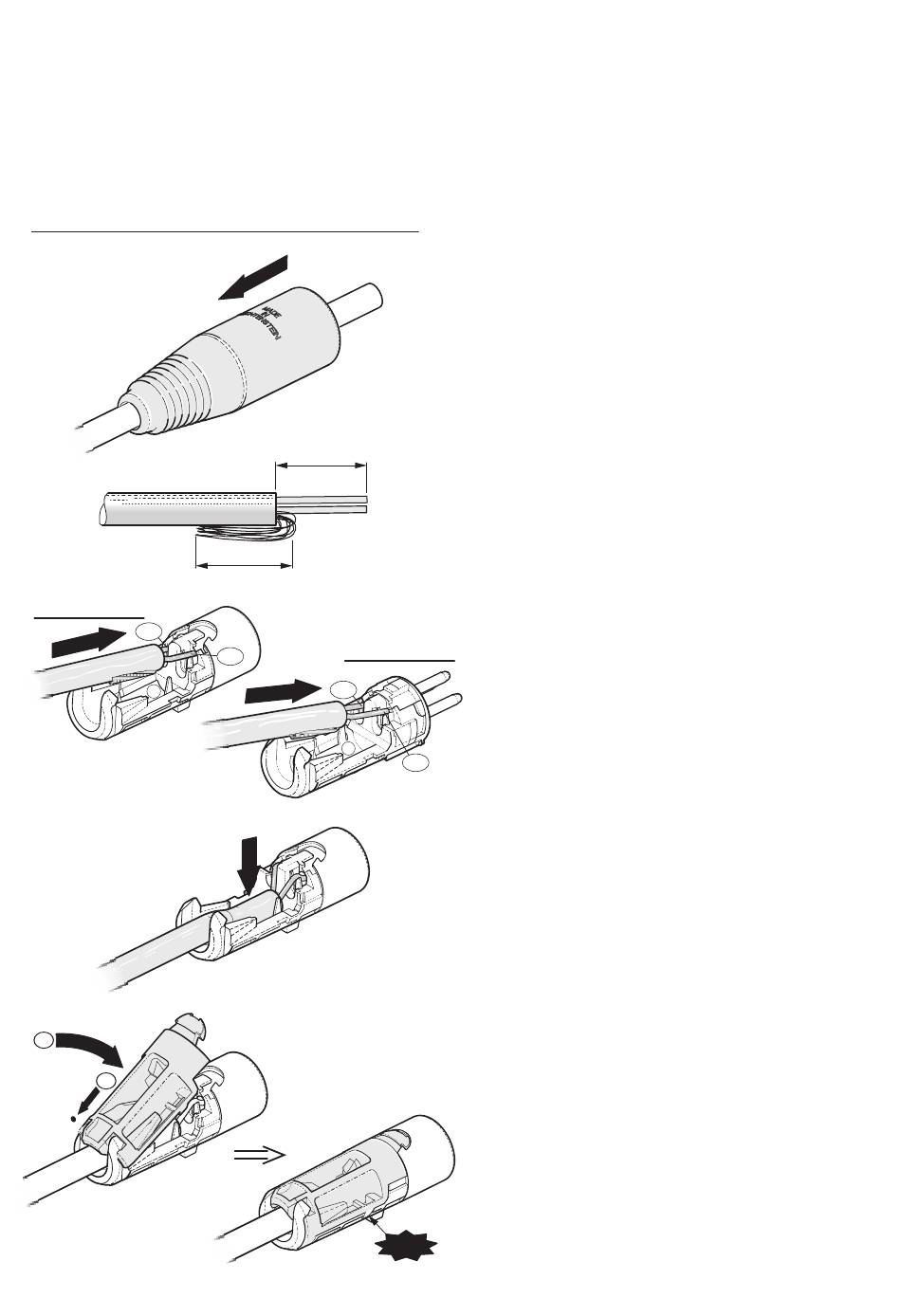

- First slide the housing onto the cable.
- Strip cable jacket and wires according
to figure.
- Twist the shielding strands and bend
the shield back over the jacket.
Male
- Slide the prepared end of the cable into
the contact holes.
#2
- Position the cable in the insert so that
the shield is between the ground contact
and the jacket.
- Hold cable and insert in this position and
put the cable retention element onto the
insert .
- Press the cable retention down to the
base part until it snaps in.
EZ Series
IDC - Version
