NEUTRIK NL4FX Assembly Instructions/Use And Care Manual

R
ASSEMBLY INSTRUCTION
NL4FX / NL4FRX

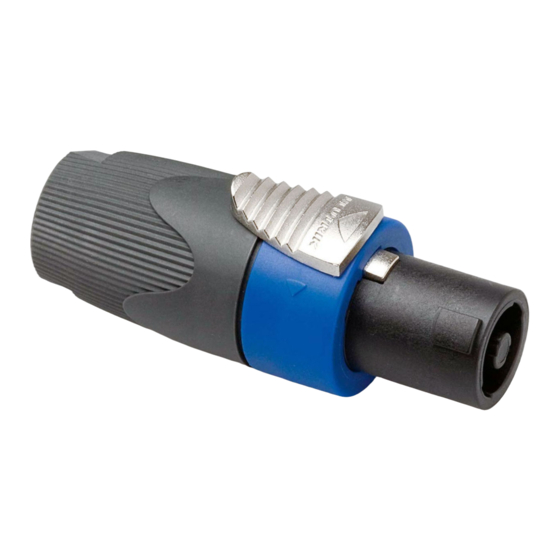

speakON SPX Series Lockable Loudspeaker Connector
IMPORTANT SAFETY INSTRUCTION
Electrical Rating acc. UL & CSA:
USR: 40A/250V, CNR: 25A/250V
A
B
C
D
E
®
"CAUTION: NOT FOR INTERRUPTING CURRENT"
"
ATTENTION: NE PAS UTILISER POUR COUPER LE COURANT"
25 mm [1.0"]
12 mm [0.5"]
1-
2+

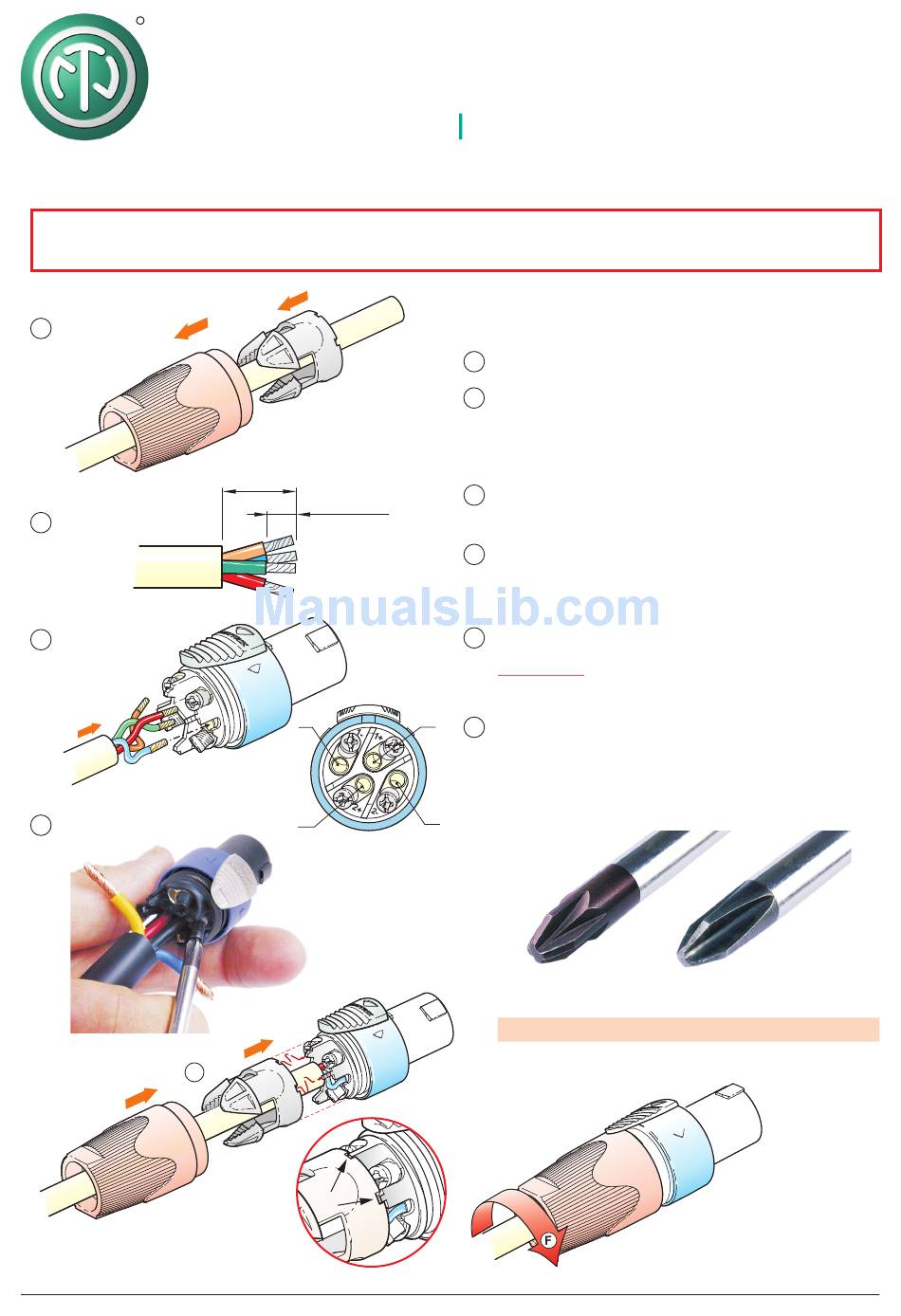

Assembly of the Connector:

A Place bushing and chuck over cable.
B
Prepare cable as shown.
Important is the stripping length of 25 mm and
12 mm.
Insert wires into terminals and secure clamp
C
terminals with screw driver (Pozidrive ).
D
For easy wiring especially on big cables, first
screw on the inner conntacts 1+ and 2+ and
afterwards the outer contacts 1- and 2- !
E
Push chuck up to housing .
Important: Align the chuck by positioning
the nose into the recess.
1+
F
Tighten the bushing
INFO to the screw driver:
2-
Pozidrive # 1
Page 1
®
DO NOT USE!
Philips
