R

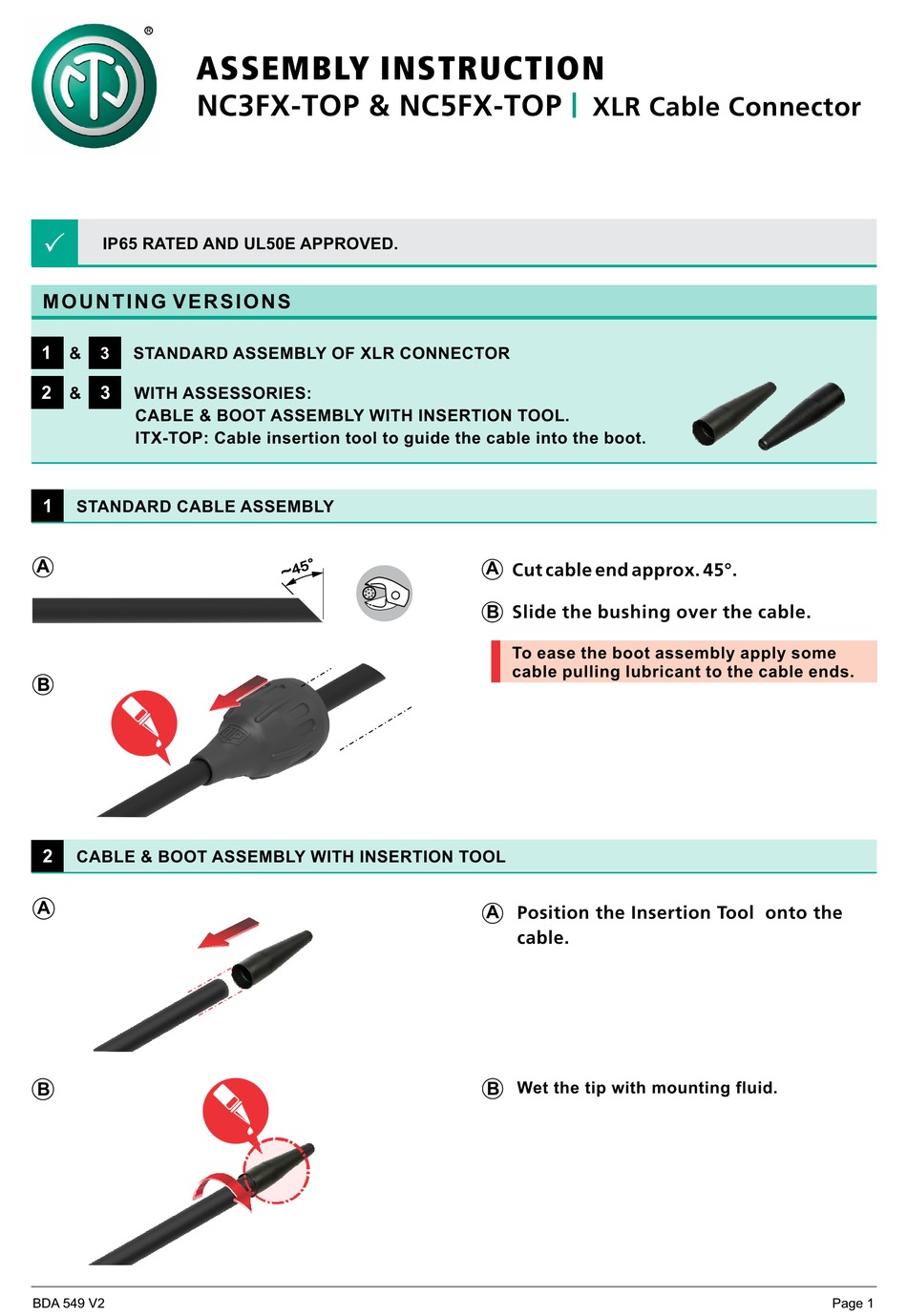

ASSEMBLY INSTRUCTION
NC3FX-TOP & NC5FX-TOP
P
IP65 RATED AND UL50E APPROVED.
M O U N T I N G V E R S I O N S
1
&
3
STANDARD ASSEMBLY OF XLR CONNECTOR
2
3
&
WITH ASSESSORIES:
CABLE & BOOT ASSEMBLY WITH INSERTION TOOL.
ITX-TOP: Cable insertion tool to guide the cable into the boot.
1
STANDARD CABLE ASSEMBLY
2
CABLE & BOOT ASSEMBLY WITH INSERTION TOOL
A
B
BDA 549 V2
|
XLR Cable Connector
A
Cut cable end approx. 45°.
Slide the bushing over the cable.
B
To ease the boot assembly apply some
cable pulling lubricant to the cable ends.
A
Position
the
Insertion Tool onto
cable.
B
Wet the tip with mounting fluid.
the
Page 1
Advertisement
Related Manuals for NEUTRIK NC3FX-TOP
Summary of Contents for NEUTRIK NC3FX-TOP
- Page 1 ASSEMBLY INSTRUCTION NC3FX-TOP & NC5FX-TOP XLR Cable Connector IP65 RATED AND UL50E APPROVED. M O U N T I N G V E R S I O N S & STANDARD ASSEMBLY OF XLR CONNECTOR & WITH ASSESSORIES: CABLE & BOOT ASSEMBLY WITH INSERTION TOOL.
- Page 2 XLR TOP NC3FX-TOP Slide the cable with the tool throught the boot. Remove the tool. ASSEMBLY INSERT AND CONNECTOR Cable O.D. Cable O.D. : 5.0 : 5.0 - 8.0 mm - 8.0 mm Prepare cable as shown. [0.19 - 0.32”] [0.19 - 0.32”]...
- Page 3 91 /982 05 43 424 +91 22 26163 540 Draft. Nr.: BDA 549 V2 Update: 26.11 . 201 Data subject to change without prior notice. 201 © NEUTRIK . ALL RIGHTS RESERVED. ® NEUTRIK is a registered trademark. ® www.neutrik.com Page 3...
