R

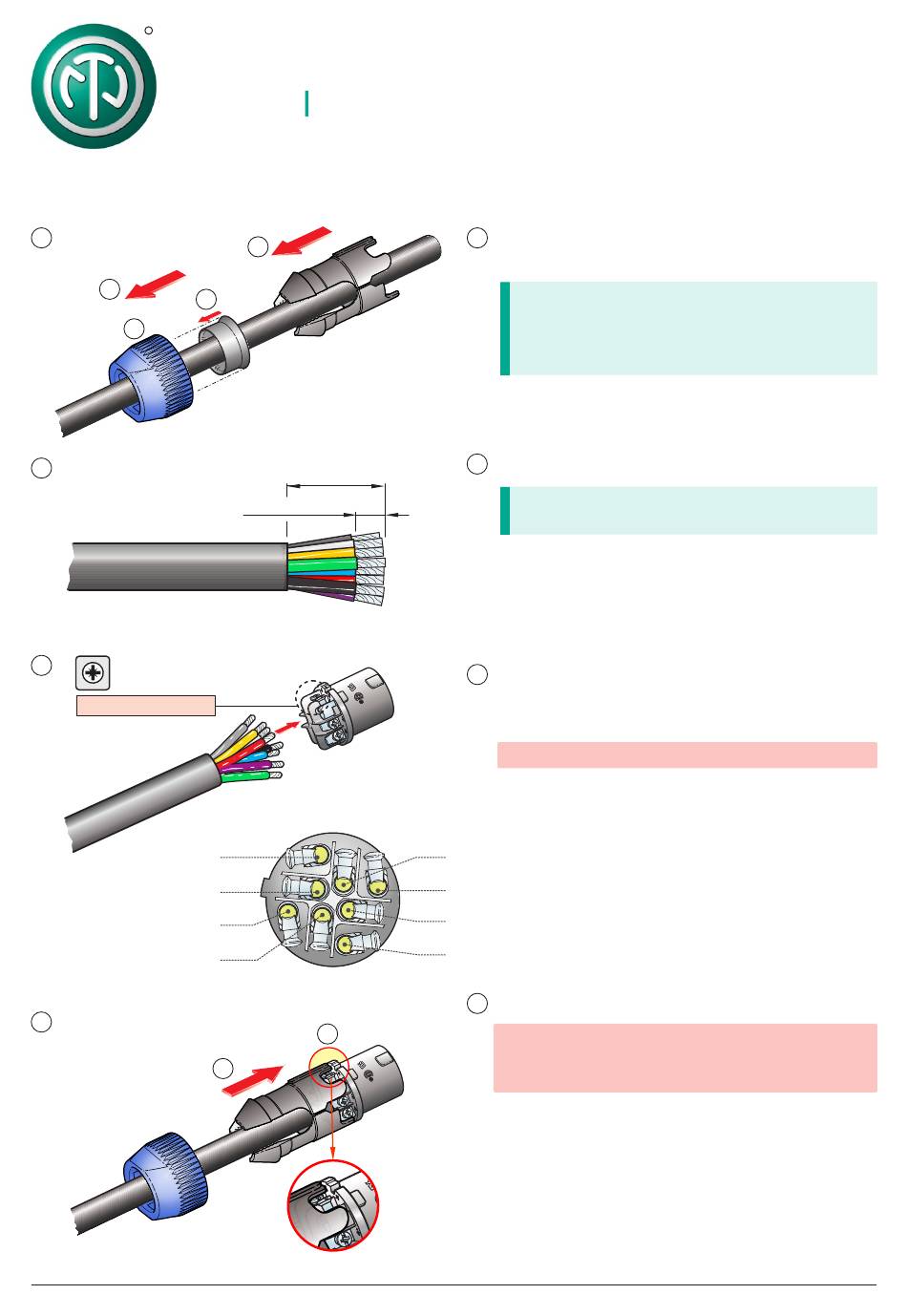

ASSEMBLY INSTRUCTION
N L 8 F C
A
1.
b
a
B
C
POZIDRIV® #1
Torque Value 0.5 Nm
D
BDA 456
speakON - Lockable Loudspeaker Connector
2.
25 mm [0.984"]
8 mm [0.315"]
WIRING
4-
4+
4-
1+
1+
3-
1-
1-
3+
2-
2+
2+
a
1.
®
A
Place the bushing (1) and the chuck (2) over
the cable.
Bushing (a) with reducing sleeve (b):
Bushing (a):
B
Prepare the cable as shown.
Cable O.D.: 8.0 - 20.0 mm
Wire size:
Insert the wires into the terminals and fasten
C
the clamping device with a screw driver
(POZIDRIV # 1).
®
Max. torque 0.5 Nm (0.37 lb-ft).
4+
3-
3+
2-
D
Slide the chuck (1) onto the insert.
Important:
(a)
Align the chuck by positioning the nose into
the recess.
8.0 - 15.0 mm
[0.315" - 0.591"]
15.0 - 20.0 mm
[0.591" - 0.787"]
[0.315" - 0.787"]
4 mm
2
(AWG 12)
ð
