R

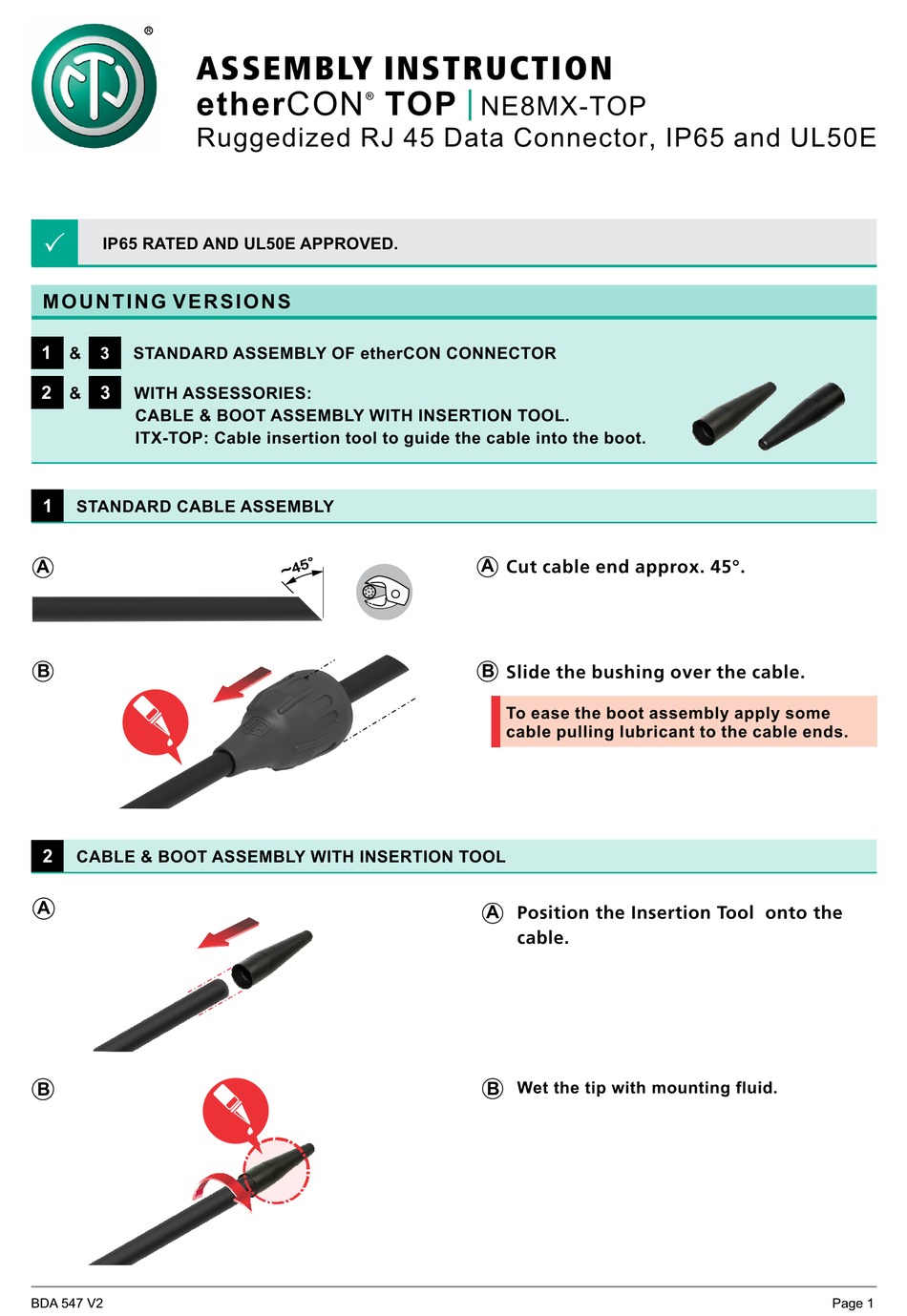

ASSEMBLY INSTRUCTION
etherCON
Ruggedized RJ 45 Data Connector
P
IP65 RATED AND UL50E APPROVED.
M O U N T I N G V E R S I O N S
1
&
3
STANDARD ASSEMBLY OF etherCON CONNECTOR
2
3
&
WITH ASSESSORIES:
CABLE & BOOT ASSEMBLY WITH INSERTION TOOL.
ITX-TOP: Cable insertion tool to guide the cable into the boot.
1
STANDARD CABLE ASSEMBLY
A
B
2
CABLE & BOOT ASSEMBLY WITH INSERTION TOOL
A
B
BDA 547 V2
|
®
TOP
NE8MX-TOP
A
Cut cable end approx. 45°.
B
Slide the bushing over the cable.
To ease the boot assembly apply some
cable pulling lubricant to the cable ends.
A
Position
cable.
B
Wet the tip with mounting fluid.
, IP65 and UL50E
the
Insertion Tool onto
the
Page 1
Advertisement
Related Manuals for NEUTRIK etherCON TOP
Summary of Contents for NEUTRIK etherCON TOP
- Page 1 ASSEMBLY INSTRUCTION etherCON ® NE8MX-TOP Ruggedized RJ 45 Data Connector , IP65 and UL50E IP65 RATED AND UL50E APPROVED. M O U N T I N G V E R S I O N S & STANDARD ASSEMBLY OF etherCON CONNECTOR &...
- Page 2 etherCON NE8MX-TOP Slide the cable with the tool throught the boot. Remove the tool. ASSEMBLY RJ45 PLUG AND CONNECTOR Assembl the RJ45 plug on the cable. Cut off release tab of RJ45 plug. chuck onto the cable. Align the opening with the contact side. STANDARD VERSION Position the RJ45 in the chuck.
- Page 3 NEUTRIK India Pvt. Ltd. 91 /982 05 43 424 +91 22 26163 540 Draft. Nr.: BDA 547 V2 Update: 28.11.2019 Data subject to change without prior notice. 201 © NEUTRIK . ALL RIGHTS RESERVED. ® NEUTRIK are registered trademark. ® www.neutrik.com Page 3...
