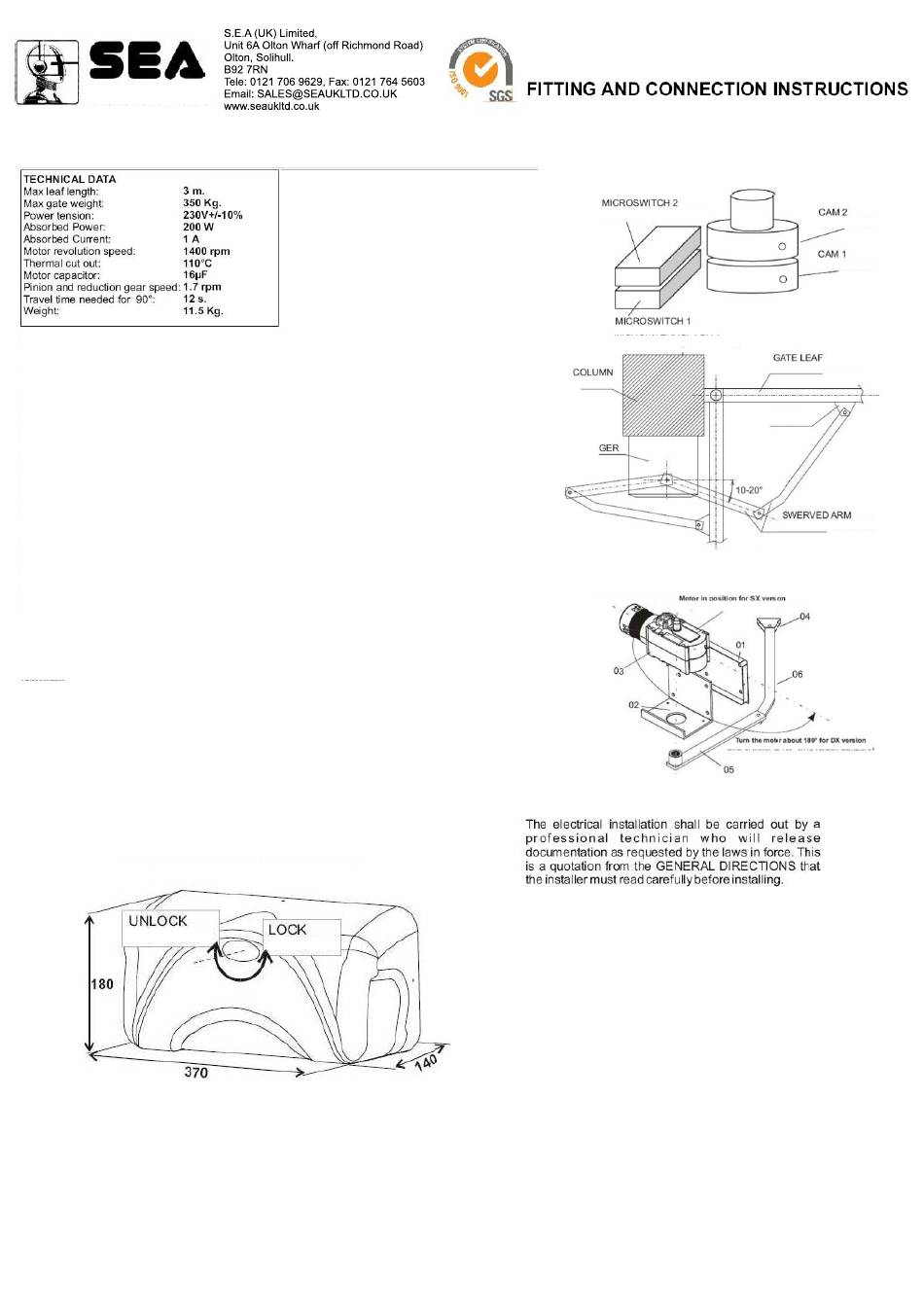

GER INSTALLATION
to have perfect leaf movement (keep tools and mounting bolts for the fixing plate to the
column handy).
- GER can open inwardly or outwardly and can be installed on both left or right.
In Fig.3 you will find the mounting of the motor in the sx version, for the dx version turn
the motor 180° always leaving the splined shaft in the low position.
- GER si provided with COVER SUPPORT PLATE (1), MOUNTING PLATE (2),
MOTOR GEAR BOX (3), COVER and accessories fro a correct instillation
- Place the motor support plate on the column (See Fig.1), so that the 4 holes of the
plate on at the left side and then make 4 holes D.10 on the column correspondent to
the 4 holes on the plate
-Insert the 4 mounting bolts in the holes, place the case fixing plate back and the
mounting plate upon it (2) checking that the central hole is oriented down and then fix
everything to the column.
-Put the motor gear box on the fixing plate with the splined shaft oriented down, the
release lever pointing up and the power supply cable oriented outward (opposed to
the leaf). Fix the motor gear box with the screws provided(m6x130TCE).
-Use the release lever with the purposefully provided key by turning anticlockwise to
release the motor-gear box. install the articulated arm (which is composed by: ARM
WITH COLLAR(5), SWERVED ARM(6) and HINGE(4) on the splined shaft(under the
motor) and fix it with screw provided.
- Check that the gate leaf is completely closed and then rotate the articulated arm in
direction of gate until reaching the exact position (refer to fig.1) and pin point on the
leaf the exact spot where the hinge must be fixed.
-Don't fix the hinge bracket immediately but open and close the leaf to check that the
manoeuvre is smooth. if problems arise re-install the hinge so to find its ideal
placement.
-The installation of GER cover can be carried out after wiring remove the articulated
arm, insert the protective case, remount the articulated arm and fix all GER parts.
MANUAL RELEASE
TO UNLOCK :
1) Insert the key into the manual release into the front of the motor and turn anti-
clockwise.
2)open and close the leaf Manually.
TO reactivate:
Insert the key into the manual release and turn clockwise
SEA GER
Page 1 of 2
GER
Fig 3
LIMIT SWITCH ADJUSTMENT (if provided) FIG.2
- Carry out the whole of procedures explained in the paragraph "GER
INSTALLATION" up to point 8
- Get the leaf to limit switch position in closing, block the motor by acting
on the release lever with the key provided and adjust the first cam (the
cams have adjustment threads M5x8 so use the right Allen key)so that
the first micro-switch is closed.
- Release the motor and proceed as before with the leaf in the opening
position. Remember that you have to adjust the second cam which
effects the second micro-switch, make an opening and closing
manoeuver to check that the micro-switchs are timing perfectly. If
problems arise, repeat the procedures.
-Take the leaf to the limit switch in closing position and lock the motor,
after wiring is completed.
Disconnect the articulated arm, insert the protective case and finish the
installation off by reattaching the articulated arm in the same position.
Fig 1
Fig 2
HINGE
BRACKET
