Summary of Contents for Hollyland LARK MAX
- Page 1 LARK MAX Quick Guide V1.0.0...

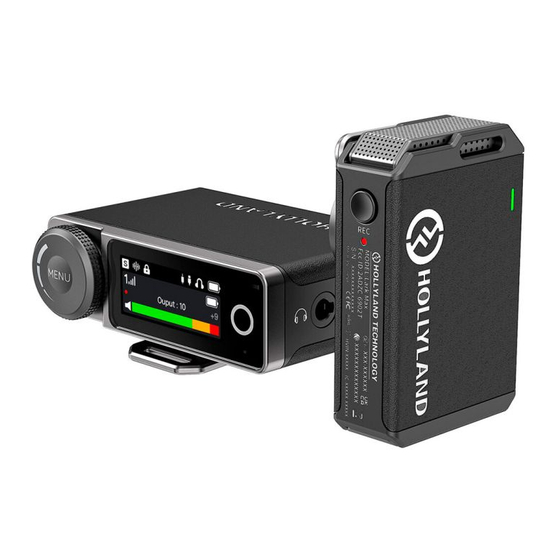

- Page 2 Introduction Thank you for purchasing Hollyland LARK MAX wireless microphone system. Please read this quick guide carefully before using the product. For more detailed information, please scan the code to view the product user manual.
-
Page 3: Product Operations
Product Operations The preferred position for attaching the transmitter is the collar near the speaker’s neck area. If the speaker’s voice is louder, position the transmitter in the upper chest area. The transmitter can be attached via its back clip or the clip magnet. Note: Placement of the transmitter in different positions will result in recorded sound volume fluctua- tions. - Page 4 Product Operations Connecting the Receiver to an Android Connecting the Receiver to an iPhone Phone with a USB-C Interface 1. Connect the receiver to an iPhone using a USB-C to Lightning cable. 1. Connect the receiver to an Android phone with a USB-C interface using a 2.
- Page 5 Product Operations Connecting the Receiver to a Camera 1. Attach the receiver to a camera via the hot shoe or cold shoe using the back clip. 2. Connect the 3.5mm audio output interface on the receiver to the 3.5mm audio input inter- face on the camera using a 3.5mm TRS to 3.5mm TRS cable.
- Page 6 Product Operations Pairing The transmitter and the receiver are paired by default. Follow either of the following two ways to pair the transmitter and the receiver if they are disconnected. 1. Auto pairing: Place the transmitter and the receiver in the charging case, and they will pair automatically.
-
Page 7: Product Functions
Product Functions Noise Cancellation Recording Press the noise cancellation button on the Press the REC button on the transmitter to transmitter to enable the noise cancellation enable the recording function. In this case, function. In this case, the transmitter status the transmitter REC indicator light turns steady red. - Page 8 Product Functions Charging and Storage If the transmitter status indicator light flashes red, please charge the transmitter by placing it in the charging case or via the USB-C interface.
- Page 9 Product Functions It is always recommended to place the transmitter and the receiver in the charging case for charging and storage after each use. Battery Level Indicator Light Description of the Charging Case Pattern Battery Level One LED ON, flashing red Low battery.
