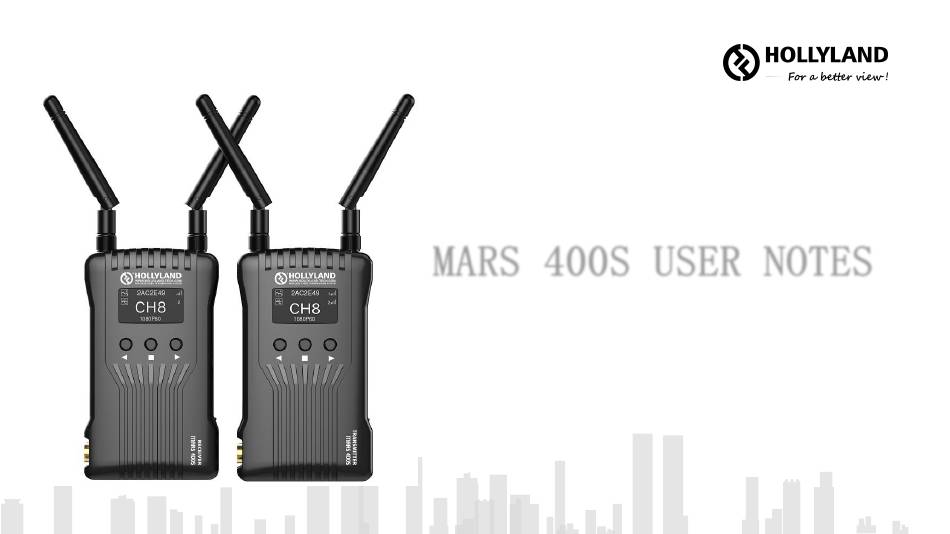

MARS 400S USER NOTES
SHENZHEN HOLLYLAND TECHNOLOGY CO.,LTD

Advertisement

loading
Need help?

Need help?

Do you have a question about the MARS 400S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hollyland MARS 400S

Summary of Contents for Hollyland MARS 400S

  • Page 1 MARS 400S USER NOTES SHENZHEN HOLLYLAND TECHNOLOGY CO.,LTD...

  • Page 2: Key Features

    KEY FEATURES l Multiple Platforms Monitoring: support 1 transmitter with 2 receivers, or 1 transmitter + 1 receiver+ 4 iOS or Android smartphones and tablets. The transmission range is up to 400ft. l Low Latency: less than 0.1s. l SDI&HDMI: support both SDI&HDMI on the transmitter and the receiver.
  • Page 3 KEY FEATURES l Strong Anti-Interference Capability l It has 8 channels and supports up to 5 systems working at the same time on one site. l C h a n n e l S c a n ： a u t o m a t i c a l l y s c a n t h e c u r r e n t environment to identify channels with or without inteference.
  • Page 4 PARAMETER Transmitter Receiver Interface HDMI Input HDMI Output SDI Input SDI Output 2 Antenna Interfaces (RP-SMA Male) 2 Antenna Interfaces (RP-SMA Male) DC Input, Type-C USB; DC Input, Type-C USB; Power Supply Range 6~16V DC 6~16V DC Power Consumption <10W <6W Net Weight 192g...

  • Page 5: Typical Setup

    TYPICAL SETUP HDMI Output HDMI Input SDI Output SDI Input Receiver 1 Transmitter HDMI Output 1 SDI Output Support up to 4 iOS or Android Receiver 2 smartphones and tablets.
  • Page 6 TRANSMITTER INTERFACE Device ID Mode Signal Strength Channel Video Format Down...
  • Page 7 TRANSMITTER INTERFACE Type-C Upgrade Interface HDMI Input Power Switch SDI Input DC Input...
  • Page 8 TRANSMITTER INTERFACE Battery Lock...
  • Page 9 RECERIVER INTERFACE Device ID Mode Signal Strength Channel Video Format Down...

  • Page 10: Receiver Interface

    RECEIVER INTERFACE Type-c Upgrade Interface HDMI Output Power Switch SDI Output DC Input...
  • Page 11 RECERIVER INTERFACE Battery Lock...
  • Page 12 TRANSMITTER MENU FUNCTION IMAGE MODE: prioritize the video monitoring over image quality when there is interference. BALANCE MODE: prioritize the video monitoring over low latency when there is interference SPEED MODE: balance the image quality and latency of the video monitoring when there is interference. LANGUAGE: support language switch between Chinese and English PAIR: pair the transmitter and the receiver...
  • Page 13 RECEIVER MENU FUNCTION Try to avoid channels with “x” since it indicates the channels are with interference LANGUAGE: support language switch between Chinese and English PAIR: pair the transmitter and the receiver Long press the “OK” button to enter the root menu on the receiver.

  • Page 14: Packing List

    PACKING LIST ① Transmitter ② Receiver ③ Antenna ④ Quick Guide ⑤ Cold Shoe ⑥ Expansion Accessory ⑦ DC Adapter ⑧ Type-C Converter...
  • Page 15 3. What does it indicate 2. How to pair the system 1. How to change the channel? when the battery status with a new receiver? appears on the screen? It’s the low-battery indicator. Go to SYSTEM SETTING, and select Press the channel button “UP” or It indicates the battery is low PAIR on both the transmitter and the “...
  • Page 16 5. How to monitor the video H o w t o c h e c k i f t h e 4. How to fast and easily shooting with the APP on an transmitter and the receiver i d e n t i f y c h a n n e l s w i t h iOS or Android device? (s) are from the same set?
