Teknim TFB-1166 Installation & User Manual page 3

TFB-1166
INTELLIGENT ADDRESSABLE MANUAL CALL POINT WITH BUILT IN ISOLATOR
Installation & User Manual
Release Date: 04/01/2021
Rev. Date: 14/02/2023 – Rev. No:04
Doc. Ref.: HM.Z.KLV.4468
GENERAL
✓ Read this manual carefully before operating the equipment and
save it for future reference.
✓ Observe all warnings and precautions specified in the operating
instructions. Follow all operating and usage instructions.
✓ Keep devices away from water and moisture.
CONDITIONS
Do not operate the device in extremely hot or cold environments
except under the following conditions.
Temperature: Between -10C ~ +70C
≤
93% at +40°C
Humidity:
SERVICE
Do not attempt to repair the appliance yourself, you may be exposed
to electric shock if you open the appliance cover.
In the event of any malfunction, contact your dealer or authorized
service. Technical intervention to the device must be performed by
qualified service personnel.
MALFUNCTIONS THAT REQUIRE TECHNİCAL SERVICE
In the event of any malfunction or in the following cases, contact
your authorized service or dealer.
✓ When the power cord is damaged,
✓ When any liquid flows into the device or any object falls,
✓ When exposed to water or rain,
✓ If the device has been dropped or the housing has been
damaged,
✓ If the device has noticeable performance changes,
✓ If the device does not operate normally according to the
operating instructions specified in the installation manual.
MAINTENANCE ON YOUR OWN
Do not attempt to repair the appliance yourself, as you may be
exposed to electric shock if you open the case. In the event of any
malfunction, contact your dealer or authorized service. Technical
intervention to the device must be carried out by qualified service
personnel. The appliance should be cleaned with a dry cloth. Do not
use any chemicals.
TRANSPORTATION
The device must be handled carefully so that it is not exposed to any
external impact and does not allow any liquid to enter. Malfunctions
during improper handling are not covered by the warranty.
HUMAN AND ENVIRONMENTAL HEALTH
This device does not contain any chemical or biological substances
that may harm human health.
Warning: TFB-1166 button type with isolator must be
operated together with v2 version Addressable Panel,
TFC-1201 Loop Board, TFM-128X Sub-base Modules
and TFM-1661 Isolator Module. Short circuit
protection function does not work if used with
previous versions!
Make sure that the following label is on the products
that will work with short circuit protection function.
CE
Bilgi Elektronik San. ve Tic. A.Ş.
Dudullu Organize Sanayi Bölgesi 1.Cadde İsmet Tarman
İş Merkezi No:1 Daire:32 Ümraniye-İSTANBUL
1922-CPR-0898
EN 54-11:2001/A1:2005 and EN 54-17:2005;
EN 54-17:2005/AC:2007
Manual Call Points
TFB-1166
Technical data: see BİLGİ-TEC-170907-2 held by the
manufacturer.

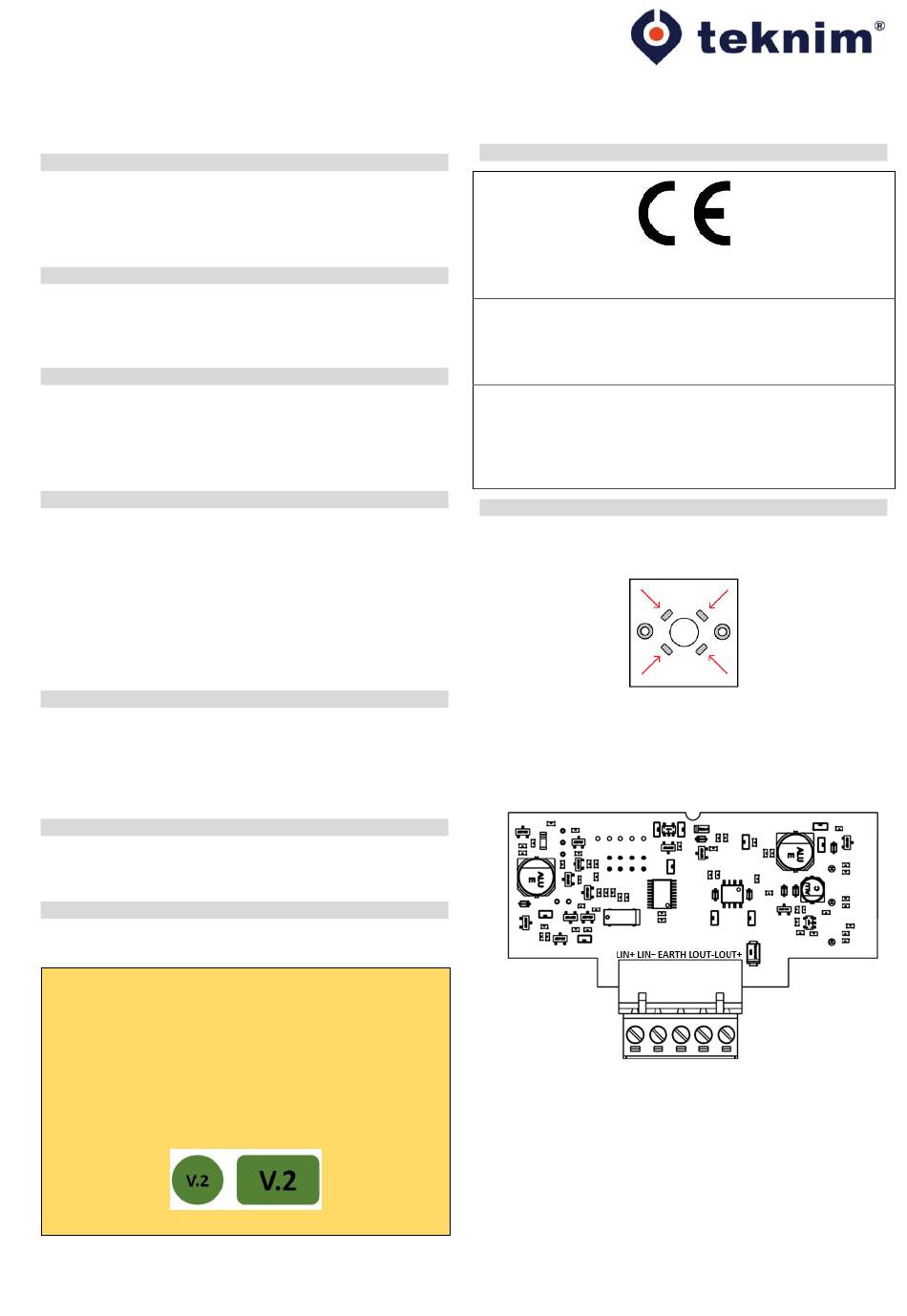

MOUNTING AND CONNECTION
1. Mount the button on the wall so that the fire cable passes
through the base of the clip. Do not over-tighten the wall-
mounting screws.
2. On the board there are LIN+, LIN-, EARTH, LOUT- and
LOUT+ connectors. For the perfect operation please
connect + from control panel loop exit to LIN+ and – from
control panel loop exit to LIN-. And move to next device
from LOUT- and LOUT+
3. EARTH connection must be connected both on control
panel and inside of manual call point to ensure integrity.
4. After the TFB-1166 is connected to the panel and give
address, the LED on it starts to blink with a blue light at
intervals of 20 seconds. LED lights steady RED in case
of alarm. If a short circuit occurs on the loop line, the
YELLOW LED on the call point lights up continuously
and the short circuit point is opened by two isolators to
protect the loop line.
