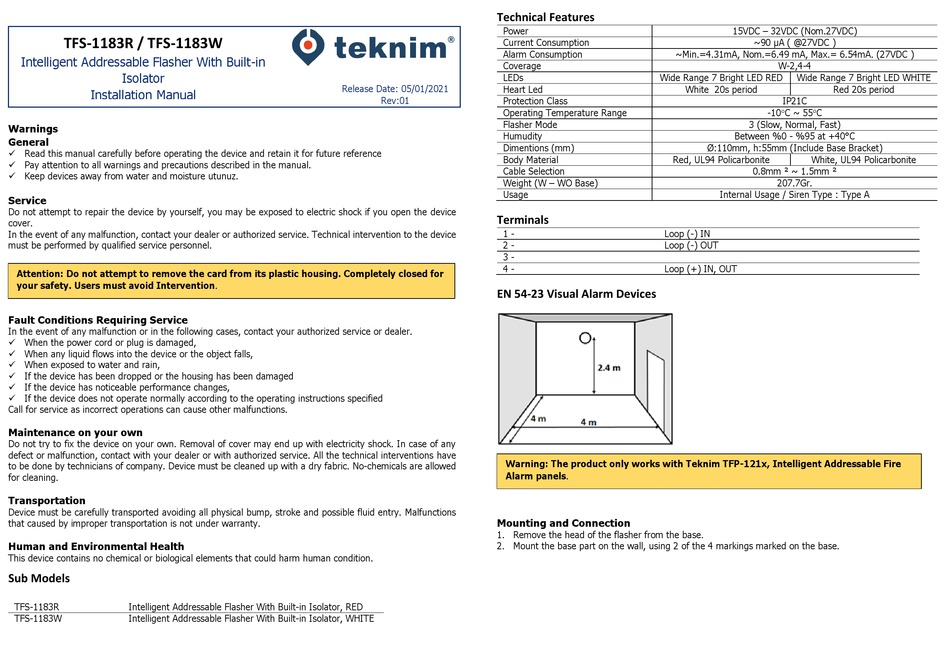

Teknim TFS-1183R Installation Manual

TFS-1183R / TFS-1183W
Intelligent Addressable Flasher With Built-in
Isolator
Installation Manual
Warnings
General
✓ Read this manual carefully before operating the device and retain it for future reference
✓ Pay attention to all warnings and precautions described in the manual.
✓ Keep devices away from water and moisture utunuz.
Service
Do not attempt to repair the device by yourself, you may be exposed to electric shock if you open the device
cover.
In the event of any malfunction, contact your dealer or authorized service. Technical intervention to the device
must be performed by qualified service personnel.
Attention: Do not attempt to remove the card from its plastic housing. Completely closed for
your safety. Users must avoid Intervention.
Fault Conditions Requiring Service
In the event of any malfunction or in the following cases, contact your authorized service or dealer.
✓ When the power cord or plug is damaged,
✓ When any liquid flows into the device or the object falls,
✓ When exposed to water and rain,
✓ If the device has been dropped or the housing has been damaged
✓ If the device has noticeable performance changes,
✓ If the device does not operate normally according to the operating instructions specified
Call for service as incorrect operations can cause other malfunctions.
Maintenance on your own
Do not try to fix the device on your own. Removal of cover may end up with electricity shock. In case of any
defect or malfunction, contact with your dealer or with authorized service. All the technical interventions have
to be done by technicians of company. Device must be cleaned up with a dry fabric. No-chemicals are allowed
for cleaning.
Transportation
Device must be carefully transported avoiding all physical bump, stroke and possible fluid entry. Malfunctions
that caused by improper transportation is not under warranty.
Human and Environmental Health
This device contains no chemical or biological elements that could harm human condition.
Sub Models
TFS-1183R Intelligent Addressable Flasher With Built-in Isolator, RED
TFS-1183W Intelligent Addressable Flasher With Built-in Isolator, WHITE
Technical Features
Power
Current Consumption
Alarm Consumption
Coverage
LEDs
Release Date: 05/01/2021
Heart Led
Rev:01
Protection Class
Operating Temperature Range
Flasher Mode
Humudity
Dimentions (mm)
Body Material
Cable Selection
Weight (W – WO Base)
Usage
Terminals
1 -
2 -
3 -
4 -
EN 54-23 Visual Alarm Devices
Warning: The product only works with Teknim TFP-121x, Intelligent Addressable Fire
Alarm panels.
Mounting and Connection
1. Remove the head of the flasher from the base.
2. Mount the base part on the wall, using 2 of the 4 markings marked on the base.
15VDC – 32VDC (Nom.27VDC)
~90 µA ( @27VDC )
~Min.=4.31mA, Nom.=6.49 mA, Max.= 6.54mA. (27VDC )
W-2,4-4
Wide Range 7 Bright LED RED Wide Range 7 Bright LED WHITE
White 20s period Red 20s period
IP21C
-10C ~ 55C
3 (Slow, Normal, Fast)
Between %0 - %95 at +40°C
Ø:110mm, h:55mm (Include Base Bracket)
Red, UL94 Policarbonite White, UL94 Policarbonite
0.8mm ² ~ 1.5mm ²
207.7Gr.
Internal Usage / Siren Type : Type A
Loop (-) IN
Loop (-) OUT
Loop (+) IN, OUT
