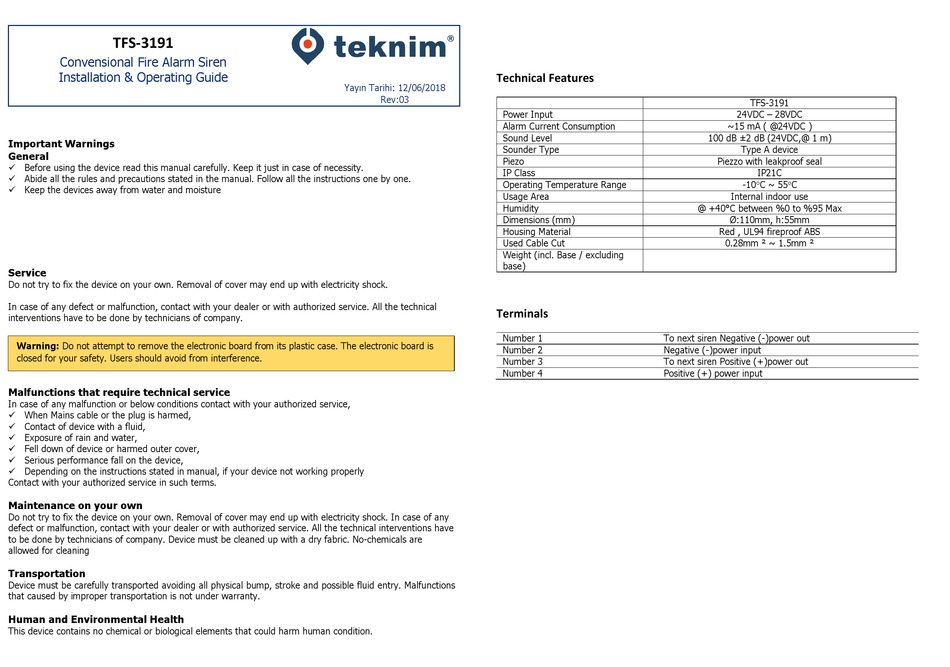

Teknim TFS-3191 Installation & Operating Manual

TFS-3191

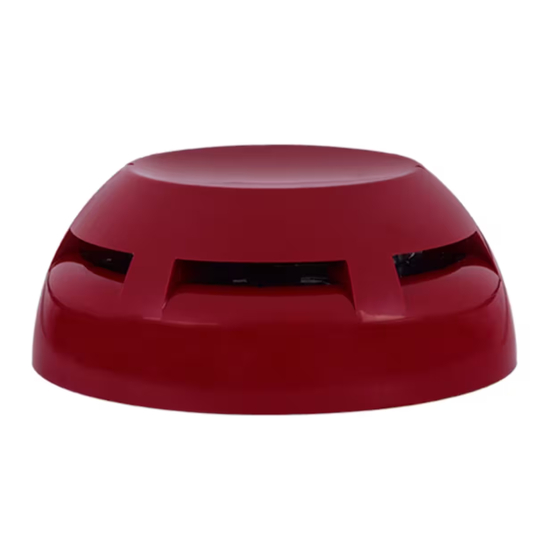

Convensional Fire Alarm Siren
Installation & Operating Guide
Important Warnings
General
✓ Before using the device read this manual carefully. Keep it just in case of necessity.
✓ Abide all the rules and precautions stated in the manual. Follow all the instructions one by one.
✓ Keep the devices away from water and moisture
Service
Do not try to fix the device on your own. Removal of cover may end up with electricity shock.
In case of any defect or malfunction, contact with your dealer or with authorized service. All the technical
interventions have to be done by technicians of company.
Warning: Do not attempt to remove the electronic board from its plastic case. The electronic board is
closed for your safety. Users should avoid from interference.
Malfunctions that require technical service
In case of any malfunction or below conditions contact with your authorized service,
✓ When Mains cable or the plug is harmed,
✓ Contact of device with a fluid,
✓ Exposure of rain and water,
✓ Fell down of device or harmed outer cover,
✓ Serious performance fall on the device,
✓ Depending on the instructions stated in manual, if your device not working properly
Contact with your authorized service in such terms.
Maintenance on your own
Do not try to fix the device on your own. Removal of cover may end up with electricity shock. In case of any
defect or malfunction, contact with your dealer or with authorized service. All the technical interventions have
to be done by technicians of company. Device must be cleaned up with a dry fabric. No-chemicals are
allowed for cleaning
Transportation
Device must be carefully transported avoiding all physical bump, stroke and possible fluid entry. Malfunctions
that caused by improper transportation is not under warranty.
Human and Environmental Health
This device contains no chemical or biological elements that could harm human condition.
Technical Features
Yayın Tarihi: 12/06/2018
Rev:03
Power Input
Alarm Current Consumption
Sound Level
Sounder Type
Piezo
IP Class
Operating Temperature Range
Usage Area
Humidity
Dimensions (mm)
Housing Material
Used Cable Cut
Weight (incl. Base / excluding
base)
Terminals
Number 1
Number 2
Number 3
Number 4
TFS-3191
24VDC – 28VDC
~15 mA ( @24VDC )
100 dB ±2 dB (24VDC,@ 1 m)
Type A device
Piezzo with leakproof seal
IP21C
-10C ~ 55C
Internal indoor use
@ +40°C between %0 to %95 Max
Ø:110mm, h:55mm
Red , UL94 fireproof ABS
0.28mm ² ~ 1.5mm ²
To next siren Negative (-)power out
Negative (-)power input
To next siren Positive (+)power out
Positive (+) power input
