Teknim TFA-1196 Mounting And User Manual

IMPORTANT WARNINGS

GENERAL

✓ Before using the device read this manual carefully. Keep
it just in case of necessity.
✓ Abide all the rules and precautions stated in the manual.
Follow all the instructions one by one.
✓ Keep the devices away from water and moisture
CONDITIONS
Do not energize the device above or below the given limits of
extreme hot or cold conditions,
Temperature: Between -10C and +85C
Relative Moisture: Non-condensing Between %0 and %95

SERVICE

Do not try to fix the device on your own. Removal of cover
may end up with electricity shock.
In case of any defect or malfunction, contact with your dealer
or with authorized service. All the technical interventions
have to be done by technicians of company.
Warning: Do not attempt to remove the electronic
board from its plastic case. The electronic board
is closed for your safety. Users should avoid from
interference.

MALFUNCTIONS THAT REQUIRE TECHNICAL SERVICE

In case of any malfunction or below conditions contact with
your authorized service,
✓When Mains cable or the plug is harmed,
✓Contact of device with a fluid,
✓Exposure of rain and water,
✓Fell down of device or harmed outer cover,
✓Serious performance fall on the device,
✓Depending on the instructions stated in manual, if your
device not working properly, further usage or possible wrong
usage may cause other malfunctions. Contact with your
authorized service in such terms.
.

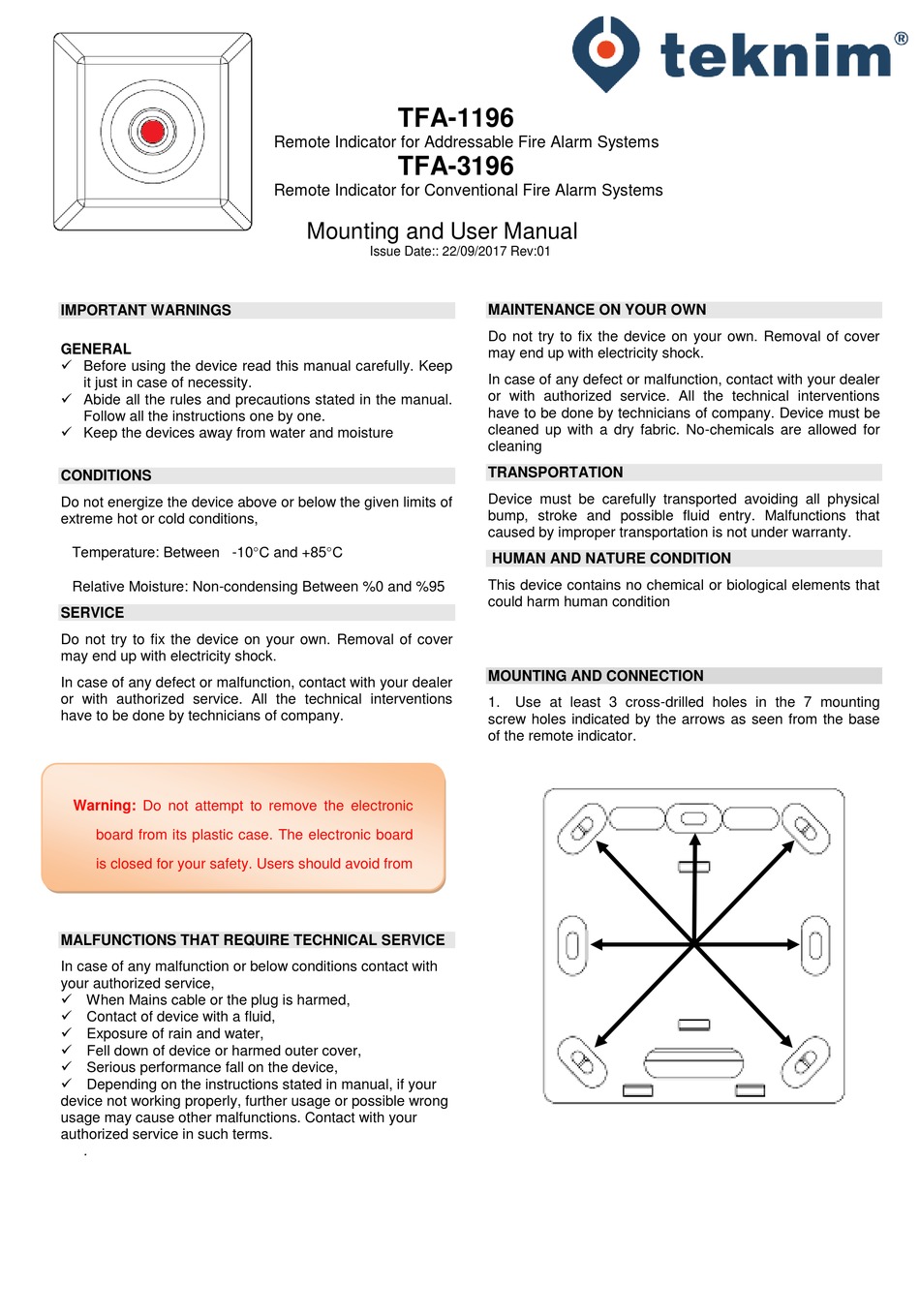

TFA-1196
Remote Indicator for Addressable Fire Alarm Systems
TFA-3196
Remote Indicator for Conventional Fire Alarm Systems
Mounting and User Manual
Issue Date:: 22/09/2017 Rev:01
MAINTENANCE ON YOUR OWN
Do not try to fix the device on your own. Removal of cover
may end up with electricity shock.
In case of any defect or malfunction, contact with your dealer
or with authorized service. All the technical interventions
have to be done by technicians of company. Device must be
cleaned up with a dry fabric. No-chemicals are allowed for
cleaning
TRANSPORTATION
Device must be carefully transported avoiding all physical
bump, stroke and possible fluid entry. Malfunctions that
caused by improper transportation is not under warranty.
HUMAN AND NATURE CONDITION
This device contains no chemical or biological elements that
could harm human condition

MOUNTING AND CONNECTION

1. Use at least 3 cross-drilled holes in the 7 mounting
screw holes indicated by the arrows as seen from the base
of the remote indicator.
