Teknim TFB-1166 Installation And User Manual

TFB-1166
Analog Addressable Manual Call Point,
Resettable, Short Circuit Isolator
Installation and User Manual
Issue Date: 28/09/2017 Rev:01
IMPORTANT WARNINGS
GENERAL
✓Before using the device read this manual carefully. Keep it
just in case of necessity.
✓Abide all the rules and precautions stated in the manual.
Follow all the instructions one by one.
✓Keep the devices away from water and moisture.
CONDITIONS
Do not energize the device above or below the given limits of
extreme hot or cold conditions.
-10C ile +60C arası
Temperature:
+40°C'de
Relative Moisture:
SERVICE
Do not try to fix the device on your own. Removal of cover
may end up with electricity shock.
In case of any defect or malfunction, contact with your dealer
or with authorized service. All the technical interventions
have to be done by technicians of company.
MALFUNCTIONS THAT REQUIRE TECHNICAL SERVICE
In case of any malfunction or below conditions contact with
your authorized service,
✓When Mains cable or the plug is harmed,
✓Contact of device with a fluid,
✓Exposure of rain and water,
✓Fell down of device or harmed outer cover,
✓Serious performance fall on the device,
✓Depending on the instructions stated in manual, if your
device not working properly, further usage or possible wrong
usage may cause other malfunctions. Contact with your
authorized service in such terms.
MAINTENANCE ON YOUR OWN
Do not try to fix the device on your own. Removal of cover
may end up with electricity shock.
In case of any defect or malfunction, contact with your dealer
or with authorized service. All the technical interventions
have to be done by technicians of company. Device must be
cleaned up with a dry fabric. No-chemicals are allowed for
cleaning
TRANSPORTATION
Device must be carefully transported avoiding all physical
bump, stroke and possible fluid entry. Malfunctions that
caused by improper transportation is not under warranty.
HUMAN AND NATURE CONDITION
This device contains no chemical or biological elements that
could harm human condition
≤
93%
CE
Bilgi Elektronik San. ve Tic. A.Ş.
Dudullu OSB 1. Cad. İsmet Tarman İş Merkezi
No:1 Kat:2 No:32 Ümraniye / İstanbul
1922-CPR-0898
EN 54-11:2001, EN 54-11:2001/A1:2005,
Manual call points,
EN 54-17:2005,
Short-circuit isolators
TFB-1166
Technical data: See BİLGİ-TEC-170907-2 held by the
manufacturer.

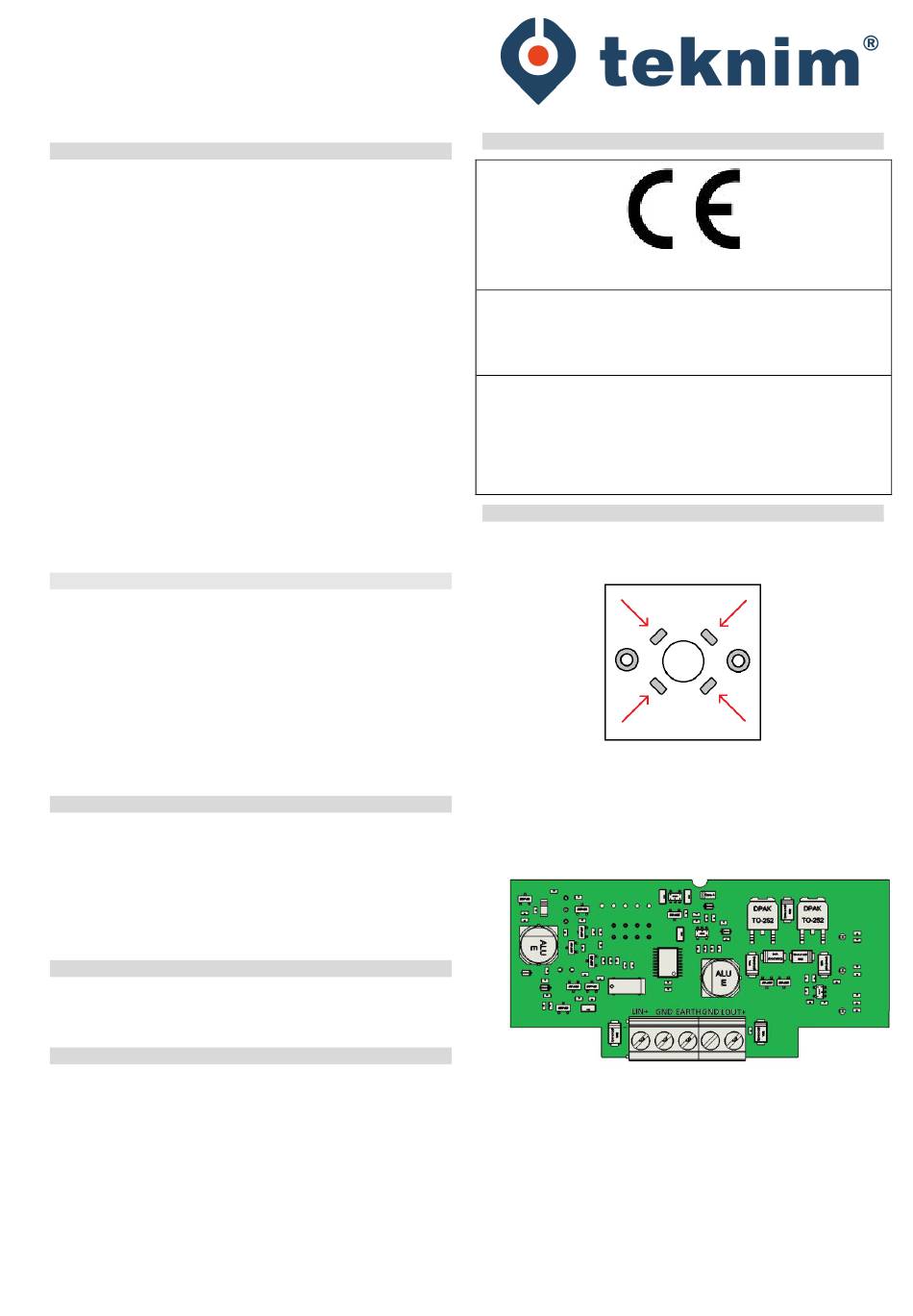

MOUNTING AND CONNECTION
1. Mount the wall of the manual call base so that the fire
cords pass through the rear hole. Do not tighten the wall
mounting screws too much.
2. The terminals on the electronic card in the Manual Call
Point is LIN +, GNG, EARTH, GND and LOUT + . For
trouble-free operation, the addressable panel must be
connected to the GND terminal next to the + LIN +, - pin
of the cable from the circuit board. For other loop
devices, it should go out from the GND and LOUT +
terminals.
3. The incoming and outgoing EARTH cable to the
addressable button via the loop cable must be connected
to the EARTH terminal on the manual call point button to
provide the earth integrity of the loop line devices.
4. After the TFB-1165 addressable manual call button is
connected to the panel and the LED on it is flashing to
indicate that it is communicating, it blinks blue at intervals
of 20 seconds. In case of LED alarm continuously RED
light. If a short circuit occurs on the loop circuit, the
YELLOW LED on the circuit breaker is lit continuously
and the short circuit point is opened by two isolators to
protect the loop circuit.
