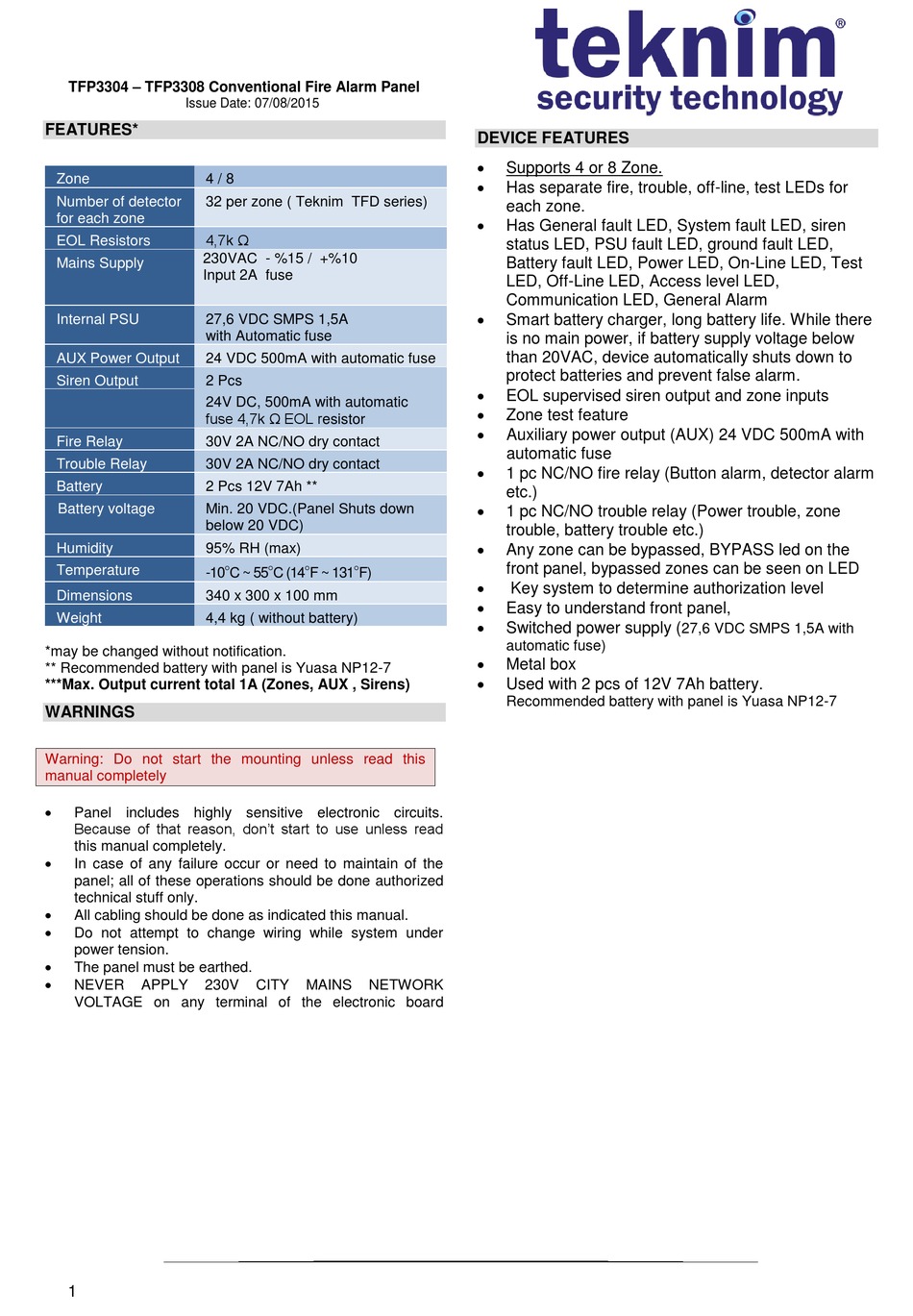

Teknim TFP3304 Manual

TFP3304 – TFP3308 Conventional Fire Alarm Panel
Issue Date: 07/08/2015
FEATURES*
Zone 4 / 8
Number of detector 32 per zone ( Teknim TFD series)
for each zone
4,7k Ω
EOL Resistors
230VAC - %15 / +%10
Mains Supply
Input 2A fuse
Internal PSU 27,6 VDC SMPS 1,5A
with Automatic fuse
AUX Power Output 24 VDC 500mA with automatic fuse
Siren Output 2 Pcs
24V DC, 500mA with automatic
fuse 4,7k Ω EOL resistor
Fire Relay 30V 2A NC/NO dry contact
Trouble Relay 30V 2A NC/NO dry contact
Battery 2 Pcs 12V 7Ah **
Battery voltage Min. 20 VDC.(Panel Shuts down
below 20 VDC)
Humidity 95% RH (max)
-10  C ~ 55  C (14  F ~ 131  F)
Temperature
Dimensions 340 x 300 x 100 mm
Weight 4,4 kg ( without battery)
*may be changed without notification.
** Recommended battery with panel is Yuasa NP12-7
***Max. Output current total 1A (Zones, AUX , Sirens)
WARNINGS
Warning: Do not start the mounting unless read this
manual completely

Panel includes highly sensitive electronic circuits.
Because of that reason, don't start to use unless read
this manual completely.

In case of any failure occur or need to maintain of the
panel; all of these operations should be done authorized
technical stuff only.

All cabling should be done as indicated this manual.

Do not attempt to change wiring while system under
power tension.

The panel must be earthed.

NEVER APPLY 230V
VOLTAGE on any terminal of the electronic board
1
CITY MAINS NETWORK
DEVICE FEATURES

Supports 4 or 8 Zone.

Has separate fire, trouble, off-line, test LEDs for
each zone.

Has General fault LED, System fault LED, siren
status LED, PSU fault LED, ground fault LED,
Battery fault LED, Power LED, On-Line LED, Test
LED, Off-Line LED, Access level LED,
Communication LED, General Alarm

Smart battery charger, long battery life. While there
is no main power, if battery supply voltage below
than 20VAC, device automatically shuts down to
protect batteries and prevent false alarm.

EOL supervised siren output and zone inputs

Zone test feature

Auxiliary power output (AUX) 24 VDC 500mA with
automatic fuse

1 pc NC/NO fire relay (Button alarm, detector alarm
etc.)

1 pc NC/NO trouble relay (Power trouble, zone
trouble, battery trouble etc.)

Any zone can be bypassed, BYPASS led on the
front panel, bypassed zones can be seen on LED

Key system to determine authorization level

Easy to understand front panel,

Switched power supply (
automatic fuse)

Metal box

Used with 2 pcs of 12V 7Ah battery.
Recommended battery with panel is Yuasa NP12-7
27,6 VDC SMPS 1,5A with
