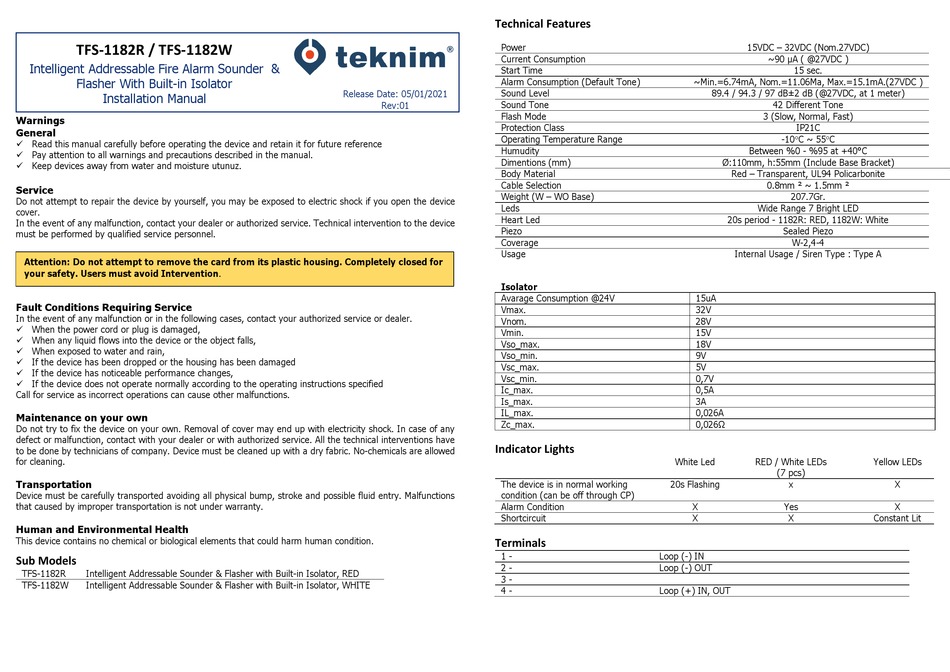

Teknim TFS-1182R Installation Manual

TFS-1182R / TFS-1182W
Intelligent Addressable Fire Alarm Sounder &
Flasher With Built-in Isolator
Installation Manual
Warnings
General
✓ Read this manual carefully before operating the device and retain it for future reference
✓ Pay attention to all warnings and precautions described in the manual.
✓ Keep devices away from water and moisture utunuz.
Service
Do not attempt to repair the device by yourself, you may be exposed to electric shock if you open the device
cover.
In the event of any malfunction, contact your dealer or authorized service. Technical intervention to the device
must be performed by qualified service personnel.
Attention: Do not attempt to remove the card from its plastic housing. Completely closed for
your safety. Users must avoid Intervention.
Fault Conditions Requiring Service
In the event of any malfunction or in the following cases, contact your authorized service or dealer.
✓ When the power cord or plug is damaged,
✓ When any liquid flows into the device or the object falls,
✓ When exposed to water and rain,
✓ If the device has been dropped or the housing has been damaged
✓ If the device has noticeable performance changes,
✓ If the device does not operate normally according to the operating instructions specified
Call for service as incorrect operations can cause other malfunctions.
Maintenance on your own
Do not try to fix the device on your own. Removal of cover may end up with electricity shock. In case of any
defect or malfunction, contact with your dealer or with authorized service. All the technical interventions have
to be done by technicians of company. Device must be cleaned up with a dry fabric. No-chemicals are allowed
for cleaning.
Transportation
Device must be carefully transported avoiding all physical bump, stroke and possible fluid entry. Malfunctions
that caused by improper transportation is not under warranty.
Human and Environmental Health
This device contains no chemical or biological elements that could harm human condition.
Sub Models

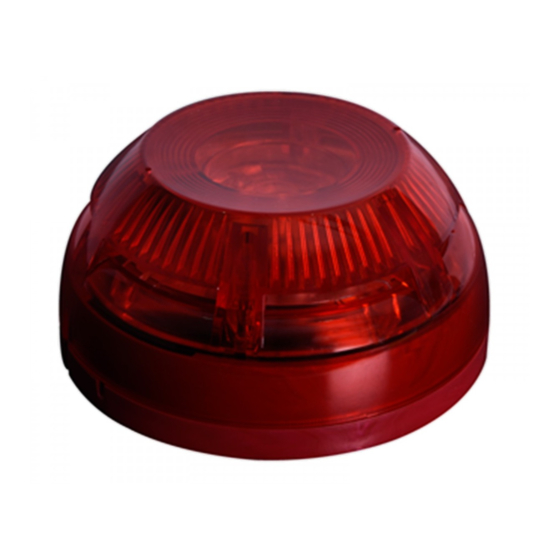

TFS-1182R Intelligent Addressable Sounder & Flasher with Built-in Isolator, RED
TFS-1182W Intelligent Addressable Sounder & Flasher with Built-in Isolator, WHITE
Technical Features
Power
Current Consumption
Start Time
Alarm Consumption (Default Tone)
Sound Level
Release Date: 05/01/2021
Rev:01 Sound Tone
Flash Mode
Protection Class
Operating Temperature Range
Humudity
Dimentions (mm)
Body Material
Cable Selection
Weight (W – WO Base)
Leds
Heart Led
Piezo
Coverage
Usage
Isolator
Avarage Consumption @24V
Vmax.
Vnom.
Vmin.
Vso_max.
Vso_min.
Vsc_max.
Vsc_min.
Ic_max.
Is_max.
IL_max.
Zc_max.
Indicator Lights
The device is in normal working
condition (can be off through CP)
Alarm Condition
Shortcircuit
Terminals
1 -
2 -
3 -
4 -
15VDC – 32VDC (Nom.27VDC)
~90 µA ( @27VDC )
15 sec.
~Min.=6.74mA, Nom.=11.06Ma, Max.=15.1mA.(27VDC )
89.4 / 94.3 / 97 dB±2 dB (@27VDC, at 1 meter)
42 Different Tone
3 (Slow, Normal, Fast)
IP21C
-10C ~ 55C
Between %0 - %95 at +40°C
Ø:110mm, h:55mm (Include Base Bracket)
Red – Transparent, UL94 Policarbonite
0.8mm ² ~ 1.5mm ²
207.7Gr.
Wide Range 7 Bright LED
20s period - 1182R: RED, 1182W: White
Sealed Piezo
W-2,4-4
Internal Usage / Siren Type : Type A
15uA
32V
28V
15V
18V
9V
5V
0,7V
0,5A
3A
0,026A
0,026Ω
White Led RED / White LEDs
(7 pcs)
20s Flashing x
X Yes
X X
Loop (-) IN
Loop (-) OUT
Loop (+) IN, OUT
W
Yellow LEDs
X
X
Constant Lit
