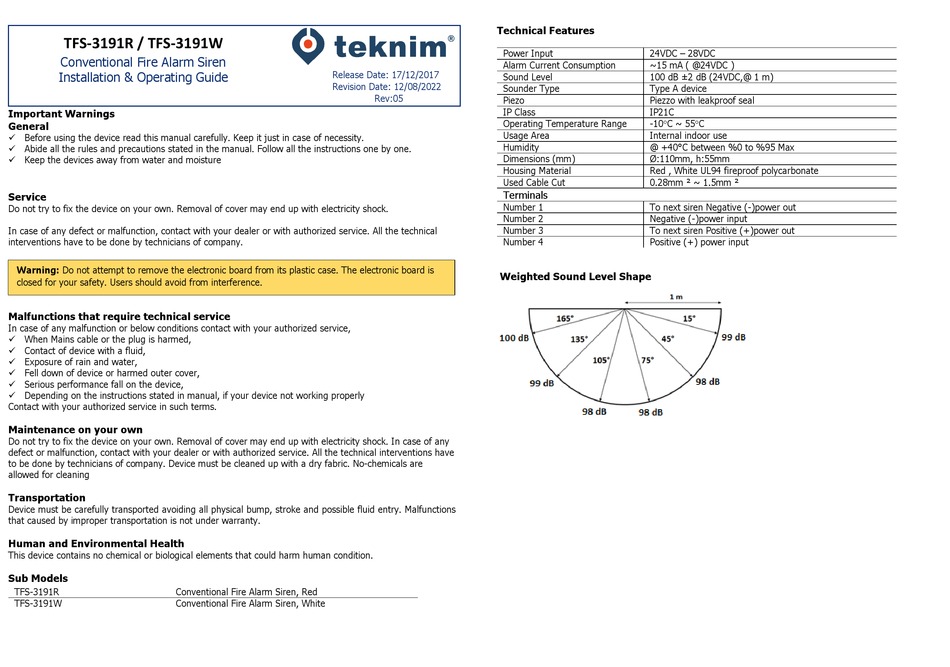

Teknim TFS-3191R Installation & Operating Manual

TFS-3191R / TFS-3191W
Conventional Fire Alarm Siren
Installation & Operating Guide

Important Warnings

General

✓ Before using the device read this manual carefully. Keep it just in case of necessity.
✓ Abide all the rules and precautions stated in the manual. Follow all the instructions one by one.
✓ Keep the devices away from water and moisture

Service

Do not try to fix the device on your own. Removal of cover may end up with electricity shock.
In case of any defect or malfunction, contact with your dealer or with authorized service. All the technical
interventions have to be done by technicians of company.
Warning: Do not attempt to remove the electronic board from its plastic case. The electronic board is
closed for your safety. Users should avoid from interference.

Malfunctions that require technical service

In case of any malfunction or below conditions contact with your authorized service,
✓ When Mains cable or the plug is harmed,
✓ Contact of device with a fluid,
✓ Exposure of rain and water,
✓ Fell down of device or harmed outer cover,
✓ Serious performance fall on the device,
✓ Depending on the instructions stated in manual, if your device not working properly
Contact with your authorized service in such terms.

Maintenance on your own

Do not try to fix the device on your own. Removal of cover may end up with electricity shock. In case of any
defect or malfunction, contact with your dealer or with authorized service. All the technical interventions have
to be done by technicians of company. Device must be cleaned up with a dry fabric. No-chemicals are
allowed for cleaning

Transportation

Device must be carefully transported avoiding all physical bump, stroke and possible fluid entry. Malfunctions
that caused by improper transportation is not under warranty.

Human and Environmental Health

This device contains no chemical or biological elements that could harm human condition.

Sub Models

TFS-3191R Conventional Fire Alarm Siren, Red
TFS-3191W Conventional Fire Alarm Siren, White

Technical Features

Power Input
Alarm Current Consumption
Release Date: 17/12/2017
Sound Level
Revision Date: 12/08/2022
Sounder Type
Rev:05
Piezo
IP Class
Operating Temperature Range
Usage Area
Humidity
Dimensions (mm)
Housing Material
Used Cable Cut

Terminals

Number 1
Number 2
Number 3
Number 4

Weighted Sound Level Shape

24VDC – 28VDC
~15 mA ( @24VDC )
100 dB ±2 dB (24VDC,@ 1 m)
Type A device
Piezzo with leakproof seal
IP21C
-10C ~ 55C
Internal indoor use
@ +40°C between %0 to %95 Max
Ø:110mm, h:55mm
Red , White UL94 fireproof polycarbonate
0.28mm ² ~ 1.5mm ²
To next siren Negative (-)power out
Negative (-)power input
To next siren Positive (+)power out
Positive (+) power input
