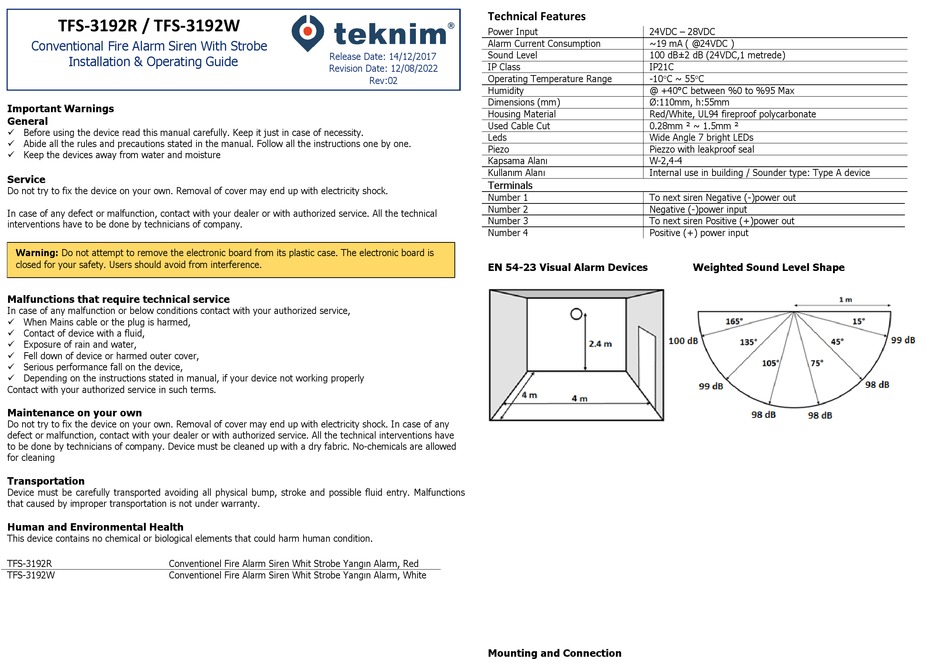

TFS-3192R / TFS-3192W
Conventional Fire Alarm Siren With Strobe
Installation & Operating Guide
Important Warnings
General
✓ Before using the device read this manual carefully. Keep it just in case of necessity.
✓ Abide all the rules and precautions stated in the manual. Follow all the instructions one by one.
✓ Keep the devices away from water and moisture
Service
Do not try to fix the device on your own. Removal of cover may end up with electricity shock.
In case of any defect or malfunction, contact with your dealer or with authorized service. All the technical
interventions have to be done by technicians of company.
Warning: Do not attempt to remove the electronic board from its plastic case. The electronic board is
closed for your safety. Users should avoid from interference.
Malfunctions that require technical service
In case of any malfunction or below conditions contact with your authorized service,
✓ When Mains cable or the plug is harmed,
✓ Contact of device with a fluid,
✓ Exposure of rain and water,
✓ Fell down of device or harmed outer cover,
✓ Serious performance fall on the device,
✓ Depending on the instructions stated in manual, if your device not working properly
Contact with your authorized service in such terms.
Maintenance on your own
Do not try to fix the device on your own. Removal of cover may end up with electricity shock. In case of any
defect or malfunction, contact with your dealer or with authorized service. All the technical interventions have
to be done by technicians of company. Device must be cleaned up with a dry fabric. No-chemicals are allowed
for cleaning
Transportation
Device must be carefully transported avoiding all physical bump, stroke and possible fluid entry. Malfunctions
that caused by improper transportation is not under warranty.
Human and Environmental Health
This device contains no chemical or biological elements that could harm human condition.
TFS-3192R Conventionel Fire Alarm Siren Whit Strobe Yangın Alarm, Red
TFS-3192W Conventionel Fire Alarm Siren Whit Strobe Yangın Alarm, White
Technical Features
Power Input
Alarm Current Consumption
Sound Level
Release Date: 14/12/2017
IP Class
Revision Date: 12/08/2022
Operating Temperature Range
Rev:02
Humidity
Dimensions (mm)
Housing Material
Used Cable Cut
Leds
Piezo
Kapsama Alanı
Kullanım Alanı
Terminals
Number 1
Number 2
Number 3
Number 4
EN 54-23 Visual Alarm Devices
Mounting and Connection
24VDC – 28VDC
~19 mA ( @24VDC )
100 dB±2 dB (24VDC,1 metrede)
IP21C
-10C ~ 55C
@ +40°C between %0 to %95 Max
Ø:110mm, h:55mm
Red/White, UL94 fireproof polycarbonate
0.28mm ² ~ 1.5mm ²
Wide Angle 7 bright LEDs
Piezzo with leakproof seal
W-2,4-4
Internal use in building / Sounder type: Type A device
To next siren Negative (-)power out
Negative (-)power input
To next siren Positive (+)power out
Positive (+) power input
Weighted Sound Level Shape
