B. SEAT INSTALLATION
The mower incorporates a safety interlock system that will
stop the drive motors and deck motors when the operator
is unseated for any reason while the mower is operating.
This is a safety feature designed to prevent runaway or
accidental entanglement.

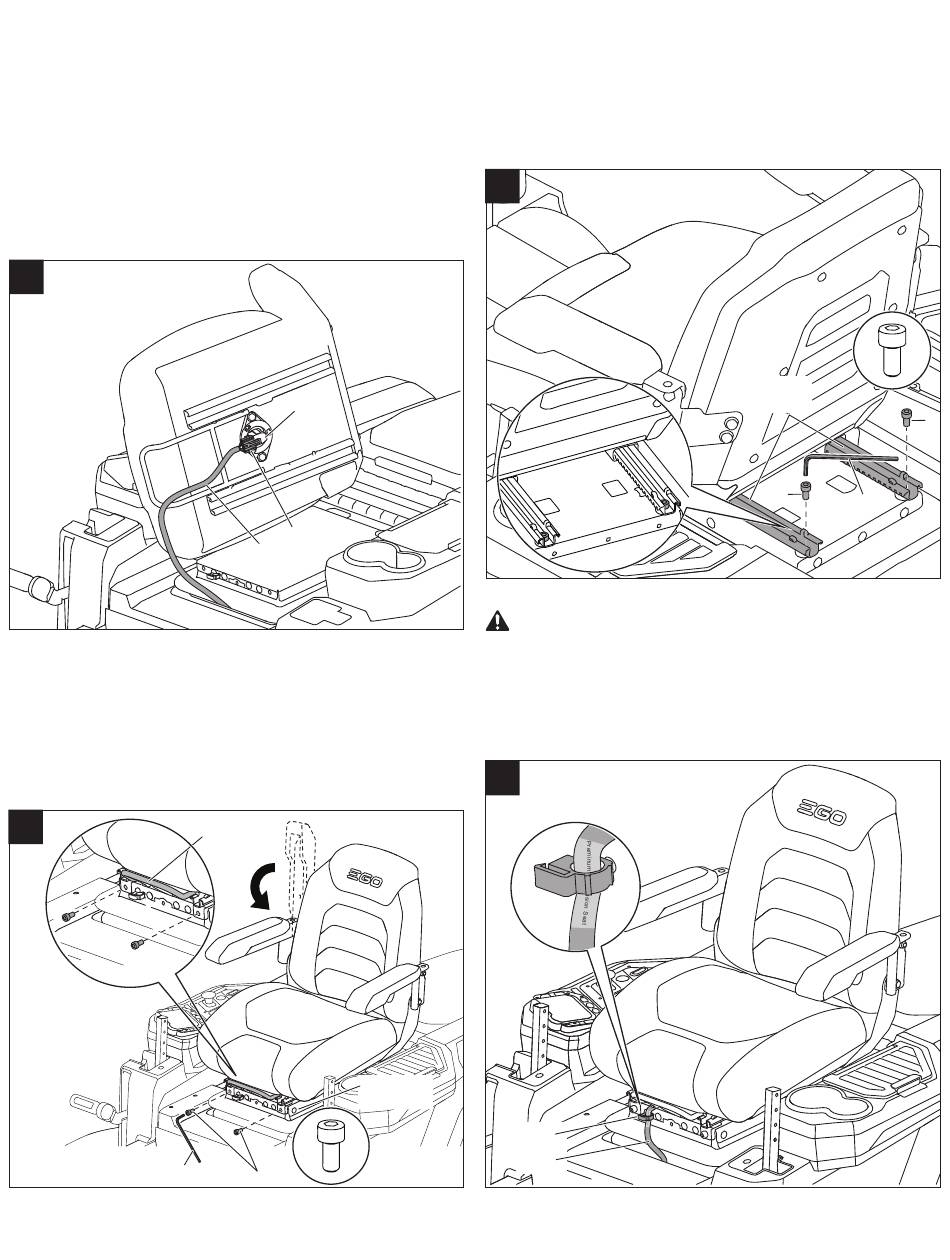

1. Lay the seat on its side and insert the cable plug into
the socket on the bottom of the seat (Fig. 3). This
connects the safety interlock system.
3
2. Rotate the two arm rests to the horizontal positions.
Place the seat closely against the front of the
suspension base. Align the two mounting holes in the
seat with the holes in suspension base, and use the
Allen key D to secure the seat to the suspension base
with the two socket-head screws B (Fig. 4).
4
B
B
D
Socket
Plug
Cable
Adjustment
Lever
Suspension
Base
B
B
3. Lift the adjustment lever slightly and pull the seat
forward to expose the two backside mounting holes in
the steel rails of the seat assembly (Fig. 4).
4. Use the Allen key D to thoroughly tighten the steel
rails onto the suspension base with the remaining two
socket head screws B (Fig. 5).
5
WARNING: When finishing tightening the two backside
screws, please check that there is no gap between the
front part of the steel rails and the suspension base.
5. Place the flexible cable into the hook as the indicated
position label on the cable shows (Fig. 6).
6
Hook
Cable
3
B
Steel
Rails
B
B
D
