EGO ZT4200L Assembly Instructions Manual page 2

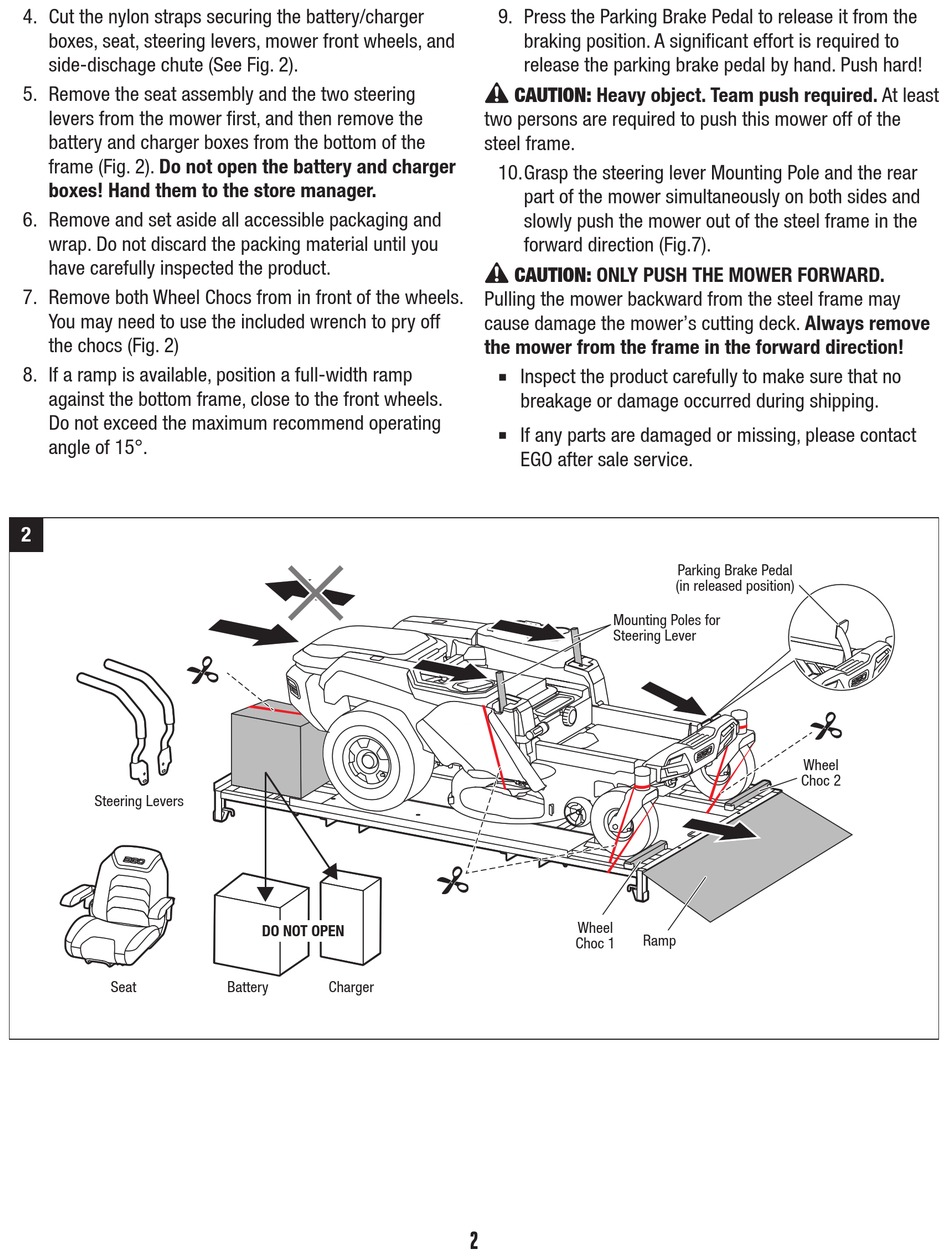

4. Cut the nylon straps securing the battery/charger
boxes, seat, steering levers, mower front wheels, and
side-dischage chute (See Fig. 2).
5. Remove the seat assembly and the two steering
levers from the mower first, and then remove the
battery and charger boxes from the bottom of the
frame (Fig. 2). Do not open the battery and charger
boxes! Hand them to the store manager.
6. Remove and set aside all accessible packaging and
wrap. Do not discard the packing material until you
have carefully inspected the product.
7. Remove both Wheel Chocs from in front of the wheels.
You may need to use the included wrench to pry off
the chocs (Fig. 2)
8. If a ramp is available, position a full-width ramp
against the bottom frame, close to the front wheels.
Do not exceed the maximum recommend operating
angle of 15°.
2
Steering Levers
Seat
DO NOT OPEN
Battery Charger
9. Press the Parking Brake Pedal to release it from the
braking position. A significant effort is required to
release the parking brake pedal by hand. Push hard!
CAUTION: Heavy object. Team push required. At least
two persons are required to push this mower off of the
steel frame.
10. Grasp the steering lever Mounting Pole and the rear
part of the mower simultaneously on both sides and
slowly push the mower out of the steel frame in the
forward direction (Fig.7).
CAUTION: ONLY PUSH THE MOWER FORWARD.
Pulling the mower backward from the steel frame may
cause damage the mower's cutting deck. Always remove
the mower from the frame in the forward direction!
◾
Inspect the product carefully to make sure that no
breakage or damage occurred during shipping.
◾
If any parts are damaged or missing, please contact
EGO after sale service.
Mounting Poles for
Steering Lever
Wheel
Ramp
Choc 1
2
Parking Brake Pedal
(in released position)
Wheel
Choc 2
