- Page 1 VISIO GAS USER MANUAL (GB)
- Page 2 edition 10.05.2023...
-
Page 3: Table Of Contents
USER MANUAL CONTENTS INTRODUCTION TO THE USER MANUAL Instructions for using QR codes Serial number GENERAL TECHNICAL INFORMATION Remote control and range Receiver and temperatures Battery replacements Code generation Antenna Power connection REMOTE CONTROL OPTIONS Remote control PUCK START-UP Synchronisation of the remote control and receiver DISPLAY AND FUNCTIONS Setting Fahrenheit or Celsius Setting the day and time... -
Page 4: Introduction To The User Manual

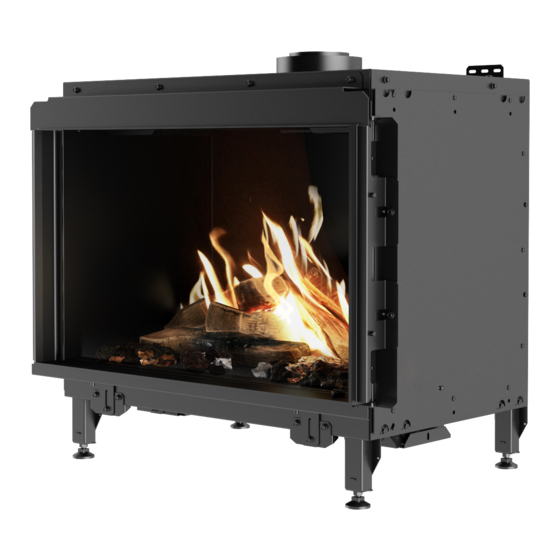

The user manual covers the following models: – Visio 70 F, Visio 70 LC, Visio 70 RC, Visio 70 3S – Visio 90 F, Visio 90 LC, Visio 90 RC, Visio 90 3S –... -
Page 5: Serial Number
INTRODUCTION WARNINGS Please note the symbols below that indicate potentially dangerous situations. SYMBOL DESCRIPTION Visual sign illustrating an important notice or caution. Visual sign illustrating a potential hazard. SERIAL NUMBER The serial number is the gas fireplace’s identification number and must be used when making any enquiries relating to the fireplace's warranty. -
Page 6: General Technical Information
INTRODUCTION GENERAL TECHNICAL INFORMATION Be aware of the following general technical information regarding the remote control and receiver unit. REMOTE CONTROL AND RANGE The remote control has a maximum range of 10 metres from the receiver. Placing the remote further from the receiver can interfere with the connection and may cause the need of a reset. -
Page 7: Code Generation
If this is not connected, the electronic system may be damaged. REMOTE CONTROL OPTIONS There are 2 options for operating a RAIS gas fireplace: a remote control (with display) and a PUCK (without display). REMOTE CONTROL The remote control with a display is standard. With this remote control, all the functions of the gas fireplace can be used. -
Page 8: Start-Up
REMOTE CONTROL START-UP In this section you can learn how to set up the remote control for the NOTE! gas fireplace. Once a year you should replace the batteries in the remote to ensure optimal operation. The remote control uses 2 x AAA 1.5V batteries. Replace all the batteries at the same time and Never use pointed tools to remove the batteries from the receiver use only good quality alkaline batteries. -
Page 9: Display And Functions
REMOTE CONTROL DISPLAY AND FUNCTIONS Read to learn more about the remote control’s functions. Signal control Child lock Time Thermostat mode Battery status Countdown timer Fahrenheit or celsius Light Program mode Eco mode Temperature Auxiliary function SETTING THE DEGREES SETTING FAHRENHEIT OR CELSIUS Scan the QR code to watch To change between °C or °F, press and hold the buttons a how-to-video... -
Page 10: Using The Remote Control
REMOTE CONTROL USING THE REMOTE CONTROL HOW TO SWITCH ON THE FIRE HOW TO SWITCH THE FIRE ON Press and hold the button to switch on the fire. Scan the QR code to watch a Be patient: When you switch the fire on/off and use the remote how-to-video control, you must hold the button for a couple of seconds until the ignition sign is displayed. -
Page 11: Operating Modes
REMOTE CONTROL OPERATING MODE THERMOSTAT MODE Scan the QR code to watch There are 3 operating settings on the remote control: 1)Thermostat a how-to-video mode, 2) Program mode and 3) Eco mode. Read to learn about all 3 operating modes. 1) Thermostat mode The room temperature is measured and compared to the set temperature. - Page 12 REMOTE CONTROL 2) Program mode PROGRAM MODE Program 1 or 2 can both be programmed to operate or stop at Scan the QR code to watch a how-to-video specific points in time at a set temperature. Read to learn how the program is activated or deactivated.
- Page 13 REMOTE CONTROL SETTING THE DAY 1. ALL flash. Press the button to choose between ALL, SA:SU, 1, 2, 3, 4, 5, 6, 7. 2. To confirm, press the button. 3. Continue either to PROGRAM 2 and set the operating time and time for switching off the fire or stop programming here and PROGRAM 2 remains deactivated.
- Page 14 REMOTE CONTROL 3) Eco mode ECO MODE The flame height alternates between high and low. If the room Scan the QR code to watch a how-to-video temperature is lower than the set temperature, the flame height will remain high for longer. If the room temperature is higher than the set temperature, the flame height will remain low for longer.
-
Page 15: Auxiliary Function - Secondary Burner Function
REMOTE CONTROL AUXILIARY FUNCTION – SECONDARY BURNER FUNCTION The latching solenoid valve will open automatically after ignition, so HOW TO TURN that the maximum flow of gas is supplied to both burners assisting SECONDARY BURNERS with the ignition process. ON/OFF After pressing the button for the 2nd Burner, the motor will turn 15 Scan the QR code to watch seconds in the ON direction until the max. -
Page 16: Setting The Light Strength
When the light reaches 100%, the light will go into dimmer function, slowly adjusting the light between low and full strength. SETTING THE FAN (OPTIONAL) The fan has 4 speed levels, from low (1) to high (4). The fan system is not supplied with the RAIS fires. 1. Press and hold the button until flashes. -
Page 17: Activation And Deactivation Of Functions
REMOTE CONTROL ACTIVATION AND DEACTIVATION OF FUNCTIONS The following functions can be deactivated/activated: • Child lock • Program mode • Thermostat mode (also deactivates Program mode) • Eco mode • Light/dimmer (operation) • Room fan (operation) • Auxiliary function • Countdown timer ACTIVATION OF FUNCTIONS 1. -
Page 18: Using The Puck (Optional)
WARNING! If the pilot flame does not light after several attempts, switch off the gas supply and contact your RAIS dealer. HOW TO SWITCH ON THE FIRE 1. Press and hold the button until you hear 2 short ‘beeps’ and the start procedure begins. -
Page 19: Maintenance
MAINTENANCE WARRANTY RAIS offers a 2-year warranty on all gas fireplaces. The MAINTENANCE OF YOUR GAS FIREPLACE warranty period begins upon delivery of the product. We recommend having your gas fireplace inspected The warranty – provided by RAIS – is a supplement by a professional once a year to ensure the product’s... -
Page 20: Service And Maintenance
Make sure the fireplace is completely cold before you flame. begin. RAIS cannot be held liable for injuries that result from touching a hot fireplace. SERVICE PROCEDURE The fireplace must be inspected by an authorised The steps below can be used as a guideline. -
Page 21: Cleaning
Check the outside and inside of the fireplace for any damage and pay particular attention to gaskets. Only original RAIS spare parts may be used. NOTE! Non-reflecting glass must only be cleaned with water. Only clean the glass when the fireplace is cold. - Page 22 2. Carefully clean the ceramic logs using a soft brush and a vacuum cleaner. Damaged parts may only be replaced by original RAIS specified parts. It is recommended that you use a vacuum cleaner with a HEPA filter system. 3. The scrapped ceramic parts should be disposed of in the correct municipal disposal centres.
-
Page 23: Troubleshooting And Errors
If you, against all expectation, should experience issues with your fireplace, please try the following steps. If the is- sues persist, please contact your RAIS dealer and state in which step the problem occurred. The most common problem is a lost connection between the remote control and receiver due to lack of power. -
Page 24: Error Codes On The Remote Control
TROUBLESHOOTING AND ERRORS ERROR CODES ON THE REMOTE CONTROL ERROR SYMPTOM POSSIBLE CAUSE CODE • No pilot within 30 sec. • No gas supply • Note: After 3 failed ignition sequences F06 • Air in pilot supply line is displayed. •... -
Page 25: Manuals And Guides
On this page you will find references to other manuals and video guides for our gas fireplaces. Scan the associated QR code to see the manuals and video guides. The manuals are available in other languages on RAIS’s website. APP AND WIFI MODULE... - Page 26 RAIS A/S Industrivej 20 DK-9900 Frederikshavn Denmark www.rais.com...
