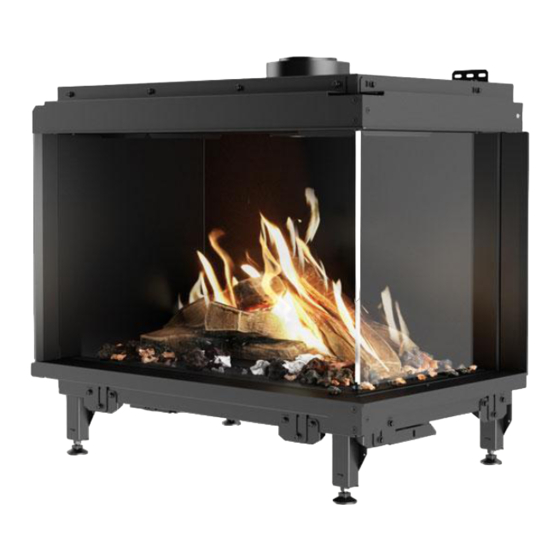

RAIS Visio 70 F Manual

RAIS Visio 70 F Manual

Arranging ceramic logs
Hide thumbs Also See for Visio 70 F:

Advertisement

Quick Links

ARRANGING CERAMIC "LOGS" - VISIO 70 F, LC/RC & 3S
Arranging ceramic logs - Visio 70 F, LC/RC & 3S
It is very important that you follow this when positioning ceramic "logs" and the
embers layer in the fireplace. Failure to carry this out correctly will cause the fireplace
to not burn optimally and soot to occur.
OPSTILLINGSAFSTANDE
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Visio 70 F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for RAIS Visio 70 F

  • Page 1 ARRANGING CERAMIC ”LOGS” - VISIO 70 F, LC/RC & 3S OPSTILLINGSAFSTANDE Arranging ceramic logs - Visio 70 F, LC/RC & 3S It is very important that you follow this when positioning ceramic “logs” and the embers layer in the fireplace. Failure to carry this out correctly will cause the fireplace to not burn optimally and soot to occur.
  • Page 2 IMPORTANT INFORMATION: CERAMIC “LOGS” AND THE EMBERS LAYER OPSTILLINGSAFSTANDE – OVN MED DREJEFOD Important information: Ceramic “logs” and the embers layer When arranging ceramic “logs” and the embers layer in the combustion chamber, it is important that they do not cover the pilot flame and its thermocouple, and ember material must not be placed under the pilot guard. Both thermocouples must be kept free of the embers layer.
  • Page 3 ARRANGING CERAMIC ”LOGS” AND EMBERS OPSTILLINGSAFSTANDE – OVN MED DREJEFOD Visio 70 F, LC/RC & 3S You will find these ceramic logs in the package: NB! Should not be used for this model Procedure: 1. S tart by positioning log no. 4 (1 cm from the back wall) as shown in the picture. 17 cm 17 cm...
  • Page 4 ARRANGING CERAMIC ”LOGS” AND EMBERS 2. N ow secure the two burners in the fireplace’s base plate. NB! For natural gas and city gas please position the secondary burners as described in the installation manual on page 28. For LPG gas the secondary burners are delivered with two rows of holes, and can be placed as both right and left burner. 3. P osition log no. 6 as shown in the picture. 5 cm 5 cm 11 cm...
  • Page 5 ARRANGING CERAMIC ”LOGS” AND EMBERS 4. P osition log no. 5 as shown in the picture. 4 cm 4 cm 5 cm 5 cm 5. Position log no. 1 (with the recess) over the right burner.
  • Page 6 ARRANGING CERAMIC ”LOGS” AND EMBERS 6. P osition log no. 2 (with the recess) over the left burner. 7. N ow the glass stones should be spread out in the gas fireplace. Meassure out 8 dl of glass stones in a meassuring cup.
  • Page 7 ARRANGING CERAMIC ”LOGS” AND EMBERS 8. S pread out the glass stones (8 dl in total) in the gas fireplace - over the LED lights. It is impor- tant that the glass stones are spread out in a thin layer that covers the holes in the bottom of the fireplace. 9. Now meassure out 1,5 l of embers (a mix of the grey and black chips).
  • Page 8 ARRANGING CERAMIC ”LOGS” AND EMBERS 10. S pread the embers across both the glass stones and the base plate with the holes. Place the filaments on the pilot area. NB! It is extremely important that you do not cover the pilot area and the holes there (see page 2). 11. E nsure that log no. 5 and log no. 6 do not touch log no. 1 and log no. 2. There should be space between them. 12. Mount the glass again. Scan the QR code to see a video of how to mount the glass.
  • Page 9 ARRANGING CERAMIC ”LOGS” AND EMBERS...
