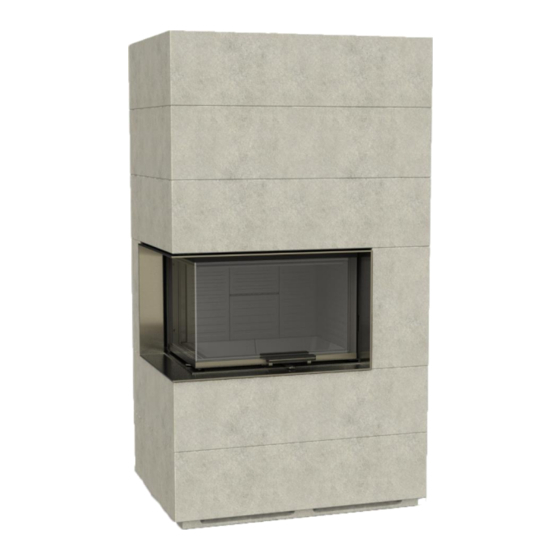

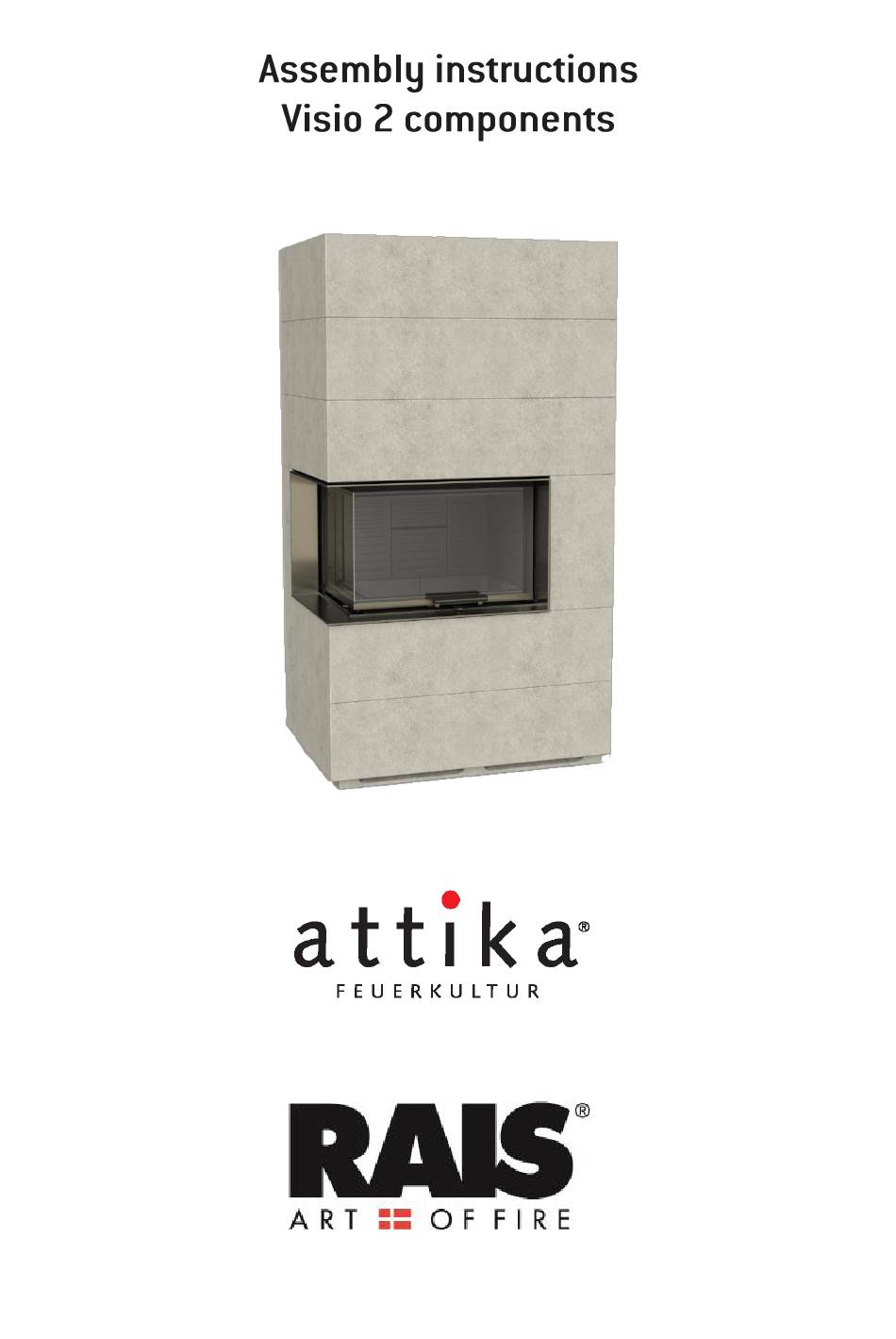

RAIS attika Visio 2 Assembly Instructions Manual
Components
Hide thumbs
Also See for attika Visio 2:
Related Manuals for RAIS attika Visio 2
Summary of Contents for RAIS attika Visio 2
- Page 2 1. Contents 1. Contents ......................... 2. Principle ........................2 3. General information ....................3-7 4. Parts list ........................8 5. Assembly ........................ 9-17 6. Technical drawing ..................... 18 2. Principle All instructions provided with products must be followed. Damage occurring as a result of failure to follow these instructions is not covered by the guarantee, and no replacement parts can be claimed for such damage.
-
Page 3: General Information
The installation and operating instructions must be adhered to. RAIS/Attika cannot be held liable for incorrect installation or irresponsible operation. - Page 4 Attika Feuer AG’s warranty provision. Ordering spare parts: When requesting spare parts, mark the damaged area on the packing label enclosed and RAIS A/S take a photo of the damage. Send the photo and packing label /Attika Feuer AG.
- Page 5 General safety instructions Heat energy is released by the burning of fuel, leading to intense heating of the surfaces, the fire-chamber doors, the door and operating handles, the viewing window, the flue pipe and, where applicable, the front wall of the stove. Do not touch these parts without the relevant protective clothing or aids (heat-resistant gloves or other means of actuation).
- Page 6 Types Stoves self-closing combustion chamber doors can be connected to a chimney already used for other stoves and cookers, unless the flue pipe dimension according to EN 12831 dictates otherwise. Stoves with self-closing doors must always be operated with the combustion chamber closed –...
- Page 7 Breakthroughs and outbreaks Breakthroughs for the flue-pipe connection, air grids or other components in the chimney cladding must be created on site. They must be created applying extreme caution, to prevent breakage of the components. Damage caused by improper work practices is not covered by the warranty. Creating the breakthroughs with a drill: Mark the requisite outbreaks on the parts.
