MAIN COMPONENTS

Structure
Realized in galvanized steel sheet, thermally and acoustically
insulated by self-extinguishing panels class 1.
Height reduced to facilitate installation in a horizontal position,
in false ceilings.
The bearing structure contains the tank for collecting and dis-
charging condensate.
Heat exchanger
High efficiency standard with 3 rows, but also available with 4
rows upon request, heat exchangers are made of copper tube and
alluminium fins secured to the tubes by mechanical expansion.
It is fitted with brass manifold and an air valve.The heat exchanger,
usually with left hand water connections can be turned by 180°.
Available upon request high efficiency heat exchanger optimized
for district cooling application.
Fans
Double suction centrifugal fans made with ABS or aluminium,
with statically and dynamically balanced forward-curving blades,

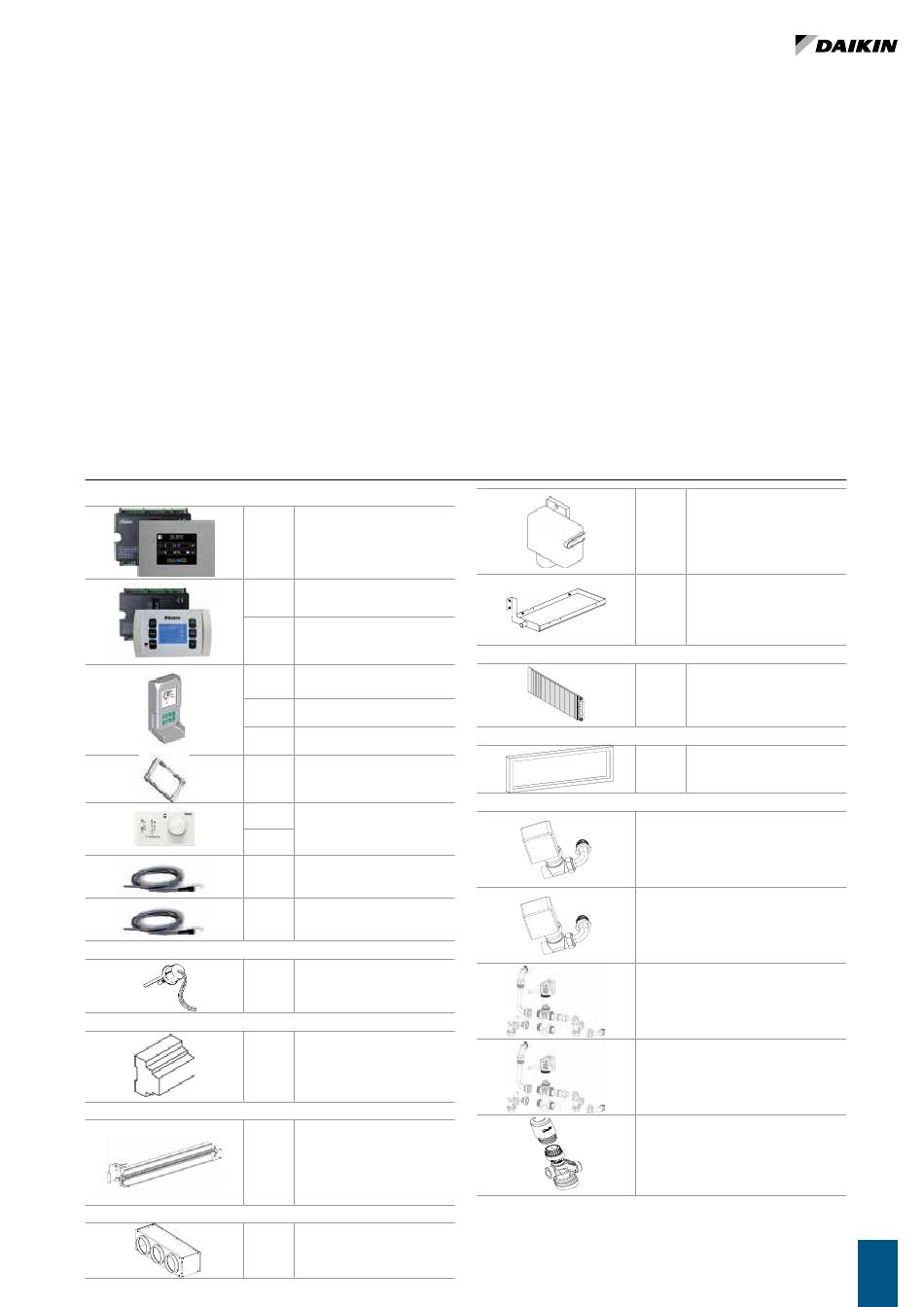

ACCESSORIES

Electronic microprocessor control panels with display
FWTOUCH
FWECSAP Circuit board for FWECS control
FWECSAC
FWEC1A
FWEC2A
FWEC3A
FWFCKA
FWEC2T
FWEC4T
FWHSKA
FWTSKA
Electromechanical control
YFSTA6
Power interface and regulating louver controllers
EPIMSB6
Electrical heating elements
EH
Accessories
PLT**N
PLI**C
User interface with display in Dibond
matereal available in:
FWTOUCHB-Black
FWTOUCHW-White
FWTOUCHG-Grey
User interface with display for FWECS
controller
FWEC1A Microprocessor control with display
FWEC2A Microprocessor control with display
FWEC3A Microprocessor control with display
FWEC*A control spacer for wall mounting
Electronic controller FWEC2T for 2 pipes
system, FWEC4T for 4 pipes system
Humidity sensor for FWEC2A/3A, FWECS
Water sensor for FWEC1A/2A/3A and
FWECS controllers
Fan stop thermostat
Power interface for connecting in parallel
up to 4 fun coil units to the one controller
Heating element with installation kit, relay
box and safety devices
Plenum can be installed either on the air
intake or air delivery of the unit.
PLT**C is insulated plenum
PLT**N isn't insulated plenum
directly coupled to the electric motor.
Electric motor
Single-phase asynchronous multi-speed electric motor with per-
manently connected capacitor and thermal protector, mounted
on vibration-damping supports.
Air filter
Washable air filter, made of acrylic fibre, filtration class G3, ap-
plied on the air intake; may be pulled out from below.
Air inlet
Air intake from the front or bottom of the unit, according to sys-
tem requirements.
Installation example
The bearing structure allows to combine a large range of acces-
sories in suction and air delivery in order to obtain the optimized
unit configuration.
CDRP1A
EDPD
Additional coil
EAHD**A Additional heat exchanger
Filter
FG4T*AA
Valves
2-way valves, ON/OFF or MUDULATING actuator, 230 V
or 24 V power supply, hydraulic kit, for additional heat
exchanger
2-way valve, ON/OFF or MODULATING actuator, 230 V or
24 V power supply, hydraulic kit, for main heat exchanger
3-way valves, ON/OFF or MODULATING actuator, 230 V
or 24 V power supply, hydraulic kit, for additional heat
exchanger
3-way valves, ON/OFF or MODULATING actuator, 230 V or
24 V power supply, hydraulic kit, for main heat exchanger
2-way valves pressure independent, ON/OFF actuator,
230 V power supply, hydraulic kit, for main and additional
heat exchanger
Condensate drainage pump kit
Auxiliary water drip tray
Air filter G4
UT66002764-07
