EVAL-LTC7067-AZ
150V Dual High-Side MOSFET Gate
Driver

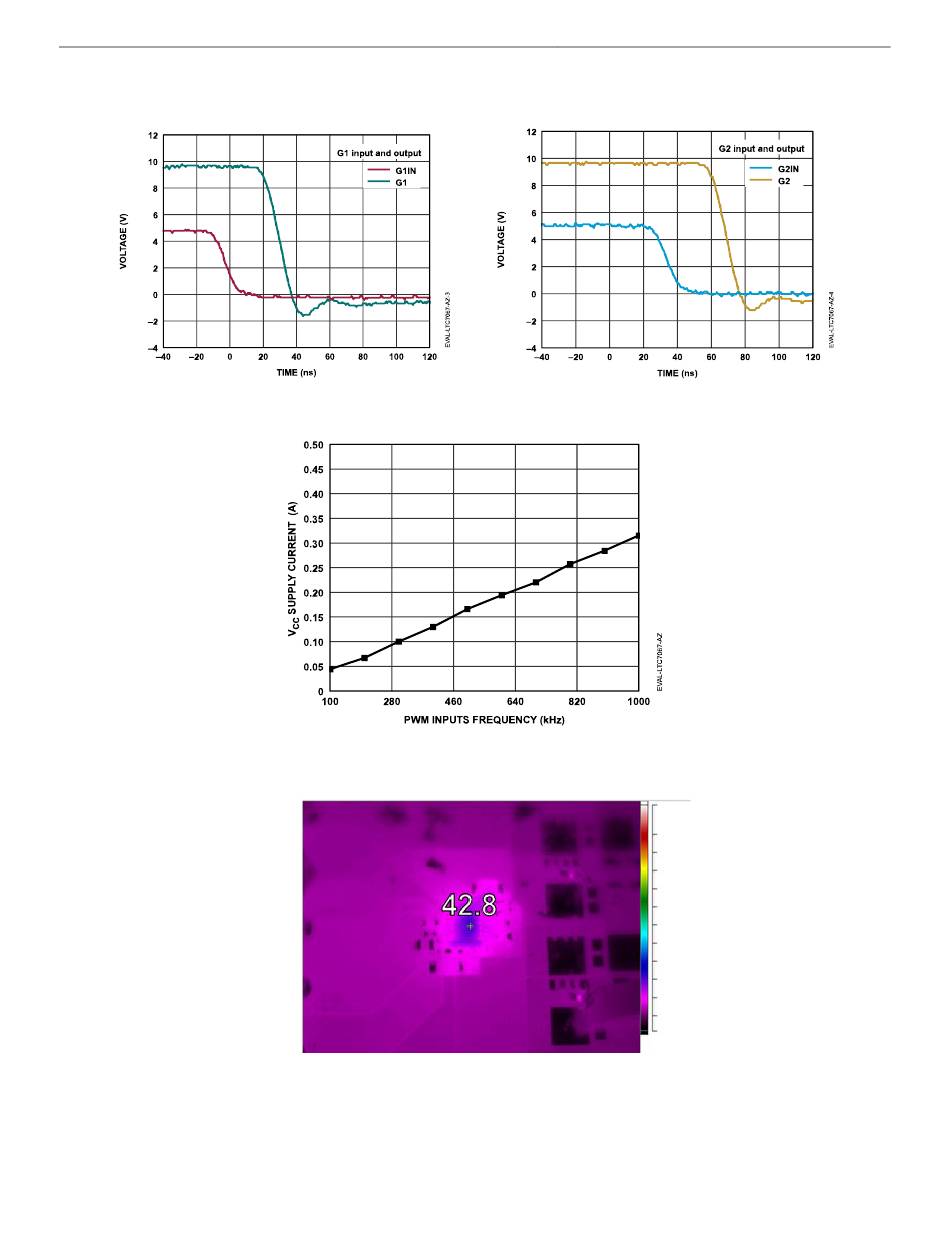

Figure 4. G1IN and G1 Falling, C
= 3.3nF
Figure 5. G2IN and G2 Falling, C
= 3.3nF
LOAD
LOAD
Figure 6. V
Supply Current vs. PWM Inputs Frequency, V
= 10V, C
= 3.3nF
CC
CC
LOAD
,
Figure 7. Thermal Picture at V
=10V
Both G1 and G2 are running at 2MHz, C
= 3.3nF, no forced air flow
CC
LOAD
