FLIR Digimerge DBV44TL Quick Start Manual

Contents

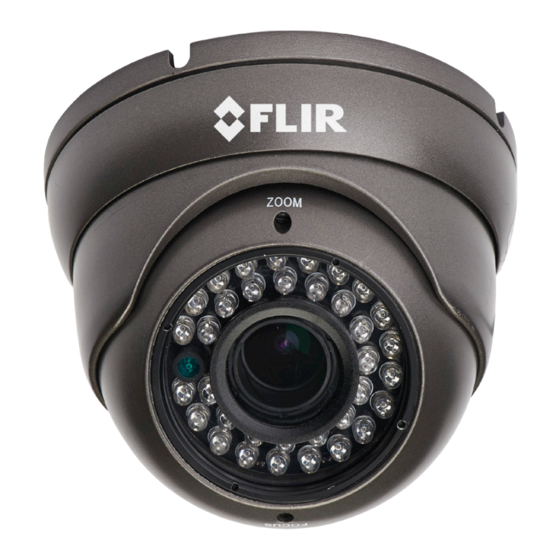

1 x Weatherproof IR Dome
Camera with Varifocal Lens
1 x Allen Key
4 x Mounting Screws
2 x Rubber Weatherproofing Plugs
WARNING - A REGULATED UL / CSA APPROVED 12V DC power
supply is REQUIRED for use with this camera. Use of a non-regulated,
non-conforming power supply can damage this product and voids the
warranty.
Features
• Ultra Resolution 1/3" Image Sensor / 600 TVL
• True Day / Night with Mechanical ICR
• 2.8-12mm Varifocal Lens
• Cold Climate Capability (Operates to -22°F/ -30°C)
• 90ft (27m) IR Night Vision*
• IP66 Weatherproof Rating**
• 3 Axis Design for Wall / Ceiling Mount
• External Zoom / Focus Adjustment
• 12V DC Operation
* IR Illumination range under ideal conditions. Objects at or beyond
this range may be partially or completely obscured, depending on the
camera application
** Not intended for submersion in water
Safety Precautions
• Use an appropriate low voltage power cable to prevent
fire or electrical shock.
• Make sure to install the camera in an area that can
support the camera weight.
• There are no user serviceable parts inside the camera.
Please do not disassemble the camera.
• Do not clean the lens cover with an abrasive cleaning
material. Please use a soft cloth to clean the lens cover.
All manuals and user guides at all-guides.com
IT'S ALL ON THE WEB!
Product Information Specification Sheets
Quick Start Guides
User Manuals
Latest News Video Tutorials & Demos
VISIT
www.digimerge.com
Digimerge Technologies Inc.
Copyright © 2013
As our products are subject to continuous improvement, Digimerge
reserves the right to modify product design, specifications and prices,
without notice and without incurring any obligation. E&OE
ULTRA RESOLUTION VARIFOCAL
OUTDOOR IR DOME CAMERA
MODEL: DBV44TL
QUICK START GUIDE
English Version 2.0
www.digimerge.com
