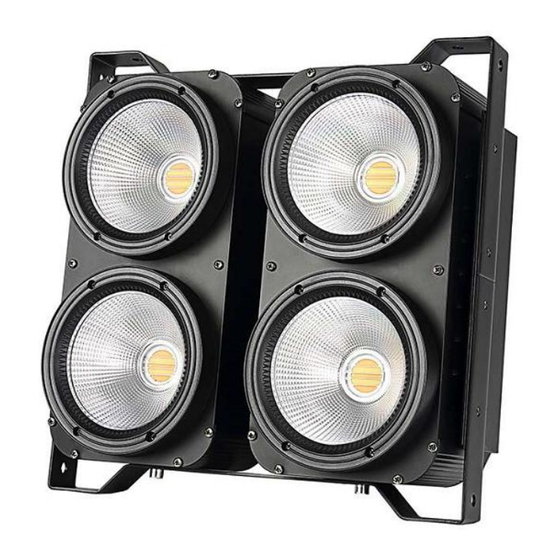

Hybrid HSS COB4B User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
Please read the instructions carefully before use

Advertisement

Table of Contents
loading

Related Manuals for Hybrid HSS COB4B

Summary of Contents for Hybrid HSS COB4B

  • Page 1 User Manual Please read the instructions carefully before use...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Safety Instructions 2. Technical Specifications 3. Installation 4. How to set up the unit 5. How to control the fixture 6. DMX512 Configuration 7. DMX512 Connections 8. Troubleshooting 9. Fixture Cleaning...

  • Page 3: Safety Instructions

    1. Safety Instructions Please read the instructions carefully which include important information about the installation, operation and maintenance. WARNING Please keep this User Manual for future consultation. If you sell the fixture to another  user, be sure that they also receive this instruction booklet. Unpack and check carefully there is no transportation damage before using the fixture.

  • Page 4: Technical Specifications

    2. Technical Specifications ● DMX modes: 12 channels ● 4 push button with 4 Digital LED Display ● Auto, Sound Actived,DMX512,Master/Slave ● Power Supply:AC90V-250V/50-60Hz ● Power Consumption:410W ● Light source: 4pcs 100 Watt Cool White +Warm White Ultra Bright LEDs ●...

  • Page 5: How To Control The Fixture

    Button: MENU To select the programming functions To go forward in the selected functions DOWN To go backward in the selected functions ENTER To confirm the selected functions 4.2 Main Function d001 001-512 DMX Address Cool White Warm White Full on Jump change mode 1 Auxx Jump change mode 2...

  • Page 6: Dmx512 Configuration

    set the address for the first four units. Unit1 Unit2 Unit3 Unit4 Channels mode Address Address Address Address CH12 B. Master/Slave operation The fixture will allow you to link 16 fixtures together and operate without a controller. In Master/Slave mode, the first fixture will control the others to give an automatic, sound activated, synchronized light show.

  • Page 7: Dmx512 Connections

    7. DMX512 Connections The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels. 1. If you are using a controller with a 5 pin DMX output, you need to use a 5 to 3 pin adapter-cable. 2.

  • Page 8: Fixture Cleaning

    suggestions for easy troubleshooting: A. The fixture does not work, It has no light 1. Check the connection of power and main fuse. 2. Measure the main power supplys voltage on the main connector. B. Not responding to DMX controller 1.
