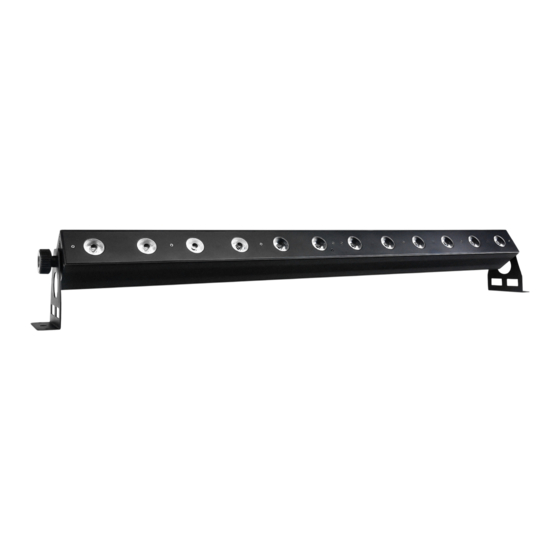

- Page 1 HSF12.4 6/8/12/52 CHANNEL LED PIXEL BAR USER MANUAL...
-
Page 3: Safety Introductions
WELCOME Congratulations on your purchase of the HSF 12.4 Hybrid 6/8/12/52 channel LED Pixel Bar, engineered and designed by Hybrid. Please read the instructions carefully which includes important information about the installation, operation and maintenance. SAFETY INTRODUCTIONS Please keep this User Manual for future consultation. If you sell the fixture to another user, be sure that they also receive this instruction booklet. -
Page 4: Technical Specifications
WARNING To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture. Do not open the unit within five minutes after switching off. The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged. -
Page 5: Installation
USER MANUAL - HMH12.4 PROFESSIONAL LED PIXEL BAR INSTALLATION The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. Always ensure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. - Page 6 MAIN FUNCTION CHART Display Value Noted Addr A001-A512 DMX Address select CHnd 6channel mode 8channel mode 12Ch 12channel mode 52Ch 52channel mode SLnd nASt Master mode Slave mode 1 Slave mode 2 SoUn SO0-SO16 Sound mode Se0 - Se99 Sound Sensitive Auto Aut1-Aut16 Auto mode...
-
Page 7: How To Control The Fixture
USER MANUAL - HMH12.4 PROFESSIONAL LED PIXEL BAR HOW TO CONTROL THE FIXTURE 1. Black Out Turn on /off 2. Auto Auto show 3. Sound Sound active 4. Strobe Strobe mode 5. Fade/Jump Speed adjust 6. Sensitivity Sound sensitivity adjust 7. -
Page 8: Dmx 512 Configuration
DMX512 CONFIGURATION 6 channels mode: Channel Value Function 0-255 RED dimmer 0-255 GREEN dimmer 0-255 BLUE dimmer 0-255 WHITE dimmer 0-247 Auto program 248-255 Sound mode 0-255 Chase speed from slow to fast 8 channels mode: Channel Value Function 0-255 Master dimmer 0-255 Strobe... - Page 9 USER MANUAL - HMH12.4 PROFESSIONAL LED PIXEL BAR 0-255 BLUE1 dimmer 0-255 WHITE1 dimmer 0-255 RED2 dimmer 0-255 GREEN2 dimmer 0-255 BLUE2 dimmer CH10 0-255 WHITE2 dimmer CH11 0-247 Auto program 248-255 Sound mode CH12 0-255 Chase speed from slow to fast 52 channels mode: Channel Value...
- Page 10 CH18 0-255 WHITE4 dimmer CH19 0-255 RED5 dimmer CH20 0-255 GREEN5 dimmer CH21 0-255 BLUE5 dimmer CH22 0-255 WHITE5 dimmer CH23 0-255 RED6 dimmer CH24 0-255 GREEN6 dimmer CH25 0-255 BLUE6 dimmer CH26 0-255 WHITE6 dimmer CH27 0-255 RED7 dimmer CH28 0-255 GREEN7 dimmer...
-
Page 11: Dmx512 Connections
USER MANUAL - HMH12.4 PROFESSIONAL LED PIXEL BAR DMX512 CONNECTIONS The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels 1. If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin adapter-cable. -
Page 12: Troubleshooting
TROUBLESHOOTING FFollowing are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The fixture does not work, no light 1. Check the connection of power and main fuse. 2. Measure the mains voltage on the main connector. B. -
Page 13: Fixture Cleaning
USER MANUAL - HMH12.4 PROFESSIONAL LED PIXEL BAR FIXTURE CLEANING The cleaning of internal must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the fixture’s optics. - Page 16 w ww.v iva af ri k a .co. z a...
