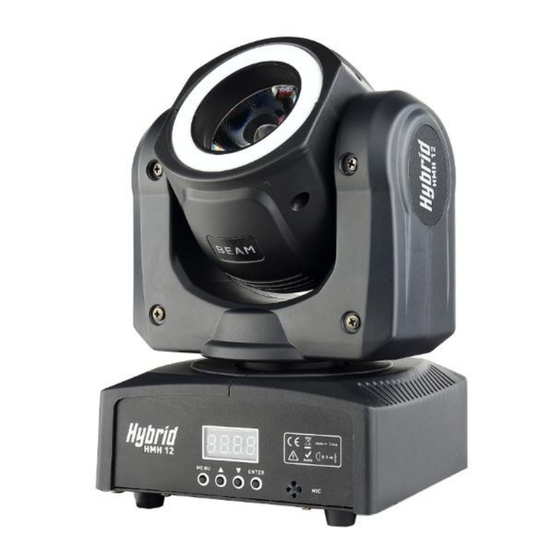

Hybrid HMH 12 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
User Manual
Please read the instructions carefully before use

Advertisement

loading

Related Manuals for Hybrid HMH 12

Summary of Contents for Hybrid HMH 12

  • Page 1 User Manual Please read the instructions carefully before use...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Safety Instructions 2. Technical Specifications 3. Installation 4. How to set up the unit 5. How to control the unit 6. DMX-512 Configuration 7. DMX-512 Connections 8. Troubleshooting 9. Fixture Cleaning...

  • Page 3: Safety Instructions

    Safety Instructions Please read the instructions carefully which include important information about the installation, operation and maintenance. WARNING Please keep this User Manual for future consultation. If you sell the fixture to another  user, be sure that they also receive this instruction booklet. Unpack and check carefully that there is no transportation damage before using the ...

  • Page 4: Technical Specifications

    2. Technical Specifications Power supply:AC100-240V,50/60Hz  Power consumption:75W  Light source:40W RGBW 4 in 1 LEDs  Effects: 12Pcs RGB 3IN1 SMD 5050 LED  Life Time:50,000 hours  Beam angle:6°  Control panel:4 Digital LED display figures  Control mode: sound activation, auto, master/slave, DMX512 ...

  • Page 5: How To Set Up The Unit

    4. How to set up the unit Main Function Chart...
  • Page 6 5. How to control the fixture There are two ways to control the fixture A. Universal DMX controller B. Master/Slave operation A. Universal DMX controller The fixture can be set to the DMX address remotely by the universal DMX controller. First, you need to program two scenes into a chase, then link the fixtures to the universal DMX controller.

  • Page 7: Dmx512 Configuration

    Configuration 6. DMX512 16CH Mode Function Value 000-255 Pan 0° ~ 540° Pan Fine 000-255 Tilt 000-255 Tilt 0° ~ 270° Tilt Fine 000-255 Pan& Tilt Speed 000-255 Pan/Tilt speed from fast to slow Dimmer 000-255 Dimmer 0 ~ 100% 000-008 No Function Strobe 009-255 Strobe slow to fast...
  • Page 8 30CH Mode Function Value 000-255 Pan 0° ~ 540° 000-255 Pan Fine 000-255 Tilt 0° ~ 270° Tilt 000-255 Tilt Fine 000-255 Pan/Tilt speed from fast to slow Pan& Tilt Speed 000-255 Dimmer 0 ~ 100% Dimmer 000-008 No Function Strobe 009-255 Strobe slow to fast 000-255 Dimmer 0 ~ 100%...

  • Page 9: Dmx512 Connections

    000-255 Dimmer 0 ~ 100% 5050 B4 000-255 Dimmer 0 ~ 100% 5050 R5 000-255 Dimmer 0 ~ 100% 5050 G5 000-255 Dimmer 0 ~ 100% 5050 B5 000-255 Dimmer 0 ~ 100% 5050 R6 000-255 Dimmer 0 ~ 100% 5050 G6 000-255 Dimmer 0 ~ 100% 5050 B6...

  • Page 10: Troubleshooting

    Connect the fixture together in a “daisy chain” plug the XLR cable from the output of the fixture to the input of the next fixture. The cable cannot be branched or split to a “Y” cable. Inadequate or damaged cables, soldered joints or corroded connectors can easily distort the signal and shut down the system.

  • Page 11: Fixture Cleaning

    B. Not responding to DMX controller 1. DMX LED should be on, If not, check DMX connectors, cables to see if it is linked properly. 2. If the DMX LED is on and there is no response to the channel, check the address settings and DMX polarity.
