Summary of Contents for Hybrid HSS 12.6

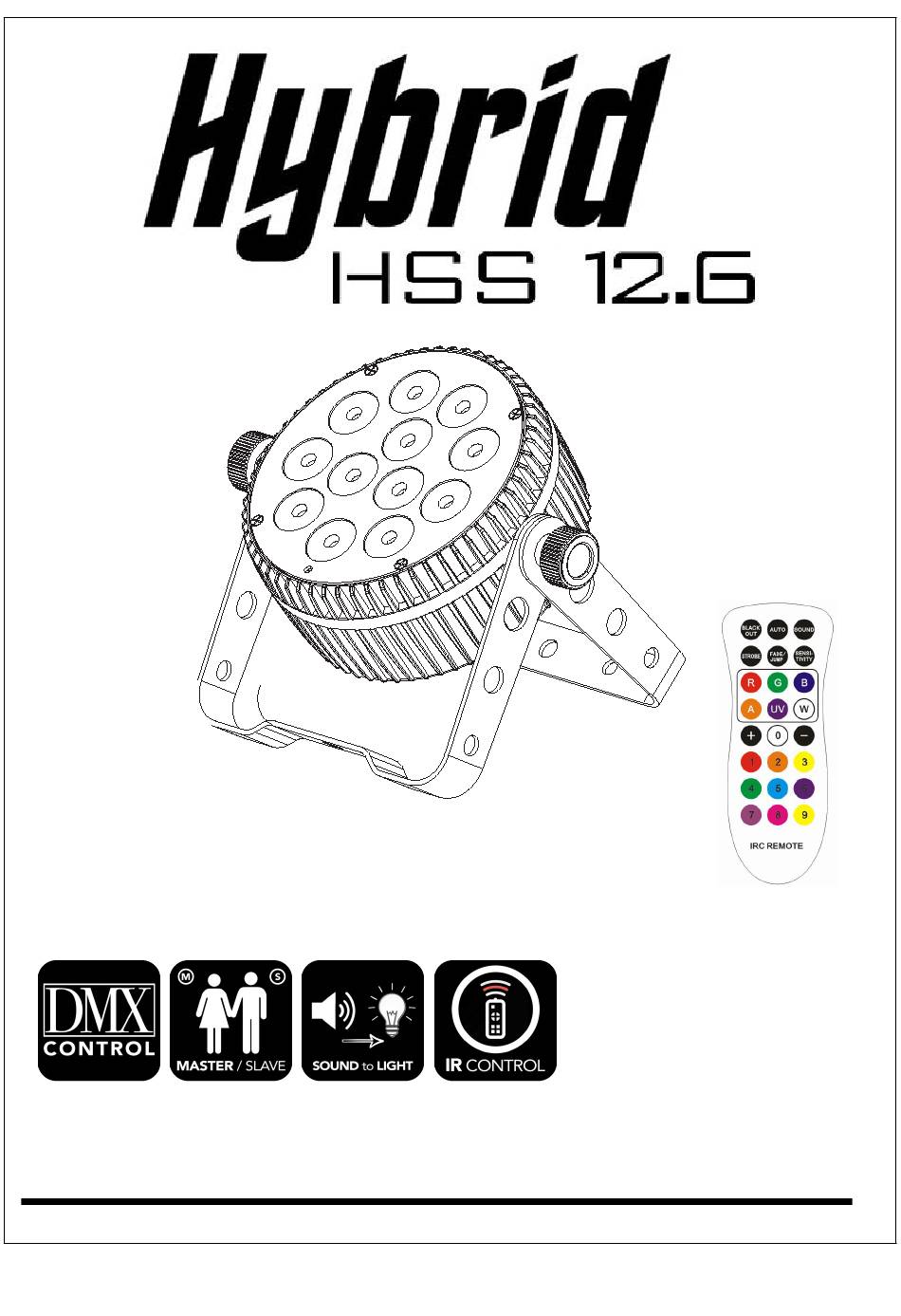

- Page 1 User Manual Please read the instructions carefully before use...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Safety Instructions 2. Technical Specifications 3. Installation 4. How to set the unit 5. How to control the fixture 6. DMX512 Configuration 7. DMX512 Connections 8. Trouble shooting 9. Fixture Cleaning... - Page 3 1. Safety Introductions Please read the instructions carefully which includes important information about the installation, operation and maintenance. WARNING Please keep this User Manual for future consultation. If you sell the fixture to another user, be sure that they also receive this instruction booklet. Unpack and check carefully there is no transportation damage before using the fixture.
-
Page 4: Technical Specifications
Caution There are no user serviceable parts inside the fixture. Do not open the housing or attempt any repairs yourself. In the unlikely situation, your unit may require service, please contact your nearest dealer. 2. Technical Specifications Slim PAR 6in1 IR With 12pcs 10W(6 IN 1 RGBWAV) color high brightness LEDs ... -
Page 5: How To Control The Fixture
(3)No matter what the program in which mode,once to detect the DMX or SLAVE signal, the program will jump into DMX or SLAVE mode automatically. Then,if DMX or SLAVE signal was disconnect, the program will return to the original mode. 4.2 Main Function Chart 5. -
Page 6: Dmx512 Configuration
(9) B Blue dimmer in the dimming mode (10) A Amber dimmer in the dimming mode (11) UV Purple dimmer in the dimming mode (12) W White dimmer in the dimming mode (13) + Increase parameter(include strobe speed adjust,sound sensitivity adjust,color select,adjust the brightness of R,G,B,W,A,UV Gradual change speed adjust,jump change speed adjust). -
Page 7: Dmx512 Connections
0-59 Custom control by DMX512 60-119 Static mode CH10 120-179 Jump change mode 180-239 Gradual change mode 240-255 Sound mode 7. DMX512 Connections The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels. 1. If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin adapter-cable. -
Page 8: Troubleshooting
6. 3 pin XLR connectors are more popular than 5 pin XLR. 3 pin XLR: Pin1: GND, Pin2: Negative signal (-), Pin3: Positive signal (+) 5 pin XLR: Pin1: GND, Pin2: Negative signal (-), Pin3: Positive signal (+) Pin4/5: Not Used. 8. - Page 9 frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the fixture’s optics. Clean with soft cloth using normal glass cleaning fluid. Always dry the parts carefully. ...
