- Page 1 HSS 6.4B BATTERY POWERED LED LIGHT USER MANUAL...
-
Page 3: Safety Introductions

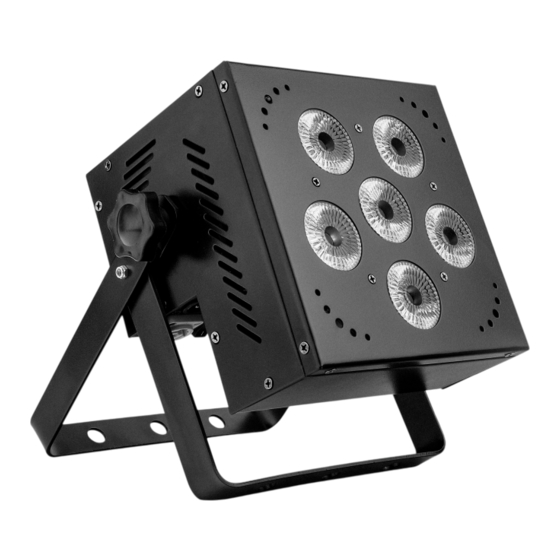

WELCOME Congratulations on your purchase of the HSS 6.4B Hybrid Battery Powerd LED light, engineered and designed by Hybrid. Please read the instructions carefully which includes important information about the installation, operation and maintenance. SAFETY INTRODUCTIONS Please keep this User Manual for future consultation. If you sell the fixture to another user, be sure that they also receive this instruction booklet. -
Page 4: Technical Specifications
WARNING To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture. Do not open the unit within five minutes after switching off. The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged. -
Page 5: Installation
USER MANUAL - HSS 6.4B PROFESSIONAL LED LIGHT INSTALLATION The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. Always ensure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s... - Page 6 FOR BATTERY FUNCTION AND CHARGE The unit has the function of battery powered. The button for battery and charge is set on the rear panel. It is showed as the following picture, and the function is described as below. 1. LCD display 7.
-
Page 7: How To Control The Fixture
USER MANUAL - HSS 6.4B PROFESSIONAL LED LIGHT MOST IMPORTANT FIRST CHARGE THE FIXTURES FOR 6-8 Hours on the First Charge before use. Plug in Power cord. Turn off Power Switch to charge. HOW TO CONTROL THE FIXTURE 1. Black Out Turn on /off 2. -
Page 8: Dmx 512 Configuration
DMX512 CONFIGURATION 4 channels mode: Channel Value Function 0-255 RED dimmer 0-255 GREEN dimmer 0-255 BLUE dimmer 0-255 WHITE dimmer 8 channels mode: Channel Value Function 0-255 Master dimmer 0-255 RED dimmer 0-255 GREEN dimmer 0-255 BLUE dimmer 0-255 WHITE dimmer 0-255 Strobe from slow to fast Custom control by DMX512... - Page 9 USER MANUAL - HSS 6.4B PROFESSIONAL LED LIGHT DMX512 CONFIGURATION DMX512 Shows Sound Color Help A001- Auto Color Sound Mode Custom DMX Channel Name A512 (Speed 1-99) (Sens1-100) color 4CH/8CH 4 color Auto Fade Sound Static 2.4G wireless Version: (Speed 1-99)
-
Page 10: Dmx512 Connections
DMX512 CONNECTIONS The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels 1. If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin adapter-cable. 2. Connect the fixture together in a “daisy chain” by XLR plug cable from the output of the fixture to the input of the next fixture. -
Page 11: Troubleshooting
USER MANUAL - HSS 6.4B PROFESSIONAL LED LIGHT TROUBLESHOOTING Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The fixture does not work, no light 1. Check the connection of power and main fuse. -
Page 12: Fixture Cleaning
FIXTURE CLEANING The cleaning of internal must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the fixture’s optics. Clean with soft cloth using normal glass cleaning fluid. - Page 13 USER MANUAL - HSS 6.4B PROFESSIONAL LED LIGHT PAGE 13...
